Specifications
ATC wood engraver cnc router TJ13251.4.5KW water cooling spindle
2.thick whole steel structure
3.vacuum table

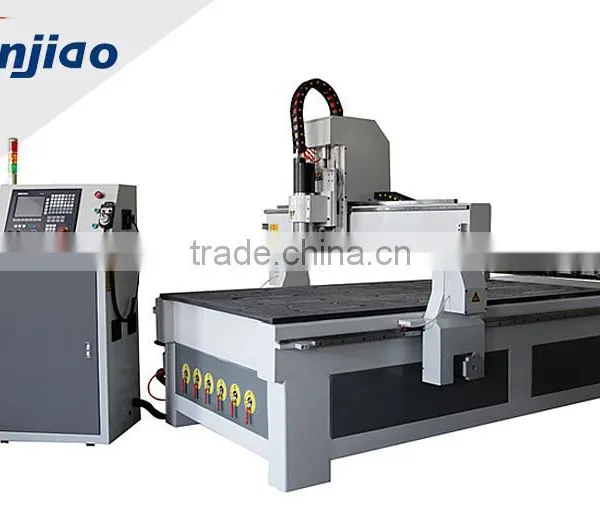

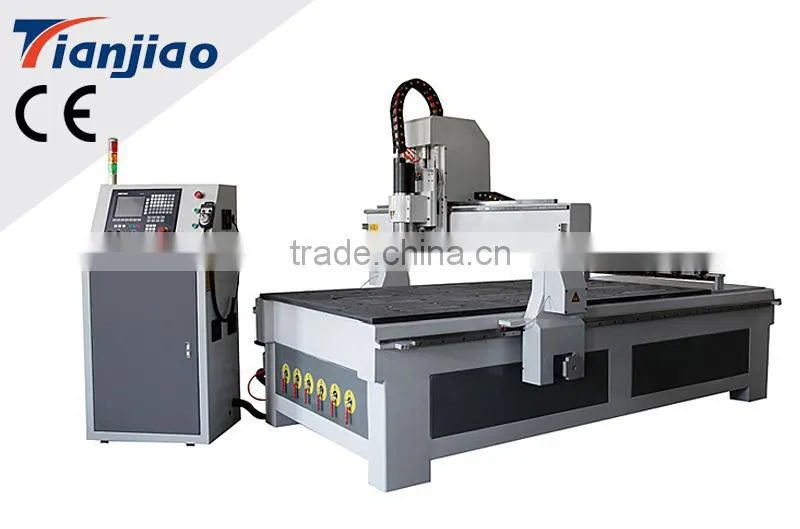

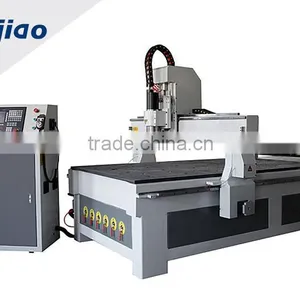

Linear Type Auto Tool Change Woodworking Machine TJ1325
1.4.5KW water cooling spindle
2.thick whole steel structure
3.vacuum table
This woodworking machine is economical type which with whole steel structure
1. The max speed is up to 35 meters/min, engraving speed is 25 meters/min
2. Adopting easy cooperated DSP control system, it is convenient to operate.
3. Unique intelligent budget principle make the motors offerring the high speed, so it could make the straight and smooth curves.
4. Double motors to drive Y axis
5. High strength steel tube jointing.
6. The table equipped with 6 divided vacuum zones.
7. Optional: auto tool CHANGER
Italy air cooling spindle
Germany oil-free vacuum pump
Technical Parameter:
NO. Description |
Parameter |
|
1 |
Table size |
1480×3000mm |
2 |
X,Y working area |
1300×2500mm |
3 |
Z working area |
200mm |
4 |
Max. speed |
35m/min |
5 |
Working Speed |
25m/min |
6 |
Resolution/ work delicacy |
0.02mm |
7 |
Repositioning Accuracy |
0.05mm |
8 |
Interface |
USB |
9 |
Command |
G code*.u00*.mmg* plt |
10 |
Surroundings for software |
windows98/2000/xp |
11 |
Control system |
DSP control system |
12 |
Power(spindle power is not included) |
8.87KW |
13 |
Working voltage |
AC380V 50Hz |
14 |
Spindle power (domestic made) |
4.5KW water cooling spindle |
15 |
Spindle rotating speed |
0-24000rpm/min |
16 |
Motor |
Stepper |
