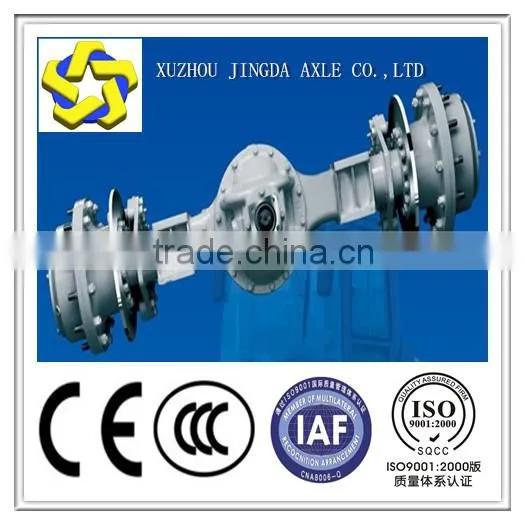

Help CenterGYQ1550 Road Roller AXLE for XCMG 15 Tons 3Y152J Three-wheeled Static Roller
Related Products
-
XCMG COMPACTOR ROLLER Axle GYL2290 Front Axle and GYL3090 Rear Axle Xcmg Spare Parts Xgma Liugong YutongUS$ 1 - 10,000MOQ: 1 Piece -
XCMG XS142J Mechanical Driving Road Roller Compactors AXLE CY1450 Xcmg Spare Parts Roller Spare PartsUS$ 1 - 10,000MOQ: 1 Piece
-
XCMG GYQ2700 COMPACTOR AXLE for XCMG XS262J 800351105 Hydraulic Single Drum Vibratory Roller AxleUS$ 1 - 10,000MOQ: 1 Piece
-
Chinese COMPACTOR AXLE 3Y252J for XGMA XCMG 25 Tons Grinding Roller Axle PartsUS$ 1 - 10,000MOQ: 1 Piece
-
XCMG Compactor Axles GYL3000 XCMG XP163 Tyred Roller Xuzhou Axle ManufacturerUS$ 1 - 10,000MOQ: 1 Piece
Specifications
1. BIGGEST axles supplier for construction machinery groups.2. Absolutely ORIGINAL.
3. high transmission efficiency
SPECIFICATION:
1. UNIQUE SUPPLIER for XCMG WHEEL LOADER AXLE 30-series and 40-series.
2. ALL KINDS of AXLES for vehicle brands such as XCMG XGMA YUTONG supplied, including WHEEL LOADER, ROLLER, GRADER and FORKLIFT etc.
3. BIGGEST AXLE Manufacturer in XUZHOU, made in China.
4. LEADING AXLES SUPPLIER for construction machinery enterprises .
5. Drive AXLES available for all Chinese TOP Construction Machinery Enterprises.
6. ALL SPARE PARTS for all XCMG AXLES of Wheel Loader, Roller, Grader And Forklift etc.
7. Absolutely ORIGINAL.
8. Perform reliably and cost competitively.
9. Do ALL types of AXLES as your draft.
Products |
|
Advantages |
|
Special services |
|
Delivery time |
|
Ports |
Any ports after negotiation |
AXLE DESCRIPTION:
1. With the double reduction transmission.
2. The main reducer adopts spiral bevel gear drive, large carrying capacity and high transmission efficiency.
3. Built-in ordinary bevel gear differential, simple structure and flexible differential.
4. Wheel reducer is the planetary transmission structure which is compact and reasonable with smooth output speed.
5. Axle housing adopts cast steel with good rigidity.
6. Caliper disc brake: high brake torque and reliable braking. Oil inlet size, installation numbers and position of the brake can be designed according to the demand of customers.
7. The input flange designed according to customer’s demand.
8. The color painting of drive axle assembly various from customer requirements.
9. Best suitable for 15 tons three-wheeled Static Roller.
10. Supporting: 3Y152J three-wheeled Static Roller.
MAIN TECHNICAL PARAMETERS:
Total Transmission Ratio |
22.52 |
Main Transmission Ratio |
5.286 |
Ratio Of The Planetary Reducer |
4.26 |
Maximum Input Torque |
2300N.m |
Rating Load |
19T |
Braking Oil Pressure |
10Mpa |
Single Brake Moment |
11000N.m |
Lubrication Type |
GL-5 85W/90 Gear lubricant |
SKYPE: jingda.axle1
