3 kw pheumatic ATC CNC Wooden Door Making Machine
1.Brief Introduction:
Smart cnc router with multi-functions , it can cut and engave non-metal material and also can configure water tank to engraving metal materials and marble stones .

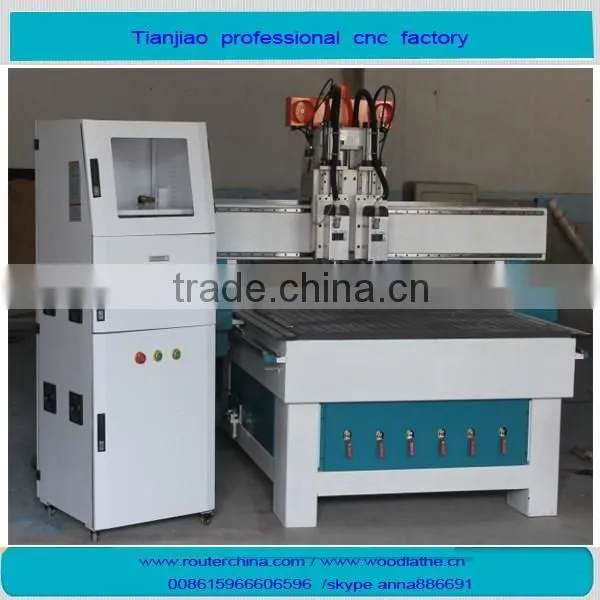

2.Pictures of CNC Wooden Door Making Machine:
3.Technical Parameters:
Model Name |
TJ1224 |
Working Area |
1200*2400*100mm |
Spindle Power |
3KW |
Lathe Bed |
cast or welded |
Lathe Table |
Vacuum table |
XYZ guide rail |
Square Rail |
XY transmission |
Rack Gears |
Z transmission |
Ball Screw |
Spindle |
Changzhou |
Inverter |
Rituo or other brands |
Driver |
Stepper motor |
Working Dictate |
G Code |
Operation Software |
DSP |
Typeset Software |
Artcut (English) |
Working Dictate |
G Code |
Processing accuracy |
<0.05mm/300mm |
Max Engraving Speed |
20,000mm/min |
Spindle rotational speed |
6000-24000rpm |
Tool Diameter |
Φ3.175mm,Φ6mm,Φ12.7mm |
Working Voltage |
AC220V/50Hz 380V/60Hz |
Optional Parts |
Dust collecting system |
Vacuum table with air pump | |
Mist sprayer and flume | |
Rotary device with Dia 80mm/100mm/200mm |
4.Features:
1) Internal cast lathe bed, solid and stable, without distortion.
2) Imported ball screws ensures stable and smooth movement of the machine.
3) Water-cooling brushless spindle, low noise, vigorous cutting strength
4) Subdivision driver ensures fast speed and high accuracy.
5) Dust-proof and water-proof design ensures the maintenance more easily.

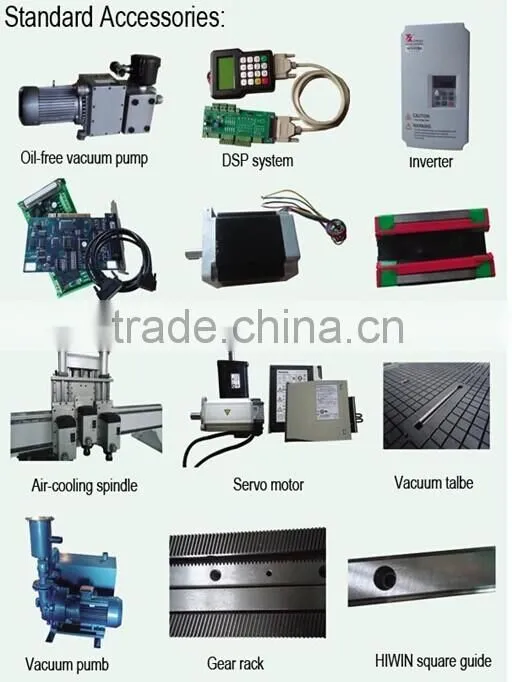

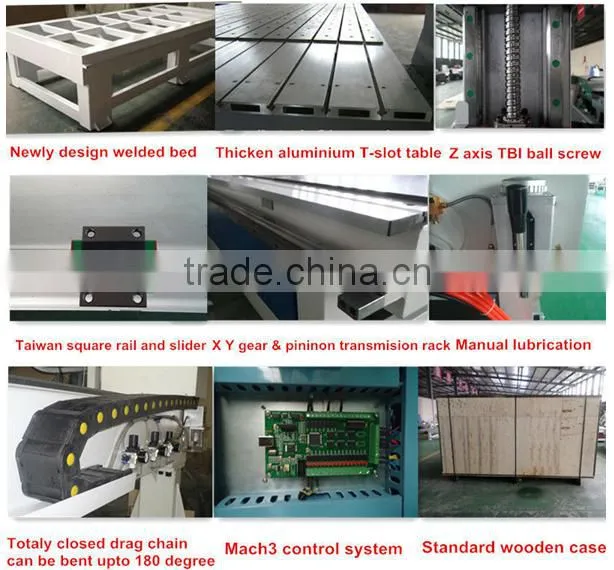

5.Main Parts Pictures:
6.Applicable Materials:
Wood, acrylic, doublecolor board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
7.Sample Show:
8.Packing Show:
9.Factory Show:
10.Warranty and After Sales Service:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. 2) Maintenance free of charge during lifespan. 3)Free training course at our plant. 4)We will provide the consumable parts at an agency price when you need replacement. 5)24 hours on line service each day, free technical support 6)Machine has been adjusted before delivery, operation disk is included.
11. Contact
anna
skype anna886691
whatsapp 8615966606596
wechat anna88669
