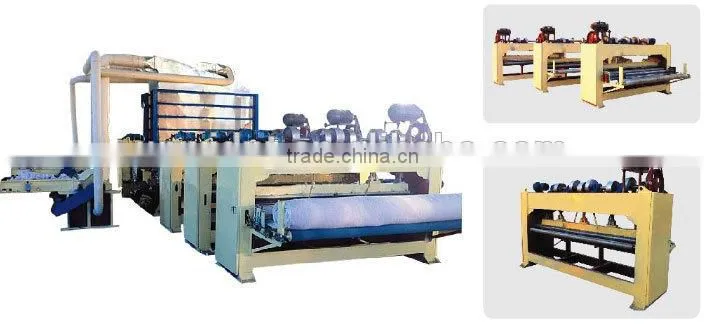

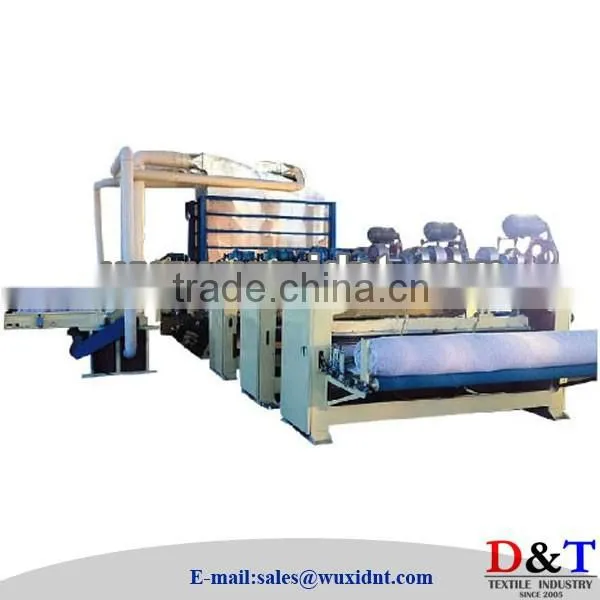

TEXTILE MACHINE YL-2 NEEDLE PUNCHING MACHINE
Appbcable to the producbon of general nonwoven fabrics stitched cotton,shoe matenal, handwoven fabric.
High-performance card machine for loosing the cotton send by the opemng machine,
and get rid of impurities seeds of cotton..Carding Machine is used for prosessing cotton fiber and chemical fiber etc.
There are three parts conshtute Cotton Carding Machine:
1.Main machine,including the cubing rolls,feed roller,in charge of receive cotton and fiber from opening macrune. Compress the cotton fiber in sheet and a certain sheet,then convey the cotton to the needle punching machine via roller.
2.Cotton box:above the main machine,in charge of recieve cotton from cotton box head and convey to main part of carding machine.
3.The head of cotton box :at the top of thIS machine,made from alurrunum.Connect With air blower by palstic pipe.
Its working principle is supplying the cotton or fiber with cotton box which is sent by the front procudure to loose them and get rid of impurities.
Technical data
Model |
YL-2 NEEDLE PUNCHING MACHINE |
Machine width(mm) |
2100-4500 |
Output(kg/h) |
100-250 |
Motor for convery the cotton(kw) |
7.5 |
Motor for control the speed(kw) |
1.1 |
Machine width(mm) |
2000-8500 |
Stitching density(s/m) |
4000-6000 |
Stitching frequency(n/min) |
400-650 |
General power(kw) |
9-31 |
