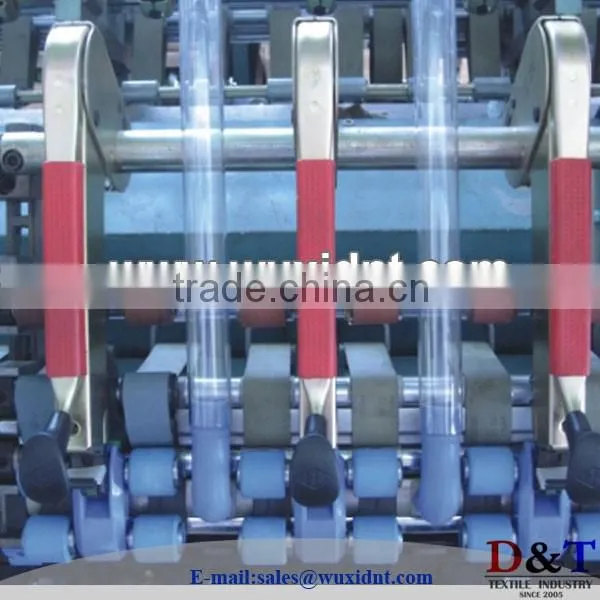

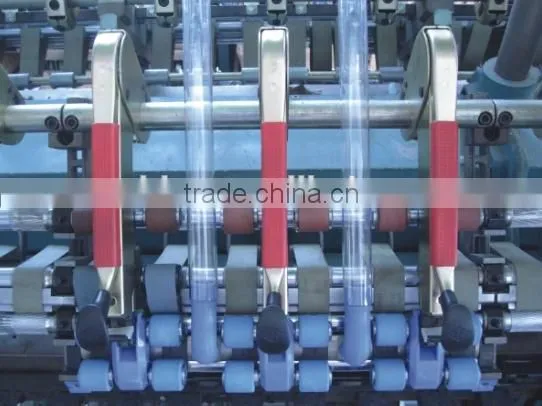

Four-Roller Compact Spinning System
Main characteristics of construction
1.Adopt Four-roller compact spinning aprons,output rollers,idle gears and grid laps to transmit energeticly.
2.Negative pressure system adopts main fan and main air passage,which is installed with filter device
to prevent the work shop being polluted second time.
3.Good comfiguration and allocation of negative pressure system.Good constance of suction air from
different passage.
4.The suctuion mouth of special model pipe is well designed to gather the strand of fibres.
5.Adopt inverter technology to controlthe negative pressure when spinning different yarn count.
6.Good consistence of grip lap’s tension device provides grip lap’s stable running.
7.Compact spinning negative pressure is controled by inverters,which guarantees
stable pressure during spinning.
8.Automatic control negative pressure is stable.Facilities automatic level increased.

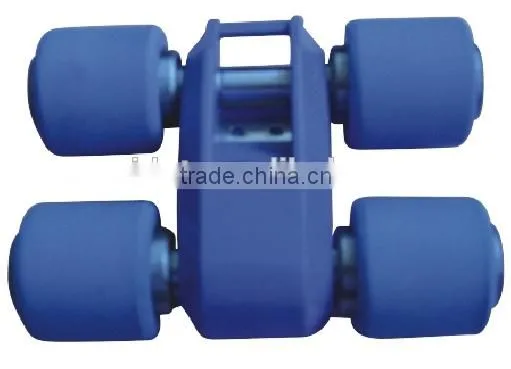

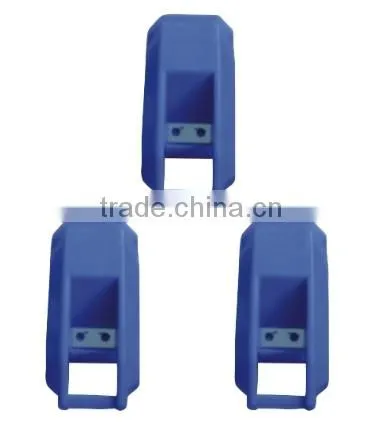

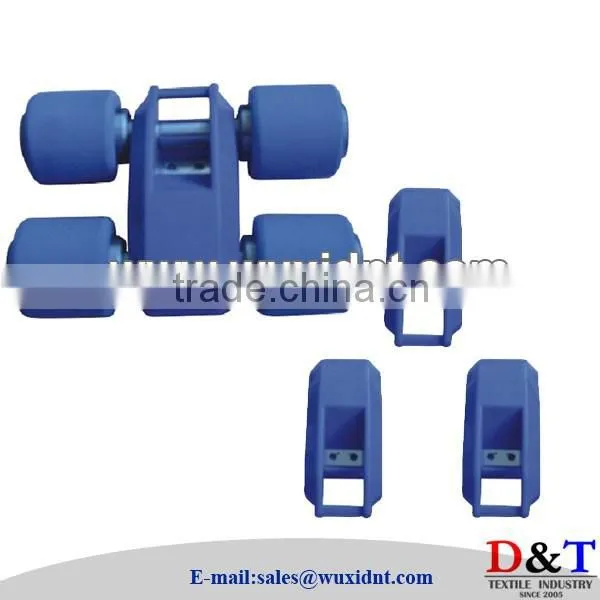

Apron and support combined piece
Adopting regular apron on ring frame machines’ original cradle to achieve stable running and reach the
requirement of compact spinning.

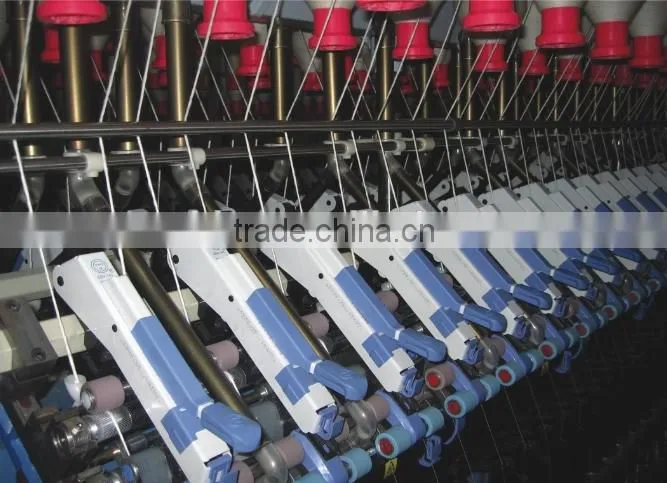

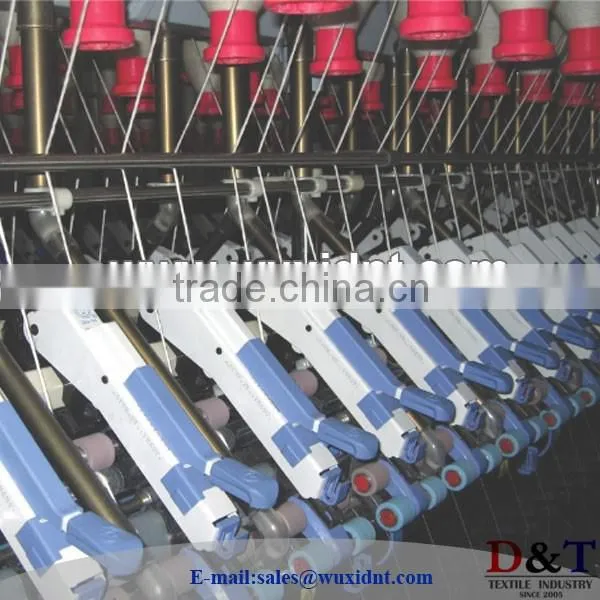

Four-Roller Compact Spinning System
1.We adopt four roller compact spinning and sirspun system to do remodelling on ring frames.
Sound structure design,excllent spare part manufacture and remarkable yarn effect.
2.Yarn is more compact and has better finish.Yarn hairiness decreased abviously.Above 3mm
of tube yarn,hairiness can be reduced more than 60%.
3.Strength is increased by 10%-15%,compared with ring spinning.
4.CV% is better than ordinary yarn.
5.We can use a lower level of textile raw materials to produce the same quality of yarn as traditional
ring spinning of spinning frame or use same raw material to make out of higher qulity yarm.
6.Breakage rate and fly decreased,hence the output increased obviously,the intensity of operative
worker decreased significangly and the corporation cost delined.

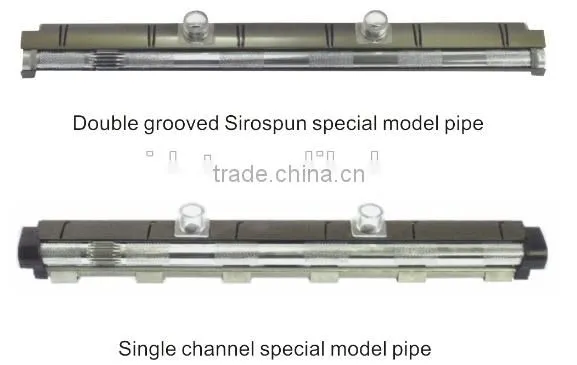

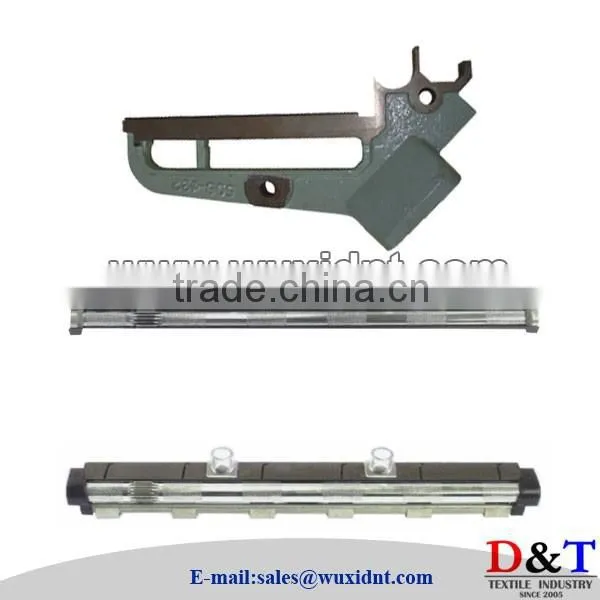

Special model pipe
1.Special model pipe and output servo roller is split,easy to use.When reforming to Sirospun,easy to
maintaim and repair two-end bearings.
2.Most optimized design comcept
3.Best Yarn quality.
4.Two options:Single channel or Sirospun.
5.More stable and power saving.
Apron support
Using imported famouse and brand raw material to ensure the tensile strength,antistatic property,
prolonged service life and good consintence.

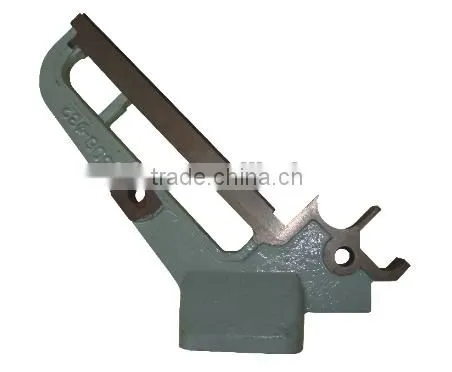

Four roller fast bracket
