WS-C3560X-24T-S Catalyst 3560X 24 Port Switch

WS-C3560X-24T-S Catalyst 3560X 24 Port Switch thumbnail-1
WS-C3560X-24T-S Catalyst 3560X 24 Port Switch photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
24
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports 24
Transmission Rate 10/100/1000Mbps
Function SNMP
Certification UL CE
Switch Capacity 160Gbps
Brand Name For Cisco
Model Number WS-C3560X-24T-S
Place of Origin China
Company Information

1. Integrator of HP.

2. Partner of Dell and NetApp.

3. Agent of IBM, EMC, Juniper and Qlogic.

4. Professional on handling and customizing projects and IT solutions.

5. Spirit of keeping long-term business relationship.

Product Description

WS-C3560X-24T-S Catalyst 3560X 24 Port Switch





Manufacturer Part # WS-C3560X-24T-S
Product Description Catalyst 3560X-24T-S - Switch - managed - 24 x 10/100/1000 - rack-mountable
Device Type Switch - 24 ports - managed
Enclosure Type Rack-mountable - 1U
Ports 24 x 10/100/1000
Performance Switching fabric bandwidth : 160 Gbps
Capacity Virtual interfaces (VLANs) : 1005
Jumbo Frame Support 9216
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features Hot swap module replacement, layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Approximate Dimensions (WxDxH) 17.5 in x 18.1 in x 1.8 in
Approximate Weight 15.4 lbs
Manufacturer Warranty 1 year warranty

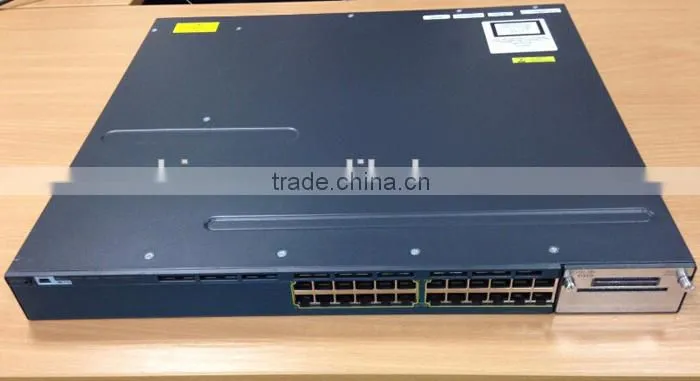

Picture Showcase

We take product photos freshly in warehouse.



WS-C3560X-24T-S Catalyst 3560X 24 Port Switch



WS-C3560X-24T-S Catalyst 3560X 24 Port Switch

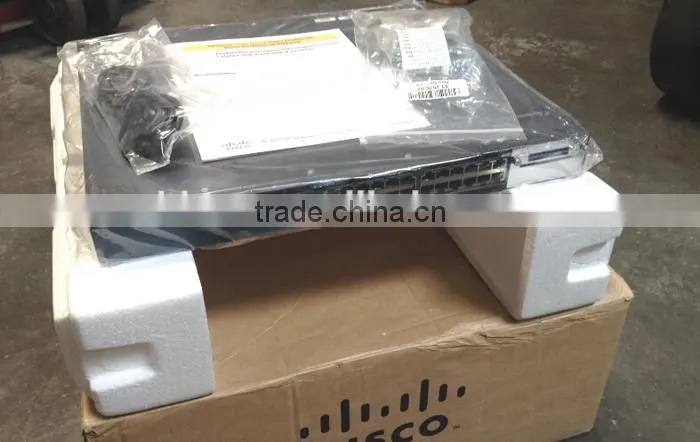

Packaging & Shipping

WS-C3560X-24T-S Catalyst 3560X 24 Port Switch
