HDMI Repeater Extender The Length of HDMI Cable Up to 35M HDMI Extender Adapter
Specification:
Product Name |
HDMI Extender Adapter |
Model NO. |
PETRT |
Input Video Signal |
HDMI Signal |
HDMI Input/Output Connector |
Type A 19 pin |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Size(L-W-H) |
50X41X26 mm |
Weight (Net) |
73g |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
HDMI Cable |
Power Consumption |
3W |
Converter Unit |
FCC,CE |
User Manual |
English Version |
Description

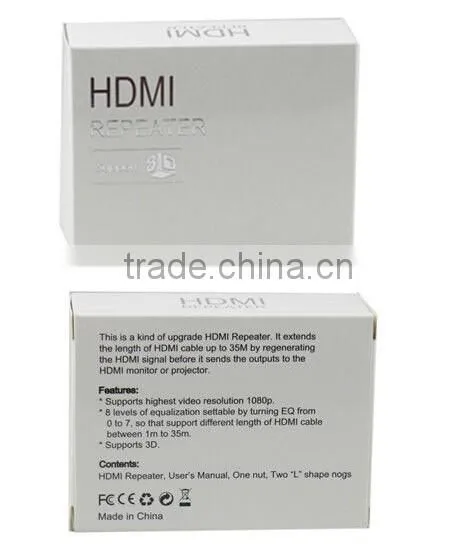

This is a kind of upgrade HDMI Repeater. It extends the length of HDMI cable up to 35M by regenerating
the HDMI signal before it sends the outputs to the HDMI monitor or projector.
Meanwhile, according to the length of HDMI cable the special designed EQ can be adjusted to reach the
best transmission function.
This HDMI Repeater adopts the iron shell for better EMI elimination and it will clean out the digital noise
(sparkles) in your picture. With the unique designed structure, this repeater can be fixed up with the
donated nogs in “L” shape.
Diagram
Features
*Supports highest video resolution 1080p.
*Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
*Supports 12bit per channel (36bit all channel) deep color and HDCP pass-through.
*Iron Shell for better EMI elimination.
*Supports uncompressed audio such as LPCM.
*Supports compressed audio such as DTS Digital, Dolby Digital(including DTS HD and Dolby True HD).
*8 levels of equalization settable by turning EQ from 0 to 7, so that support different length of HDMI cable
between 1m to 35m.
*Unique designed structure for better connection.
*Support 3D
Advantages
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0 Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content
* One Main unit.
* One nut
* User's Manual
* Two "L" Shape nogs
Company Image
Production Flow
Our Service:
1)Profession sales service can provide you good choice
2)Any defects occurs within warranty can be solved by us with free charge, freight not included
3)We provide resolve methods for you
4)Good after sales service.
OEM & ODM
Certification
Exhibition
