v1.3 HDMI Matrix 4x4 hdmi matrix support 3D 4 ways input and 4 ways output Matrix 1080P
1.0 Introduction
The HDMI SWITCH SYLITTER Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays.
Two outputs give you the choices of sending high definition audio and video signals up to two displays.
At the same time, when you select Output A as the output, the audio signal will be separated and transmitted to the amplifier by Stereo, Toslink or COAX(RCA).. Any four to any two matrix switching allows for maximum versatility for integrated systems. It eliminates the needing of disconnects and reconnects sources to a display equipped with one input.

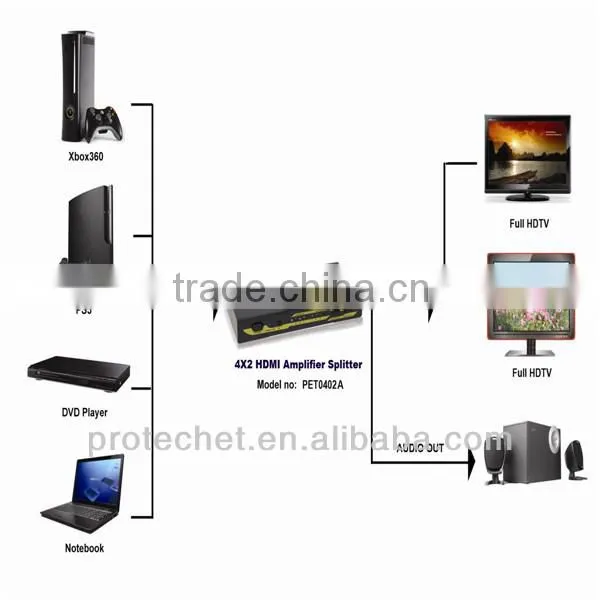

It works with HDDVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays. Every source is accessible at all times by any display by selecting it with an IR remote
2.0 Features
* Support audio output simultaneously: Stereo, Toslink and Coaxial
* 2CH"and "5.1 CH" can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial
* Supports highest video resolution 1080p and HDCP.
* Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
* supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM.
* Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
* Support 3D
3.0 Specifications
Signal Input |
HDMI Signal |
Output video |
HDMI/AUDIO/COAX/SPDIF Signal |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
430p,576p,720p,1080p,4k x2k |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to 70℃ |
Operating Humidity |
10% to 85% RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption |
8W |
Converter Unit |
FCC.CE |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
5.0 Package Contents
1) Main unit.
2) 5V DC Power Supply
3) Remote Control
4) User Manual
5) IR extension cable
Netural Package : Color Box or As your Design
