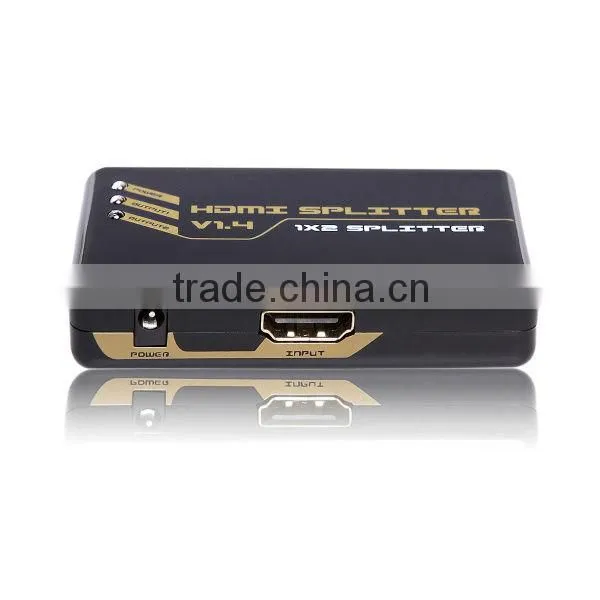

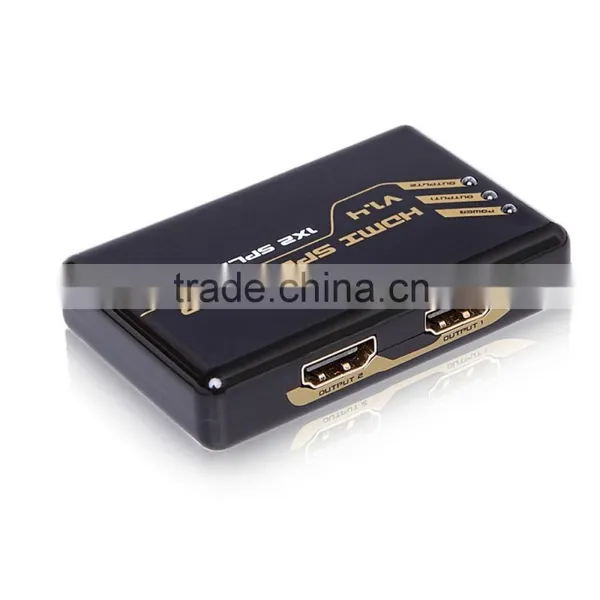

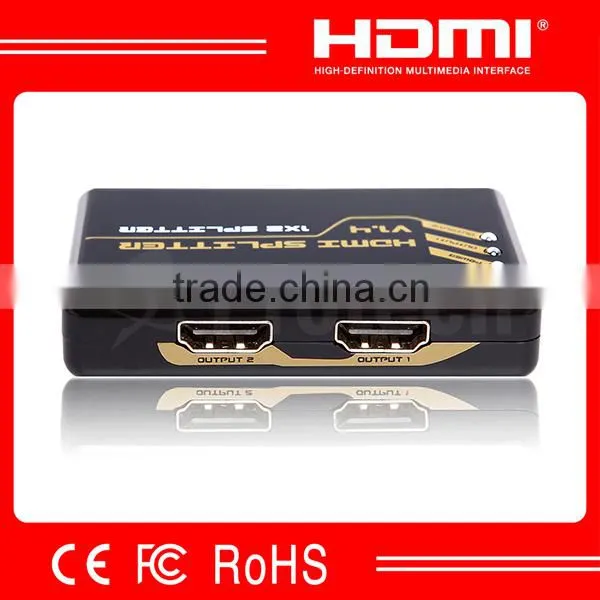

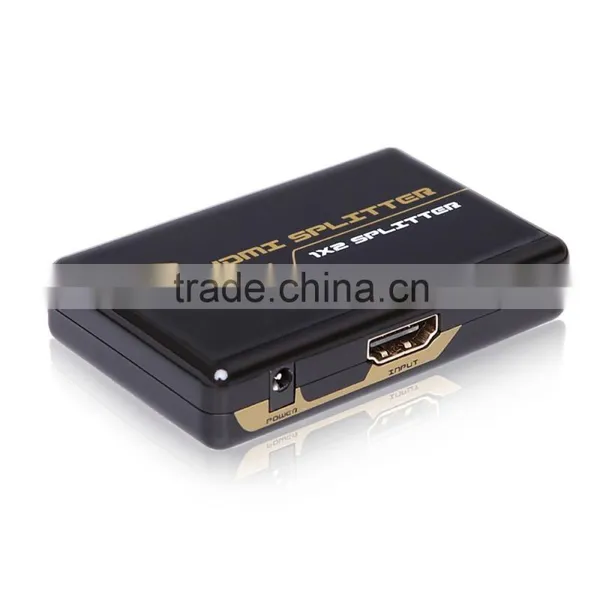

High Quality Hdmi Splitter V1.4 1 in 2 Out Support 3D
US$ 10 - 12
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Protech
Model Number:
4PET0102
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Generator V1.4 High Speed HDMI Splitter 1x8 8 Ports Hdmi Splitter With 4kx2k for Home TheaterUS$ 35 - 59MOQ: 100 Pieces -
Hot Video Player V1.4 High Speed HDMI Splitter 1x8 8 Ports Hdmi Splitter 1 in 8 Out With 4kx2k Made in ChinaUS$ 35 - 59MOQ: 100 Pieces
-
China Supplier 1 Input 8 Output Hdmi Switch Splitter Hdmi Splitter 1x8 HDMI Splitter Support 1080p HDCP Pass ThroughUS$ 19 - 25MOQ: 100 Pieces
-
Wholesale HDMI 1x16 Splitter Support 1080p HDCP Pass Through 16-port Hdmi Splitter for Home TheaterUS$ 45 - 55MOQ: 100 Pieces
-
Wholesale 4K x 2K HDMI Splitter 1X2 1 In 2 Out Support Full 1080P 3D For Home TheaterUS$ 10 - 19.9MOQ: 200 Pieces
Brand Name
Protech
Model Number
4PET0102
Place of Origin
Guangdong, China
1 port in and 2 port out 4kx2k 1x2 HDMI Splitter
INTRODUCTION
This HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
* Easy to Use: Install in seconds, no need of setting.
* One HDMI Input, two HDMI outputs
* Supports Full 3D and 4Kx2K resolution.
* Supports highest video resolution 1080p.
* Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM
* Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
SPECIFICATIONS
Signal Inputs/Output |
|
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4kX2k |
| Output Video | HDMI1.4a with full 3D and 4Kx2K |
Operating Frequency |
|
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
340MHz/3.4Gbps |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Mechanical |
|
Size(L-W-H) |
63X54X18mm |
Warranty |
|
Limited Warranty |
1 Year Parts and Labor |
Environmental |
|
Operating Temperature |
0℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply |
5V DC@ 2A |
Power consumption (Max) |
8W |
Regulatory Approvals |
|
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
Accessories Adapter |
|
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
1) Main unit
2) 5V DC Power Supply
3) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
