Wholesale hdmi splitter 1x2 support 4k 2k hdmi splitter mediamarkt with low price
4K x 2K 2 Port 1 x 2 HDMI splitter with IR Wireless Remote Control
1. Support 4K*2K,1080P,3D
2. Support HDCP,CEC
3. 5V1A Power adapter
4. Beautiful ABS Housing Apperance
1.0 Installation and Precautions
To avoid electric shock , product damage and to protect your safety , please notice the following:
1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
2.0 Introduction

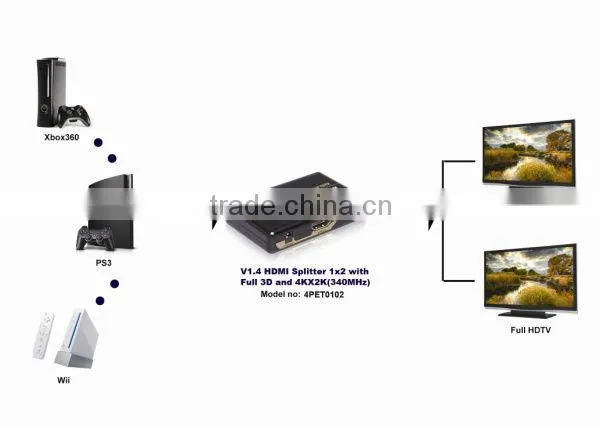

This HDMI Splitter 1x2 is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz.
This HDMI Splitter 1x2 offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
3.0 Feature
1)Easy to Use: Install in seconds, no need of setting.
2)One HDMI Input, Two HDMI outputs
3)Supports Full 3D and 4Kx2K resolution.
4)Supports highest video resolution 1080p.
5)Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
6)Supports 12bit per channel (36bit all channel) deep color.
7)Supports HDCP 1.4
8)Supports uncompressed audio such as LPCM
9)Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD)
4.0 Technical parameters
HDMI Source Input Port-----------------------------------------------------------------1
Display Device Output Port--------------------------------------------------------------2
Source Port Connector--------------------------------------------------------------------19 PIN HDMI.
Display Device Port Connector---------------------------------------------------------19 PIN HDMI.
HDCP Compliant-------------------------------------------------------------------------YES
Single Link Range------------------------------------------------------------------------4096*2160
Input Video Signal------------------------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal------------------------------------------------------------------------5 Volts P-P(TTL)
Deep Color--------------------------------------------------------------------------------48 Bit
HDMI Version----------------------------------------------------------------------------HDMI1.4
Bandwidth---------------------------------------------------------------------------------Up to 340Mhz
Signal Speed------------------------------------------------------------------------------Up to 10.2Gbps
The length of input cable----------------------------------------------------------------PS3≤15M;BLUE DVD≤15M
The length of output cable--------------------------------------------------------------≤25M
The cable standard-----------------------------------------------------------------------26AWG HDMI1.4
Vertical Frequency Range--------------------------------------------------------------60Hz
Power Consumption(max.)------------------------------------------------------------- 2.5Watts
Operation Temperature-----------------------------------------------------------------0℃-70℃
Working Voltage-------------------------------------------------------------------------DC 5V
Power Adaptor---------------------------------------------------------------------------5V 1A
Net Weight------------------------------------------------------------------------------- 40g
Dimension: L*W*H(mm)------------------------------------------------------------- 75*48*15mm
Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.

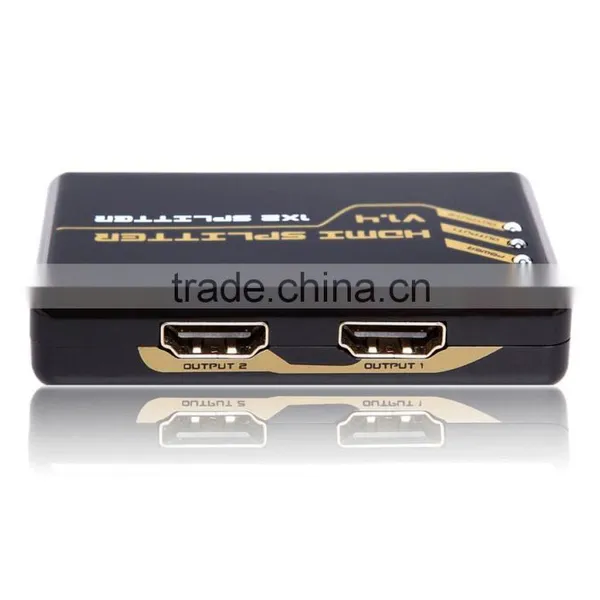

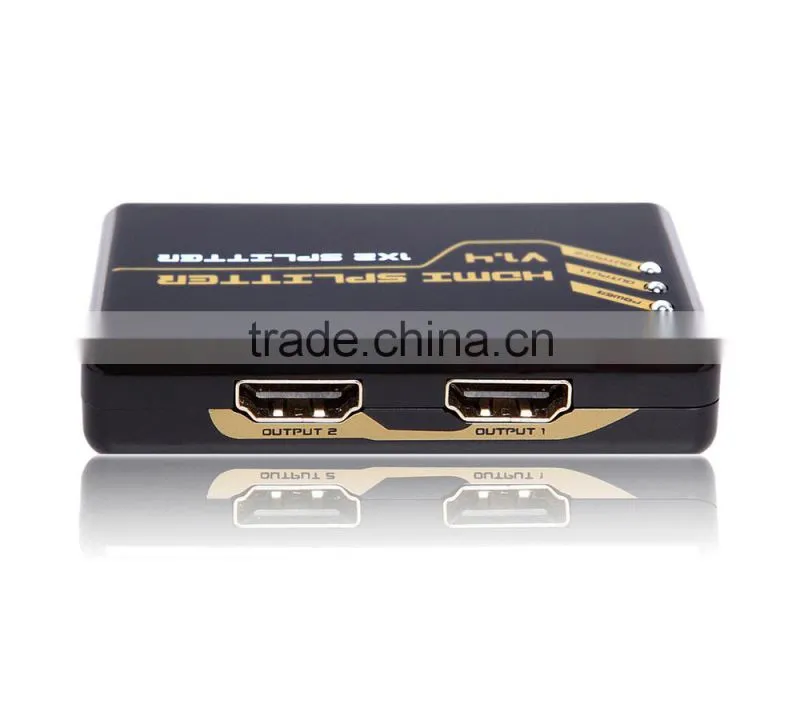

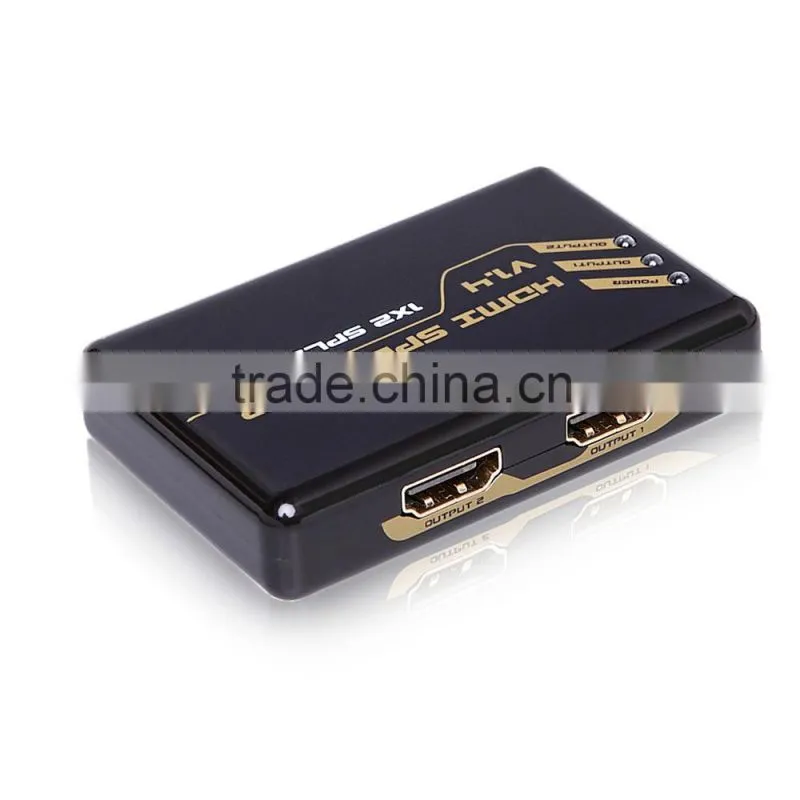

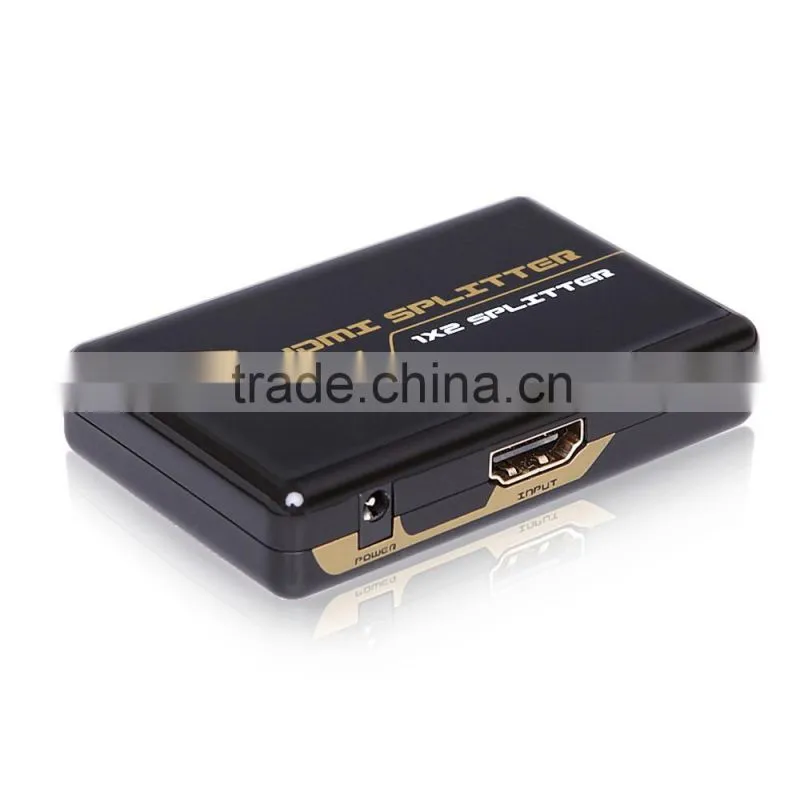

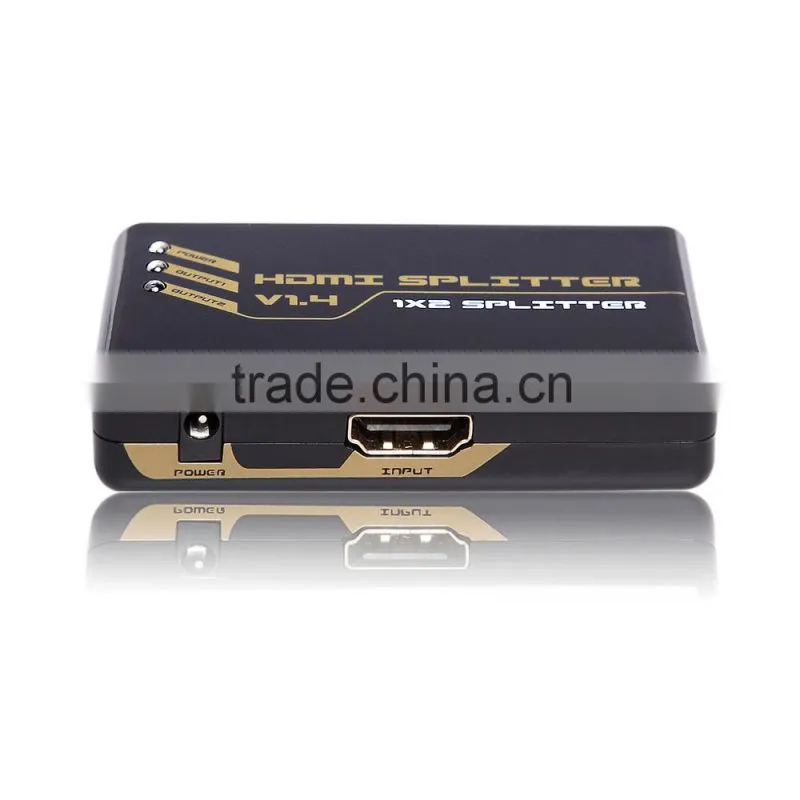

V1.4 2Port HDMI splitter 1x2 3D 4K*2K HDCP CEC
1) Main unit ( HDMI Splitter1x2)
2) 5V DC Power supply
3) User Manual
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 1-2 weeks according various quantities
3. OEM 1-2 weeks after receiving your sample confirmation and payment.
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
OEM & ODM:
Certification:
Exhibition:
Pre-Sale: Respond Customer's inquiry in 12 hours, answering all reasonable questions raised, help make sales plans, recommend products for different market, help customer with custom-design packages etc.
On-Sale: after order is placed, we will keep close eyes on the production schedule to make sure the cargo will be delivered in time as promised. and cargo will be inspected for 4 times before delivery.
After-Sale: after the cargo is dispatched, we will help to track the goods and notity customer when cargo arrrived the destination. also, we will keep an eye on the cargo sales status. If the end user came across a problem, we can offer technical support/suggestions, etc.
Warranty: 1 years warranty for long-term business customers.
Back-up: product defect rate is almost 0%, but if a product needs repair, we can help to do that. if the products is unable to repair, we will send new one for replacement.
1.Q:Are you a factory or trading company?
A:We are a Professtional Manufacturer of HDMI Accessories for many years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in NO.6 Baofu Road, Shangmu Gubaolai Industrial Park, Ping Hu Town, Long Gang District,Shenzhen Guangdong, China , are warmly welcome to visit us!
3.Q:What is the material of your Product?
A:The material is ABS. We can also choose material as customers' requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Protech people always attach great importance to quality controlling from the very beginning to the very end.
