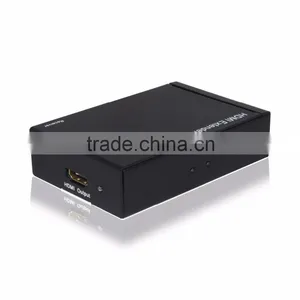

high speed hdmi splitter 1x2 home theater sound system 1 in 2 out hdmi spliter by cat5e/6 cable UTP support 3D
1.0 Introduction
This HDMI TM 1x2 Splitter Extender allows a single HDMI TM device to be broadcast to up to two remote displays over Cat5e/6 or better LAN cable at distance up to 50m(164ft). It’s an ideal solution to help you create a custom HDMI TM distribution and extension for many applications including digital signage and video conferencing. With only one transmitter, PET0102E requires a single receiver unit per remote display that you are connecting.
2.0 Features
* One pair as a full functional module, no need of setting
* Use cost-effective LAN cable for long distance transmission
* Follow the standard of IEEE-568B
* Transmission distance can be up to 50m@1080p via Cat6 Cable
* Automatic feedback, equalize and amplifier the HDMI signal according to the cable length
* Support highest video resolution 1080p
* Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
* Support 8bit per channel (24bit all channels) deep color
* Support uncompressed 2 channel audio such as LPCM
* Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD)
* Support HDMI (with 3D)
Note: Dolby is a trademark of Dolby Laboratories.
3.0 Specifications
Signal Input |
HDMI Signal |
Input Video Signal |
0.5-1.0 volts p-p |
Input DDC Signal |
5 volts p-p(TTL) |
Maximum Single Link Range |
1080p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/480p/576i/576p/720p/1080i/1080p |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to 70℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC |
Power Consumption(Max) |
5W |
Splitter Unit Cert |
FCC.CE, RoHS |
Power Supply Cert |
CE,FCC, RoHS |
Power Adapter |
US,UK, EU,AUS etc |
User Manual |
English Version |
Note:
1. Cable quality affects the product performance.
2. Specification is subject to change without prior notice.
3. It might be no display when the product connected to some TVs, due to the hot plug issue.
Please unplug and re-plug in the HDMI Cable, it will resume work.
4. Please disassemble the foot pads when mounting PET0102E on the wall.
4.0 Package & Shipping Contents

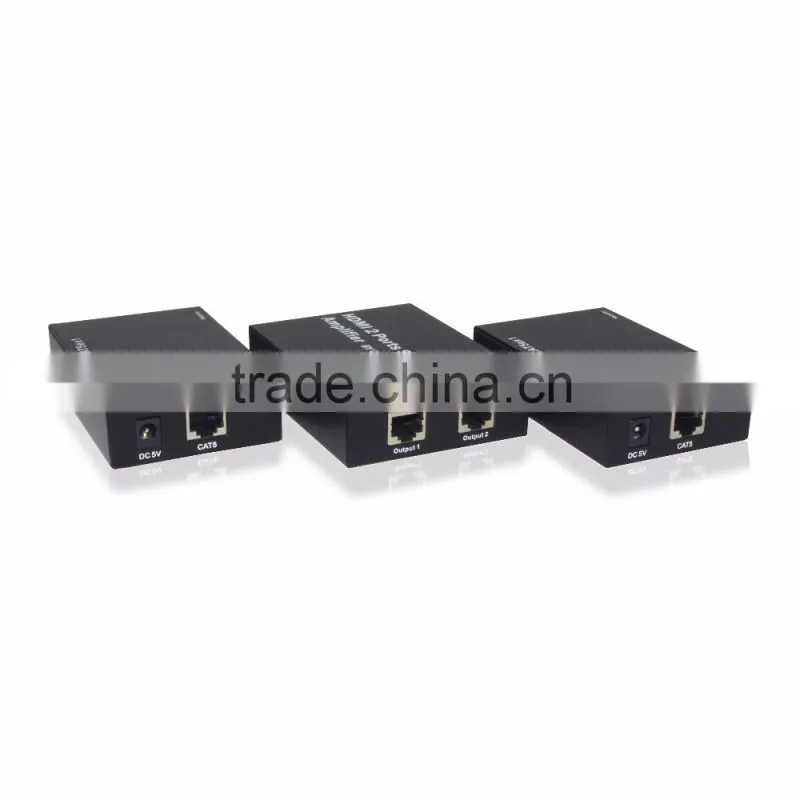

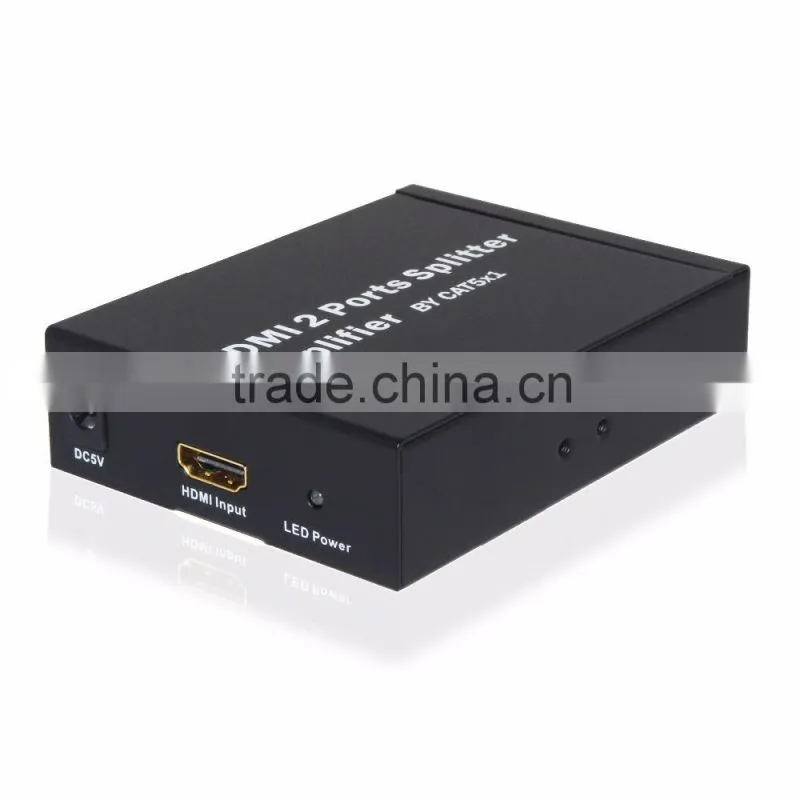

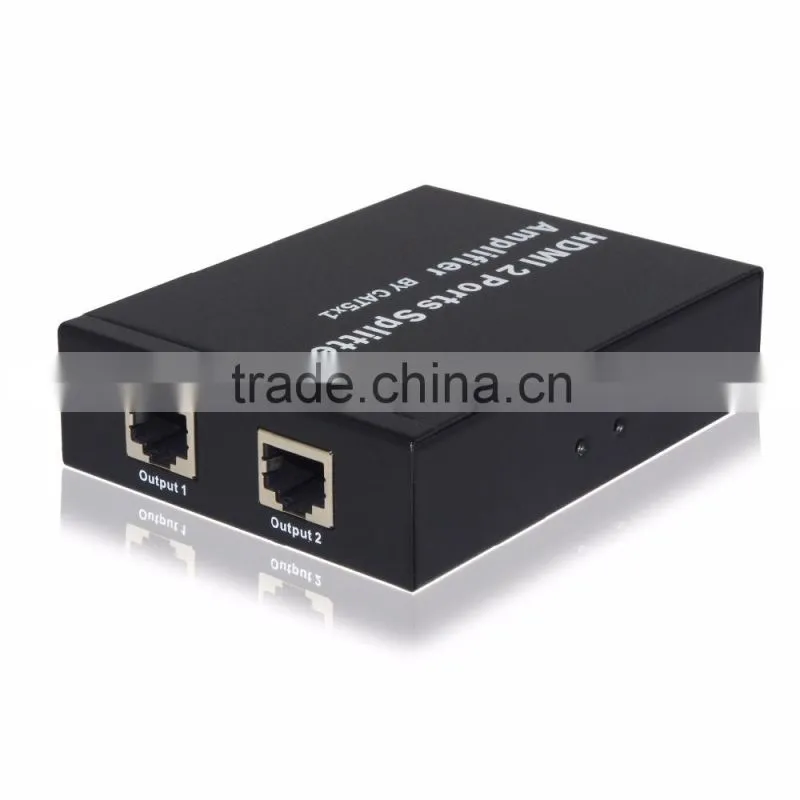

1) Main Unit NO.1 Sender x1

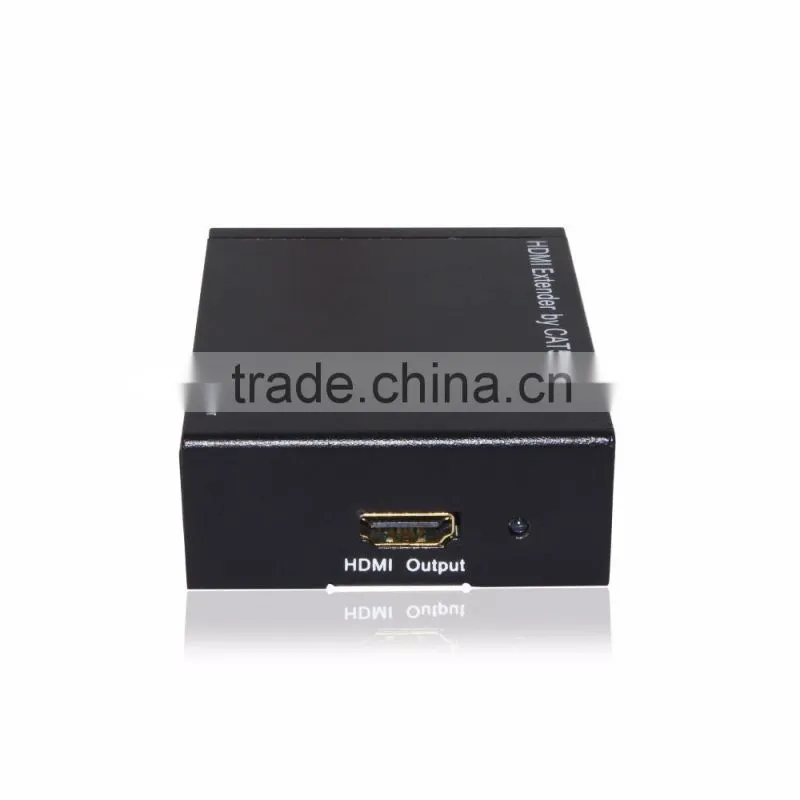

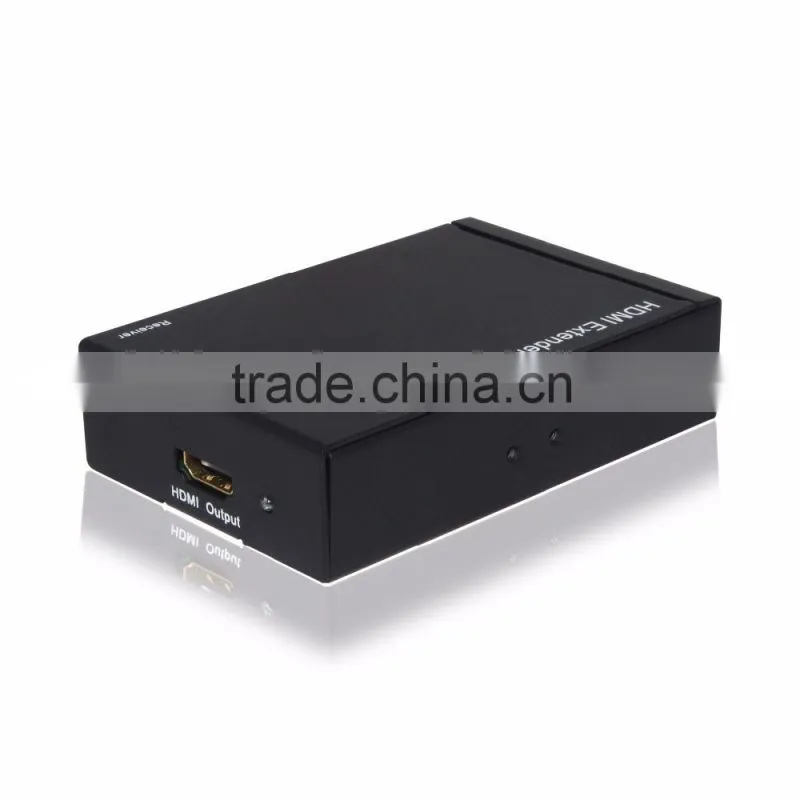

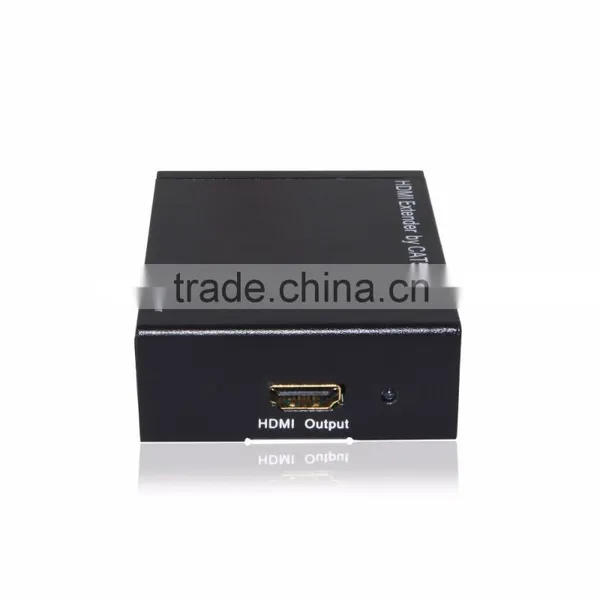

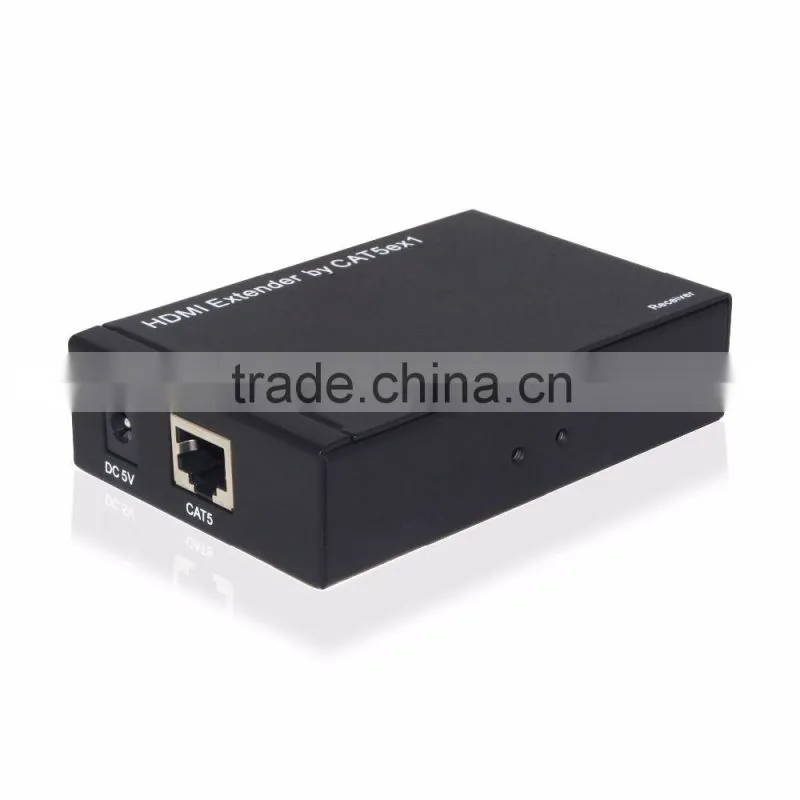

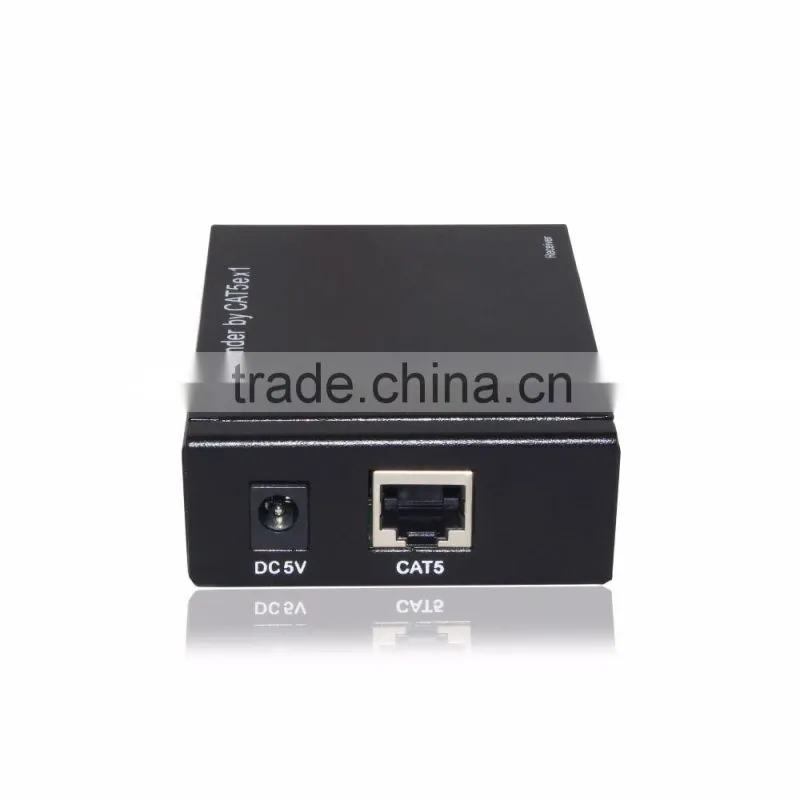

2) Main Unit NO.2 Receiver x2
3) 5VDC Power Supply x3
4) Mounting Ears x4
5) User Manual x1
5.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
Pre-Sale: Respond Customer's inquiry in 12 hours, answering all reasonable questions raised, help make sales plans, recommend products for different market, help customer with custom-design packages etc.
On-Sale: after order is placed, we will keep close eyes on the production schedule to make sure the cargo will be delivered in time as promised. and cargo will be inspected for 4 times before delivery.
After-Sale: after the cargo is dispatched, we will help to track the goods and notity customer when cargo arrrived the destination. also, we will keep an eye on the cargo sales status. If the end user came across a problem, we can offer technical support/suggestions, etc.
Warranty: 2 years warranty for long-term business customers.
Back-up: product defect rate is almost 0%, but if a product needs repair, we can help to do that. if the products is unable to repair, we will send new one for replacement.
1.Q:Are you a factory or trading company?
A:We are a Professtional Manufacturer of HDMI Accessories for many years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in NO.6 Baofu Road, Shangmu Gubaolai Industrial Park, Ping Hu Town, Long Gang District,Shenzhen Guangdong, China , are warmly welcome to visit us!
3.Q:What is the material of your Product?
A:The material is ABS. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Protech people always attach great importance to quality controlling from the very beginning to the very end.
OEM & ODM:
Certification:
Exhibition:
