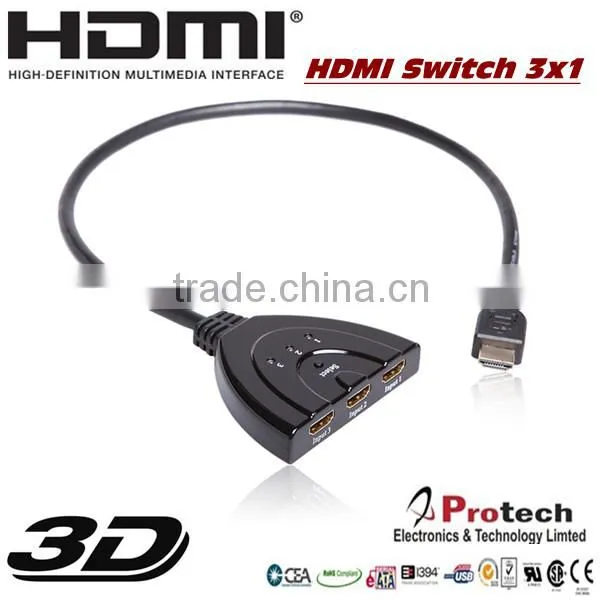

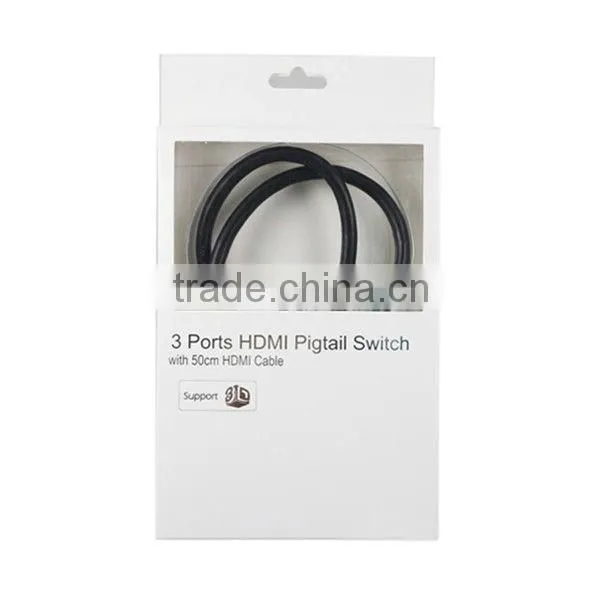

3 Port Hdmi Switch Switcher Multimedia Lossless Video Switch PET0301D

Name: 3 Port Hdmi Switch Switcher Multimedia Lossless Video Switch PET0301D
Brand: protech
SKU: 124434685

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

protech

Model Number:

PET0301D (HDMI Switch )

Place of Origin:

Guangdong, China

Shenzhen Protech Electronics & Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name protech

Model Number PET0301D (HDMI Switch )

Place of Origin Guangdong, China

Specifications

1)3 port HDMI Switch,Mini HDMI Switch 3x1
2)HDCP Compliant,1080P,with remote control
3)HDMI,RoHS,CE,FCC Cert
4) OEM,ODM

1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.

2) Once the source device is turned off or plugged out, the switcher will select the next power-on source depending on the sequence automatically.

Features

* Multifunctional on switching, intelligent or mechanical

* Support HDMI1.3b, HDCP pass-through.

* Support highest video resolution 1080p.

* High performance up to 2.5Gbps .

* Support 12bit per channel (36bit all channel) deep color.

* Support uncompressed audio such as LPCM.

* Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD)

* Support 3D

Specifications

Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	HDMI 1.3b
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Limited Warranty	1 Year Parts and Labor
Operating Temperature	0°C to +70°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
External Power Supply	No power needed
Power consumption (Max)	5W
Converter Unit	FCC,CE
User Manual	English Version or custom made
