Specifications
1)Convert VGA Input to HDMI Output2)HDMI,CE,FCC,RoHS Cert
3)OEM,ODM Service for Qty to 500 pcs
4)HDMI Convert for Home

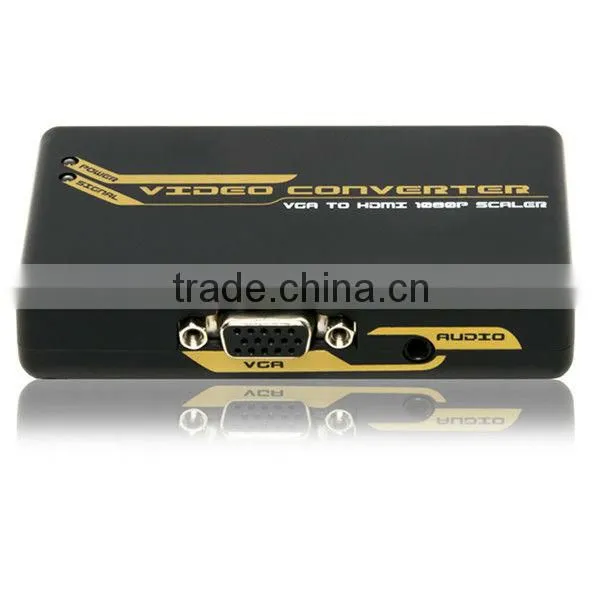

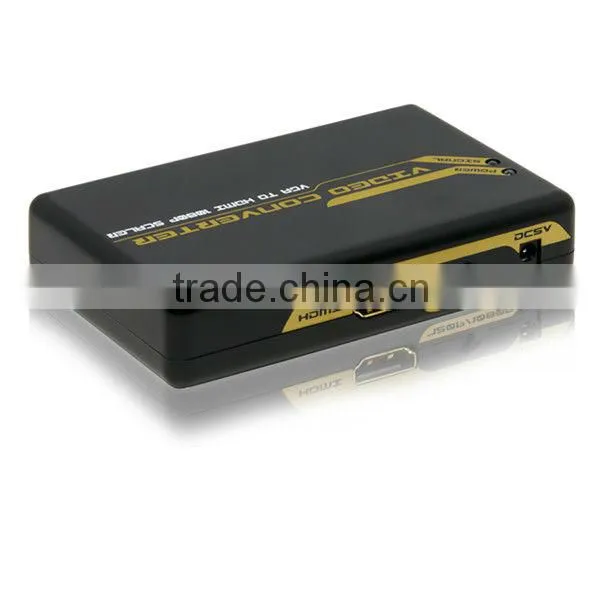

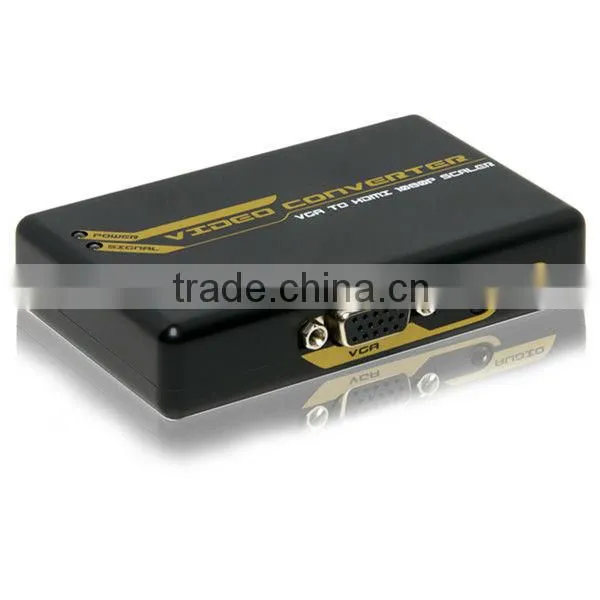

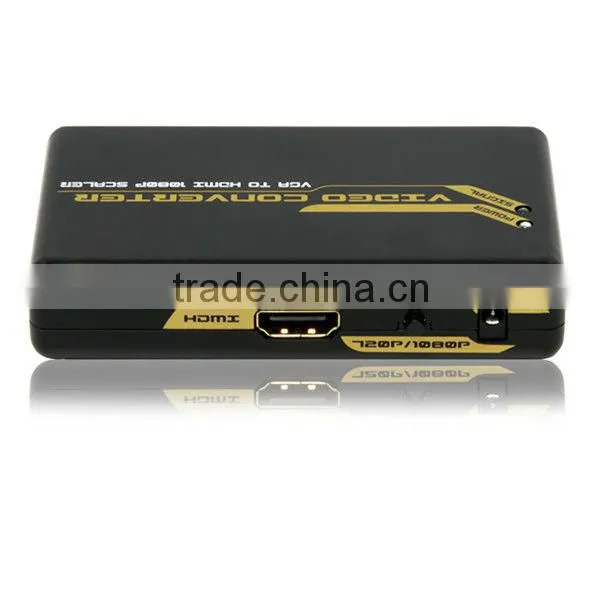

vga to hdmi hd hdtv video converter
VGA to HDMI This converter is designed to take video and audio signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p.
Plug and play, no software is needed. Great for connecting the VGA video output of your computer or media server and integrating it into a new digital HDMI Home Theater System.
* Up-scales VGA to HDMI 720P or 1080P;
* Supports VGA Input: 640x480@60/75Hz, 800x600@60/75Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1920x1080@60Hz. ( Recommended input resolution: 1024x768@60Hz )
* Supports HDMI Output: 720P/60Hz, 1080P/60Hz;
* Auto-store setting of output resolution
Signal Inputs |
VGA Signal |
Input Video Signal |
0.5 -1.0 volts p-p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC |
Power consumption (Max) |
5W |
Converter Unit Cert. |
FCC,CE, |
Power Supply Cet. |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
1) Main unit (VGA + stereo audio to HDMI converter )
2) 5V DC Power Supply
3) User Manual

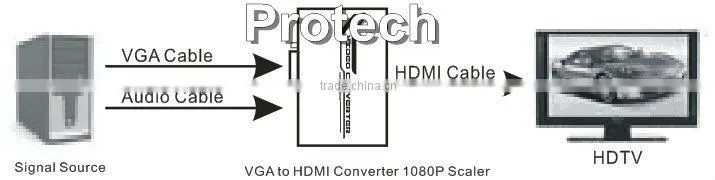

Connect Diagram
If you have any question, pls feel free to contact us for more details, thank you (Janet Qiu)
QQ: 2205420340
