Specifications
1)vga to hdmi converter2)HDMI,CE,FCC,RoHS Cert
3)HDMI-interfaced laptop to ananlog TV Family
4)OEM Service

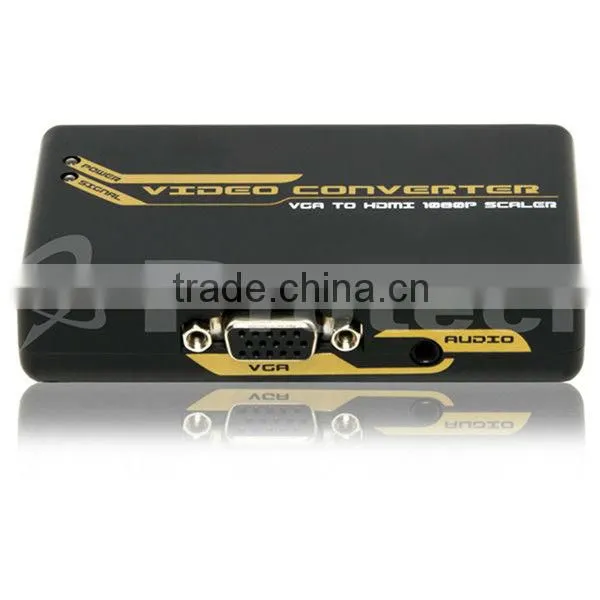

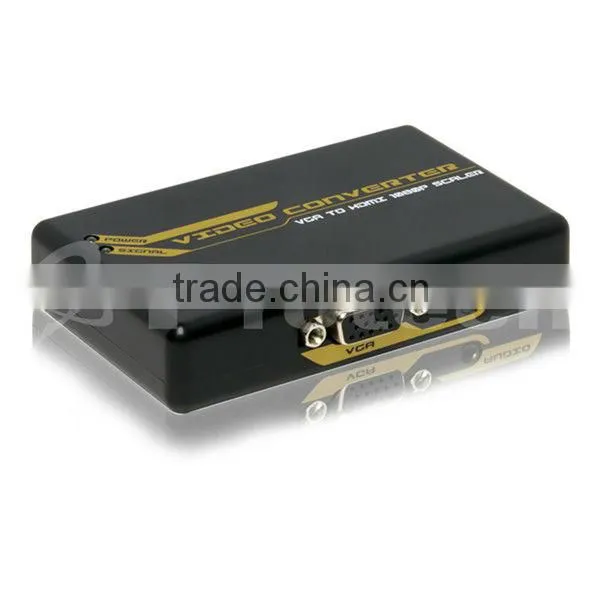

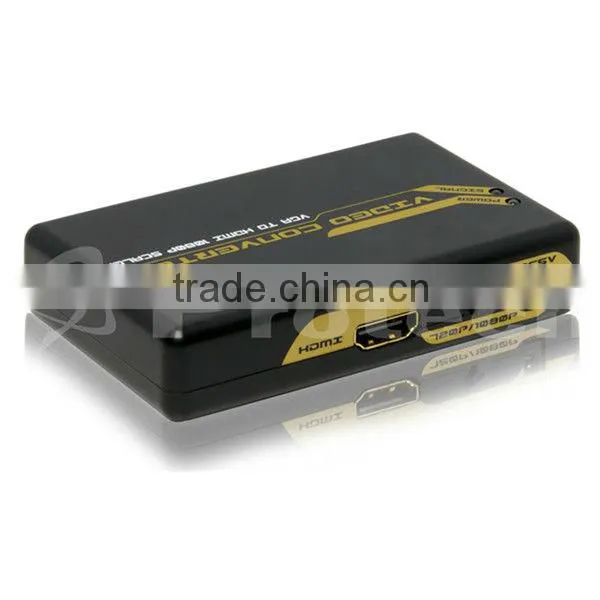

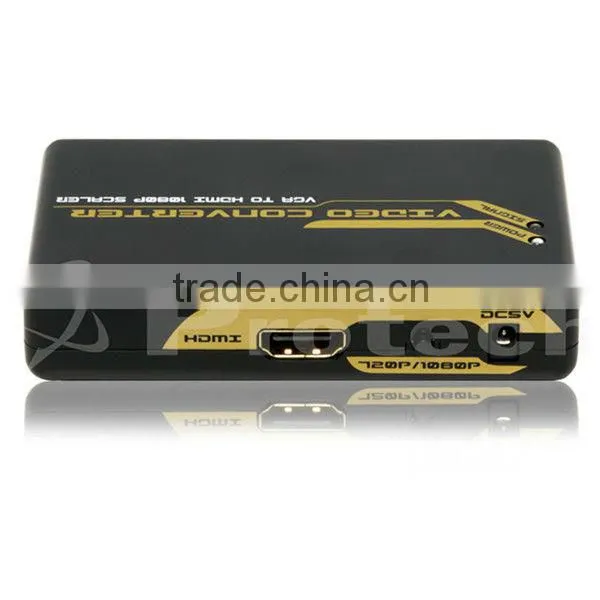

hd video vga input hdmi output upscaler to 1080P
Item : convert vga to hdmi , vga to hdmi converter with audio out , vga input hdmi out video converter
Introduction
VGA to HDMI This converter is designed to take video and audio signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p.
Plug and play, no software is needed. Great for connecting the VGA video output of your computer or media server and integrating it into a new digital HDMI Home Theater System.
Features
* Up-scales VGA to HDMI 720P or 1080P;
* Supports VGA Input: 640x480@60/75Hz, 800x600@60/75Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1920x1080@60Hz. ( Recommended input resolution: 1024x768@60Hz )
* Supports HDMI Output: 720P/60Hz, 1080P/60Hz;
* Auto-store setting of output resolution
Specification
Signal Inputs |
VGA Signal |
Input Video Signal |
0.5 -1.0 volts p-p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC |
Power consumption (Max) |
5W |
Converter Unit Cert. |
FCC,CE, |
Power Supply Cet. |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
1) Main unit RGB to HDMI Converter
2) 5V DC Power Supply
3) User Manual

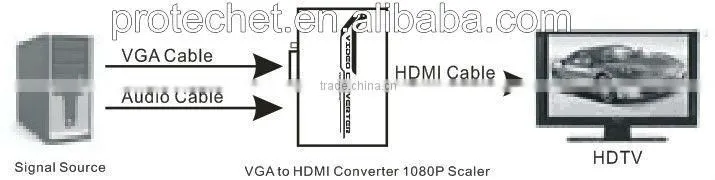

Connect Diagram
We are specilized in HDMI products manufacture , for other converters or products or any question , please feel free to send us mail, will reply you within 2 hours (during working time 8:00am - 5:30 pm ) , within 12 hours (off duty ) (Janet:) )
