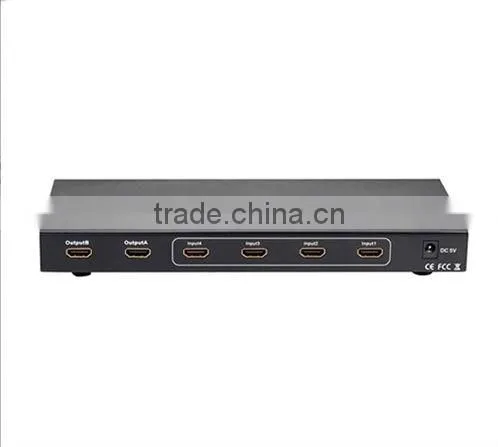

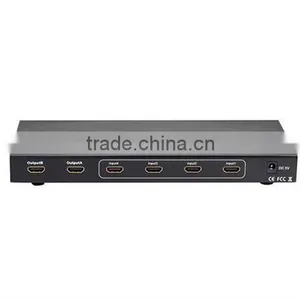

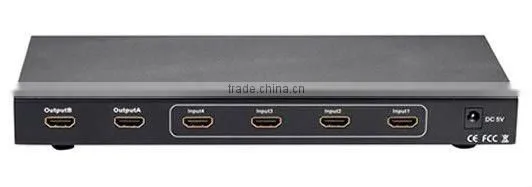

4 in 2 Out Hdmi Switch Splitter With Remote Control Support 3D 1080P
US$ 28 - 35
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
Protech
Model Number:
PET0402
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rj45 1x1 VGA Extender 300m Over UTP CableNegotiableMOQ: 50 Pieces -
Rj45 1x1 VGA Splitter Extender 300m Over UTP CableNegotiableMOQ: 50 Pieces
-
Most Cost Efficient 1x1 VGA Splitter Extender 300m Over UTP CableNegotiableMOQ: 50 Pieces
-
Top Sell 1x1 VGA Splitter Extender 300m Over UTP CableNegotiableMOQ: 50 Pieces
-
3D 1080P High Speed 3 Port Hdmi Switch Switcher 3x2 PET0302NegotiableMOQ: 50 Pieces
Brand Name
Protech
Model Number
PET0402
Place of Origin
Guangdong, China
Specifications
1)hdmi switch splitter2)Support HDMI1.3b 1080P
3) with IR Remote control
4) Performance up to 2.5Gbps
5) HDMI ,FCC,CE,RoHS
hdmi matirx switcher 4 to 2 hdmi matrix 4x2 with IR remote control
Product Description
Introduction:
PET0402 Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays. Two outputs give you the choices of sending high definition audio and video signals up to two displays. Any four to any two matrix switching allows for maximum versatility for integrated systems. The 4x2 HDMI Switcher eliminates the need to disconnect and reconnect sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays. Every source is accessible at all times by any display by selecting it with an IR remote.
----------------------------------------------------------------------------------------------------------
Features:
The series of the HDMI Amplifier Splitter have many features that enable them to perform in a superior manner.Among those features you will find:
* Switch easily between any four HDMI sources
* Distributes any of the four inputs to any or any combination of the two HDMI output displays
* Maintains high resolution video-beautiful, sharp HDTV resolutions up to 1080p
* Discrete IR remote (included)
* Support HDMI 1.3b
* Support HDCP
-----------------------------------------------------------------------------------------------------------------------------------
Specifications:
Signal Inputs/Output
HDMI Connector.............type A 19 pin female
Input DDC Signal..............5 volts p-p (TTL)
Maximum Single Link Range................1080p
Video Amplifier Bandwidth..............2.25Gbps/225MHz
Frequency...............................Up to225MHz
Interlaced(50&60Hz)..............480i,576i,1080i
Progressive(50&60Hz)..............480p,576p,720p,1080p
Limited Warranty......................1 Year Parts and Labor
Operating Temperature............0°C to +70°C
Operating Humidity...............10% to 85 % RH (no condensation)
Storage Temperature.............-10°C to +80°C
Storage Humidity..............5% to 90 % RH (no condensation)
External Power Supply....................5V DC 2A
Power Consumption...................10 watts (max)
Regulatory Approvals
Converter Unit.....................FCC,CE
Signal Inputs/Output
HDMI Connector.............type A 19 pin female
Input DDC Signal..............5 volts p-p (TTL)
Maximum Single Link Range................1080p
Video Amplifier Bandwidth..............2.25Gbps/225MHz
Frequency...............................Up to225MHz
Interlaced(50&60Hz)..............480i,576i,1080i
Progressive(50&60Hz)..............480p,576p,720p,1080p
Limited Warranty......................1 Year Parts and Labor
Operating Temperature............0°C to +70°C
Operating Humidity...............10% to 85 % RH (no condensation)
Storage Temperature.............-10°C to +80°C
Storage Humidity..............5% to 90 % RH (no condensation)
External Power Supply....................5V DC 2A
Power Consumption...................10 watts (max)
Regulatory Approvals
Converter Unit.....................FCC,CE
Power Supply............................CE,FCC
AC Power Adapter...............US standard, UK standard and so on
Note: Specifications are subject to change without notice
AC Power Adapter...............US standard, UK standard and so on
Note: Specifications are subject to change without notice
-----------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
Packing content
1. Main unit
2.Remote control
3.5V DC power adapter
4.User manual
Gift box
Shipping term
Company Information
About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
