Specifications
1.hdmi switch 1x32.1080p support 3D
3.With 30cm fixed HDMI cable
4.3 input 1 output
5.Customized availabled

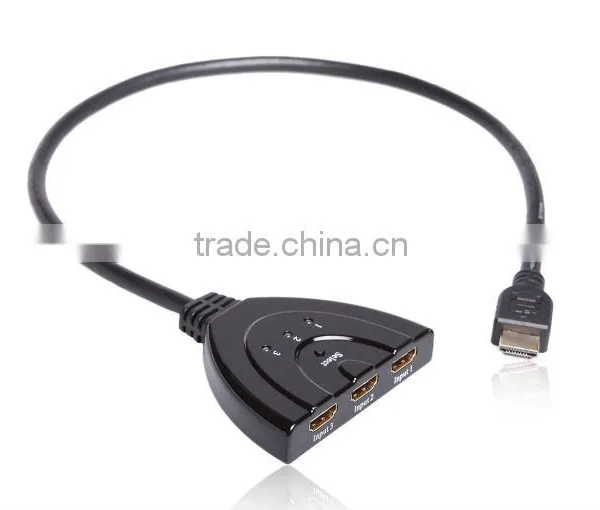

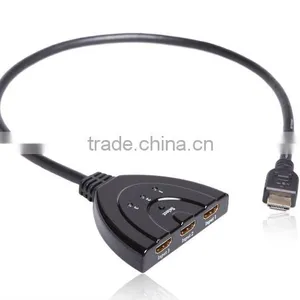

3 Port HDMI Pigtail Switch with 50 cm HDMI Cable
1. Description
This is a kind of high performance HDMI Auto Switch . It can easily switches three sources to one display. It not only has the key-press-switching function, but also has intelligent function.
2.Feature
* Multifunctional on HDMI Switch : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
* Support 3D
3.Specifications
| Input DDC Signal | 5 volts p-p (TTL) |
| Output Video | HDMI 1.3b |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W / 1A |
| User Manual | English Version |
With one fixed HDMI cable (pigtail) 3 x 1 HDMI Switcher this converter not only reduces cost but also save time for consumers.
All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox 360
4.About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
