FF-12 Series Fiber Amplifier, Potentiometer Adjusting, Fiber Optical Sensors Quality Choice
US$ 15 - 25
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FC-12 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F&C FF-303 Series Fiber Amplifier, Digital Panel, Two Color, Three Bit Digital DisplayUS$ 20 - 30MOQ: 5 Pieces -
FF-12 NPN PNP General Purpose Fiber Amplifier for Fiber Optic Sensor With CE CertificateUS$ 15 - 25MOQ: 1 Piece
-
F&C 16us NPN Fiber Optical Sensor With CE CertificateUS$ 45 - 72MOQ: 1 Piece
-
F&C FF-12G Green Light Fiber Optic Sensor and AmplifierUS$ 15 - 25MOQ: 1 Piece
-
F&C Low Price NPN PNP Fiber Optic AmplifierUS$ 15 - 25MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FC-12 series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
Specifications

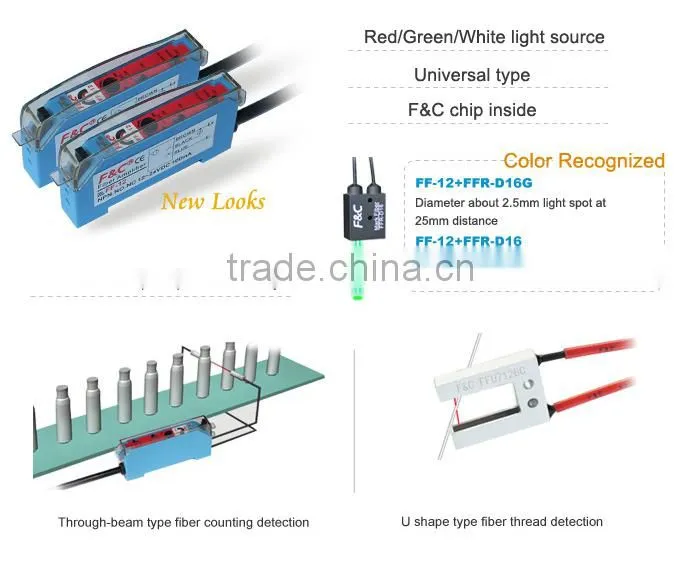

FF-12 series Fiber Amplifier, Potentiometer adjusting, fiber optical sensors,
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
| Type | Red LED | Green LED | High-Speed |
| NPN OutPut | FF-12 | FF-12G | FF-12H |
| PNP OutPut | FF-12P | FF-12GP | FF-12HP |
| Supply voltage | 12-24VDC ±10% ripple P-P10% below | ||
| Current consumption | 30mA or less | ||
| Detection output |
NPN output type: NPN open-collector transistor Maximum sink current: 100mA Voltage:30VDC or less(when detecting or between 0 to 30 VDC) Residual voltage: 1.0V or less (current 50mA) ,4 V (current 50mA) |
||
|
PNP output type: PNP open collector transistor Maximum flow current:100mA Voltage:30VDC or less(when detecting or between 0 to 30 VDC) Surplus voltage: 2.0 V or less (current 100 mA),1.0 V (current 16 mA) | |||
| Output operation | Detecting ON or not detecting ON , t ON/OFF switch choice. | ||
| Short circuit protection | Polarity protection / Circuit protection | ||
| Indicator | Power light: green, Output light: red | ||
| Sensitivity function | 1.5 circle turn adjusting | ||
| Loading current | 100mA Max.at DC 24V | ||
| Isolating impedance | 20M Ω min.(DC500V) | ||
Insulation compression |
AC500V 60Hz for 60sec | ||
| Protection level | IP67 | ||
| Reaction time | reflex:150μs through-beam:1000μs |
reflex:70μs through-beam:300μs |
reflex:40μs through-beam:200μs |
| Detection distance | reflex: 100mm through-beam:1000mm | ||
| Reaction time | 0.5ms or less((Resistance interference function 0.7ms or less)about 250μs | ||
| Timer function | about 40ms OFF Delay time | ||
| Operating environment temperature | -10~+50℃ (no-freezing,no-dew) Storage:-20~+70℃ | ||
| Operating environment humidity | 35~85%RH , Storage:-:35~85%RH | ||
| Material | Shell: heat-resistant ABS, cover: polycarbonate, optical fiber fixed rod: PPS | ||
| Accessories | (Amplifier mounting bracket):1pcs | ||

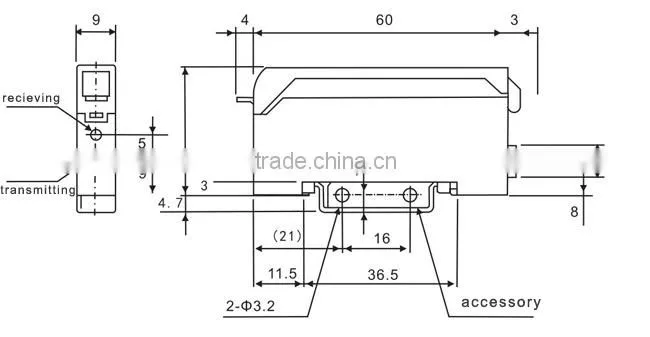

Diagram
