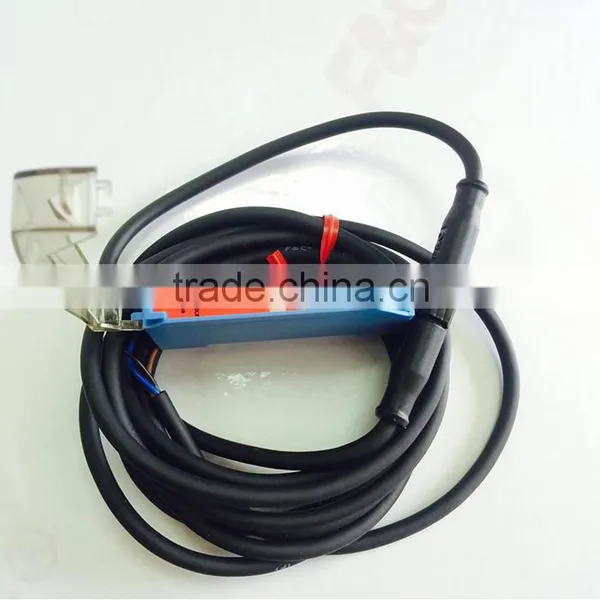

F&C FF-12 12-24V DC Extra thin optical fiber amplifier.
Fiber Optic Amplifier with potentionmeter
1.10mm thickness, install several amplifiers at the same time.
2. Multi-turn sensivity adjustment, low cost.
3. Manual set off time inductive time 4ms,40ms,400ms
| F&C FF-12 Fiber Optic Amplifier Potentiometer adjustable | |
| Model | FF-12 |
| Output Mode | NPN |
| Operating Voltage | 12~24V DC |
| Reaction Time | 200us |
| Timer Function | 40ms OFF Delay timer |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short-circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~50℃ |
| Operating Humidity | 35~85%RH |
| Waterproof Grade | IP64 |
| Material | Shell: heat-resistant ABS, cover: polycarbonate fiber optic sensor fixed rod: PPS |
| Weight | 65g |
| Accessory | Mounting Bracket |
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 3000 specification. Our main product include
Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Welcome to contact us, I can be reached by Skype:lynn_liu123 and cellphone:86-13809275350.
