FF-303 Most Competitive Digital Fiber Optic Amplifier.
F&C Provide all kinds of fiber optic sensor and lens
Accept OEM Order
Specification
| FF-303 most competitive price digital display fiber optic amplifier | |
| Model | FF-303 |
| Working Voltage | 12~24VDC±10% |
| Current consumption | 400mA Max. |
| Loading current | 100mA Max.at DC24V |
| Output mode | NPN Open collector transistors |
| Max input current: | 100mA |
| Voltage: | 30VDC |
| Residual voltage: | 1.0VDC belowat 50mA current; 0.4V below(current at 16mA) |
| Operation output: | normal open or normal close, can be set by press button. |
| Short circuit protection: | Yes |
| Self-diagnosis | Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament) |
| Response time/frequency | Universal:switch frequency: 1KHz,response time:500μs |
| Detection distance |
reflective:200mm (1mm diameter fiber core ) through-beam:1200mm(1mm diameter fiber core) |
| Indicatior LED | output:(red) stable:(green, please keep this LED non-flashing) |
| Time delay function | 5ms/50ms/500ms/5s/0s,five choice by setting button. |
| Transmission power | 100% / 50% / 25% / 12% Transmitter power can be set in different percentage. |
| Ambient temperature | -20 ~ +70°C |
| Environment humidity | 35 ~85%RH |
| Material | Shell: PC+ABS;Cover: Polycarbonate |
| Accessory | 1pcs of mounting bracket |
****FF-303 has M8 connector Model****

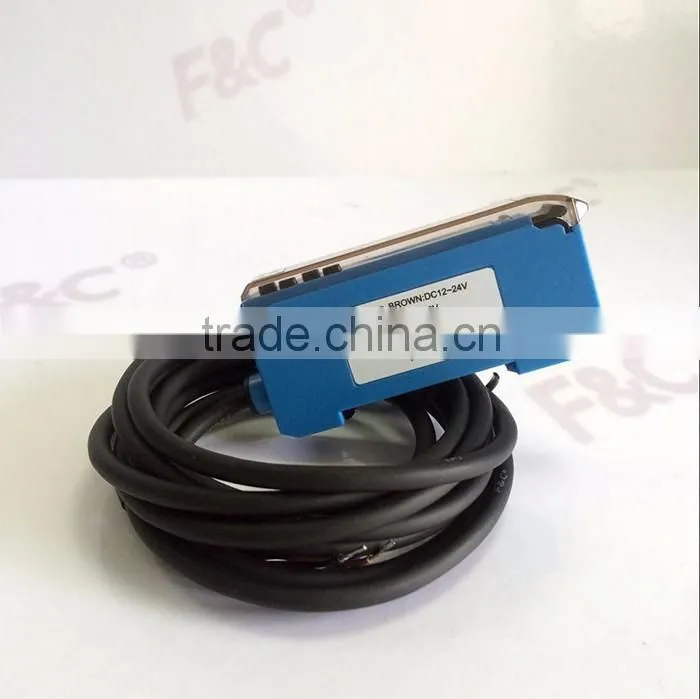

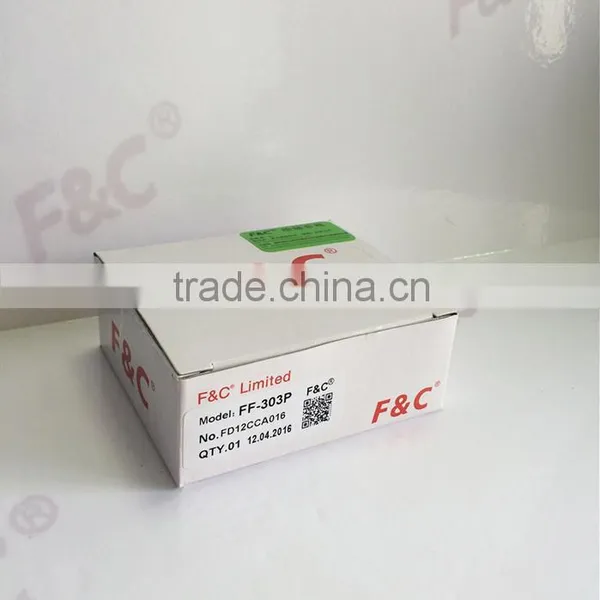

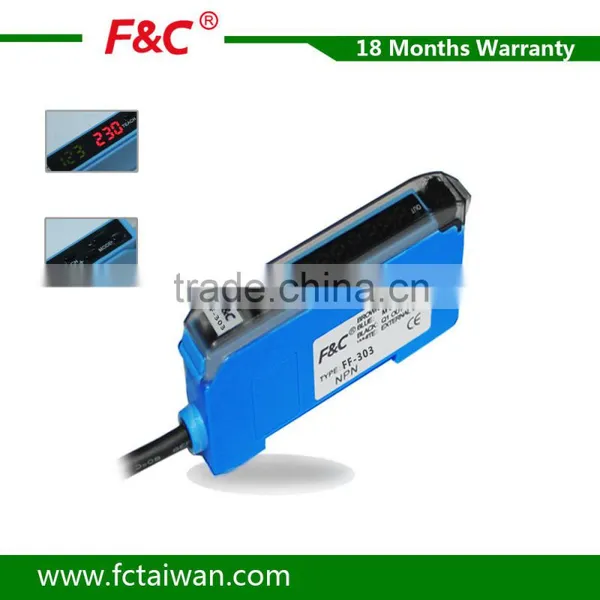

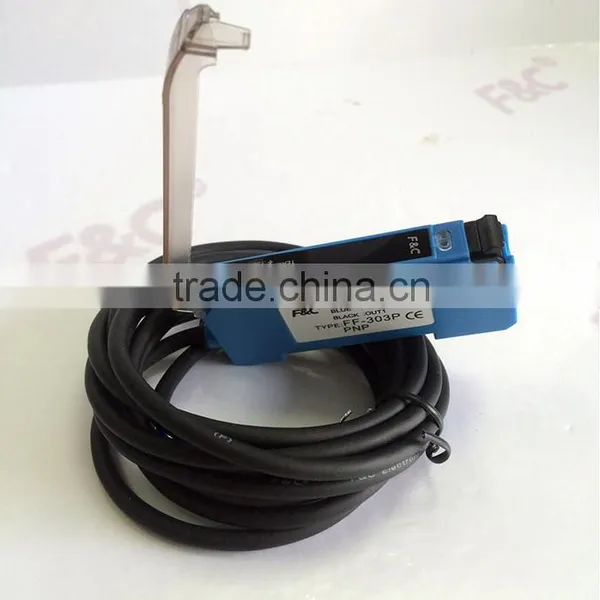

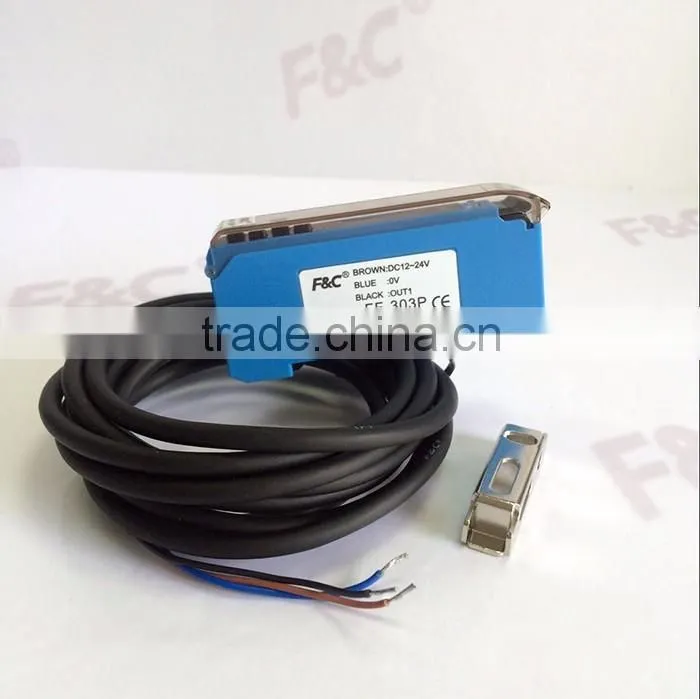

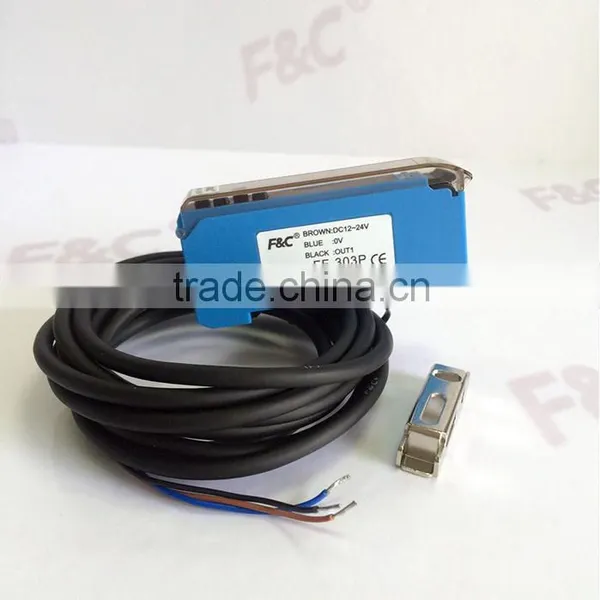

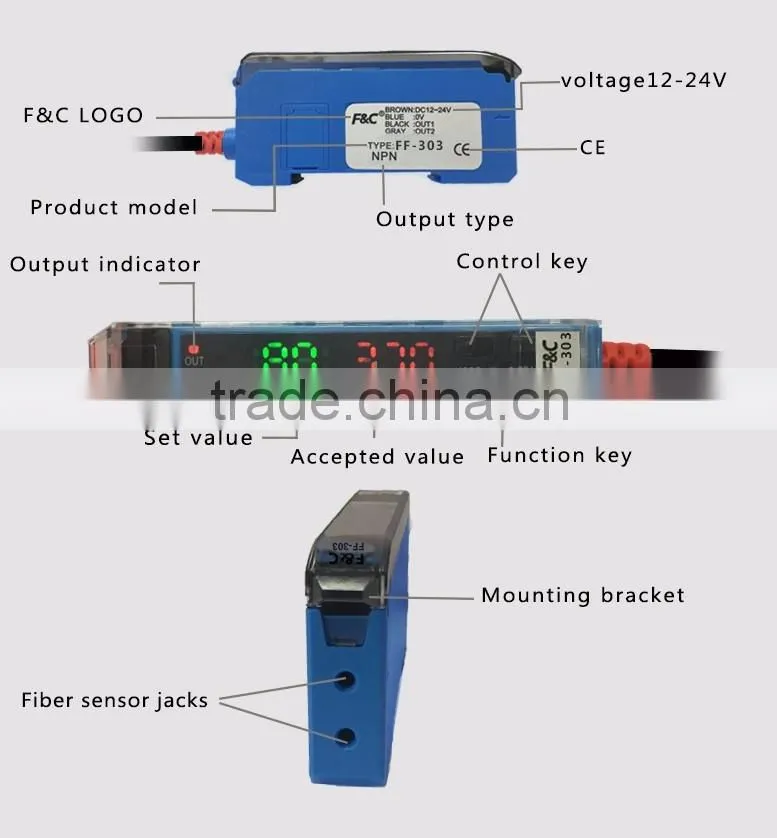

Product Display

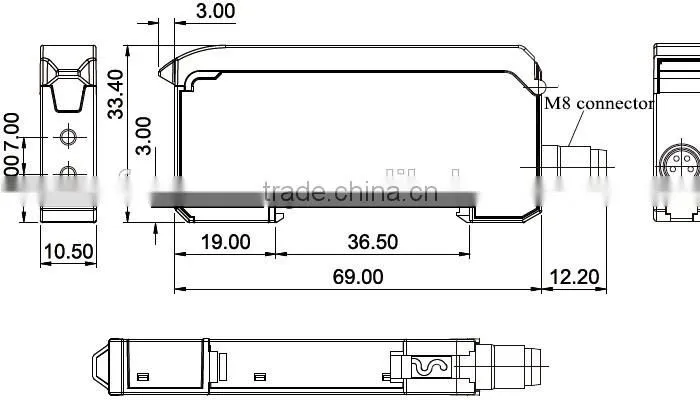

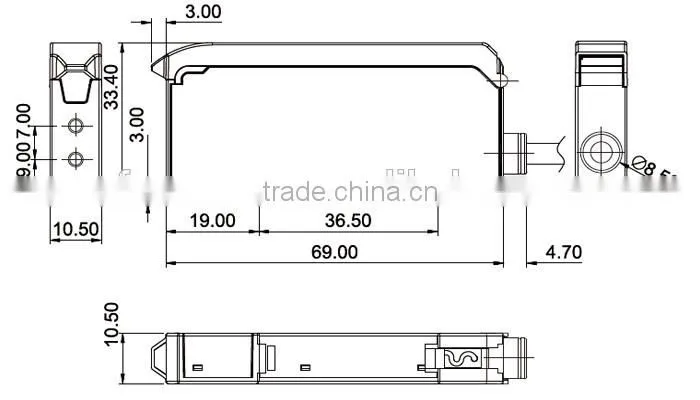

Dimension Drawing

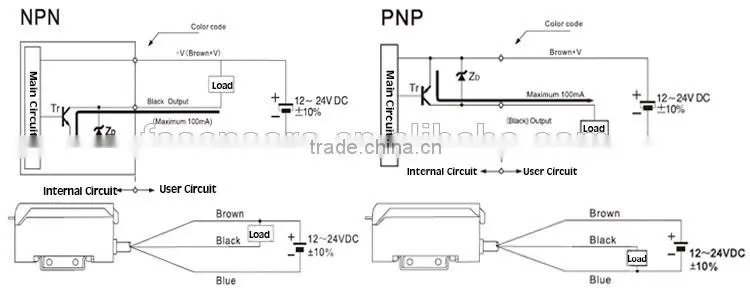

Wiring Drawing
