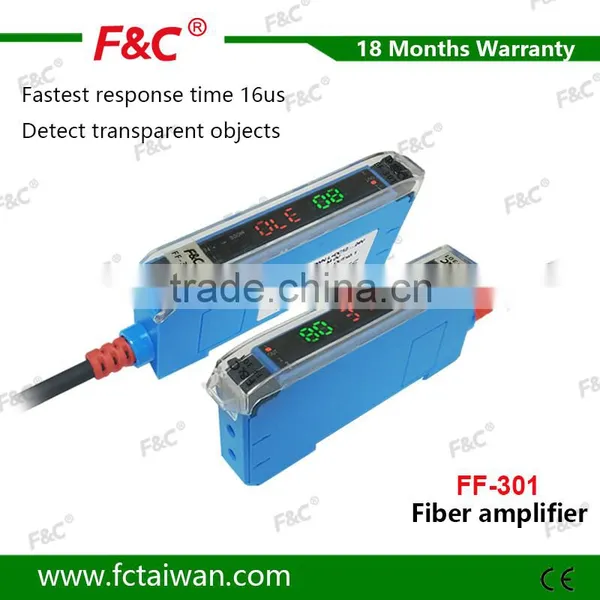

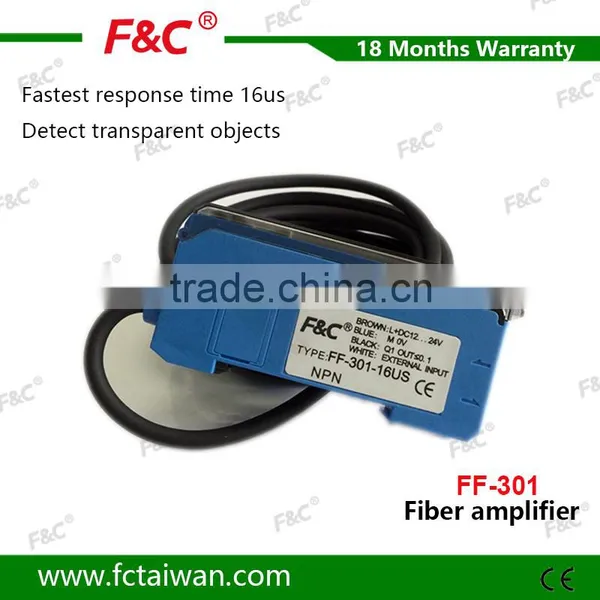

Professional manufacturer and supplier to 24V fiber optic amplifier
| F&C low price NPN Type fiber optic amplifier | |
| Model | FF-301 |
| Output Mode | NPN |
| Operating Voltage | 12~24V DC |
| Reaction Time | 16us |
| Timer Function | 40ms OFF Delay timer |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short-circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~50℃ |
| Operating Humidity | 35~85%RH |
| Waterproof Grade | IP64 |
| Material |
Shell: heat-resistant ABS, cover: polycarbonate fiber optic sensor fixed rod: PPS |
| Weight | 65g |
| Accessory | Mounting Bracket |
| Connecting Method | Pre-wired wires |
Features advantages:
1. Thin volume, 10mm thin to install side by side.
2. Multi-turn sensitivity adjustment, low price and general-purpose.
3. Shipping from Factory directly with 18 months quality warranty.

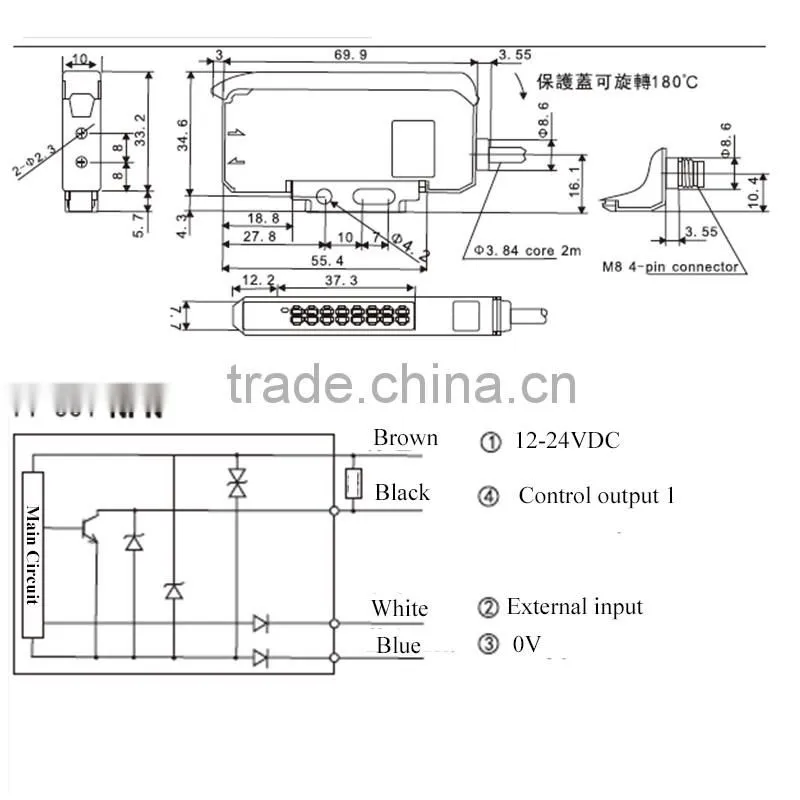

Dimensions

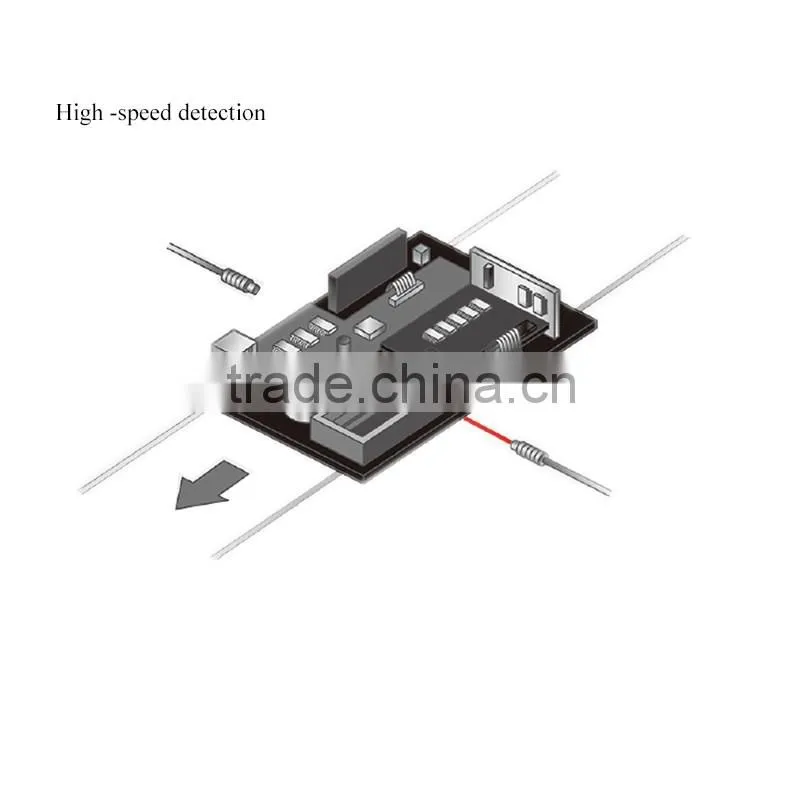

Application
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
1. Prompt reply to our customer, all customers will be replied within 24 hours.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory
in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been
sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity
Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and material
application, Our Target is “What you need can be found in F&C Sensing Technology”
