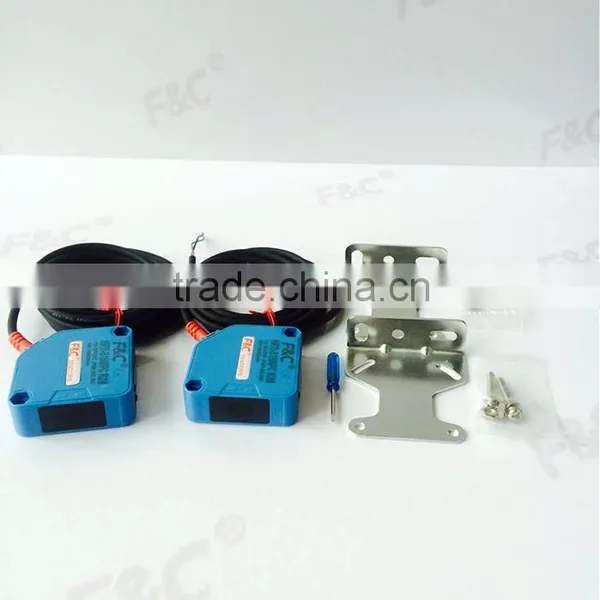

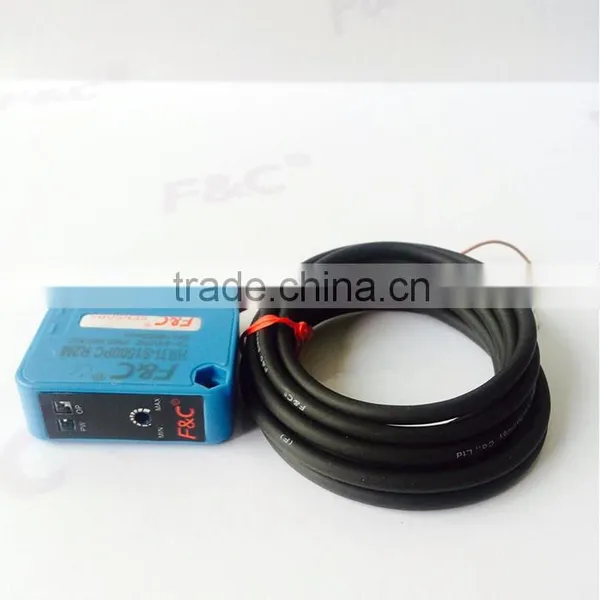

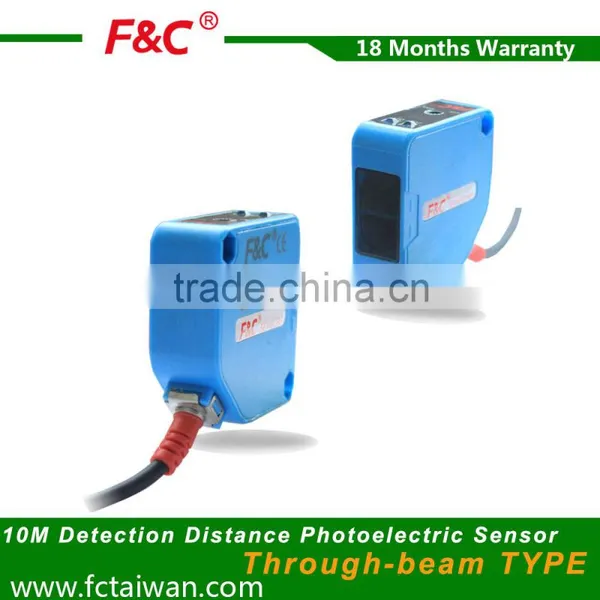

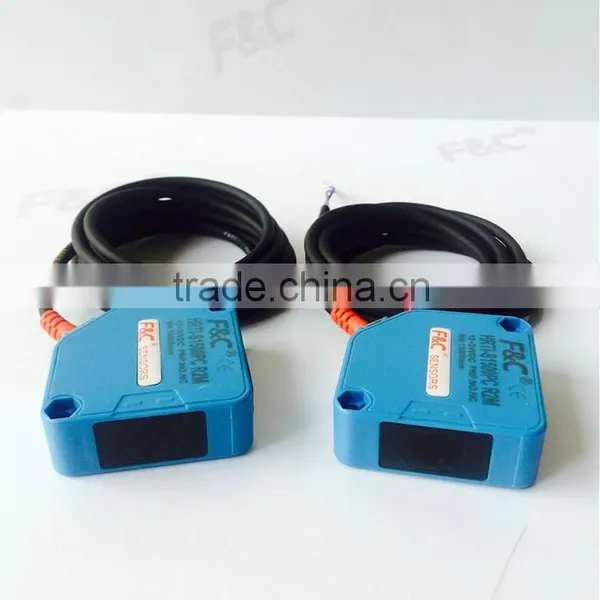

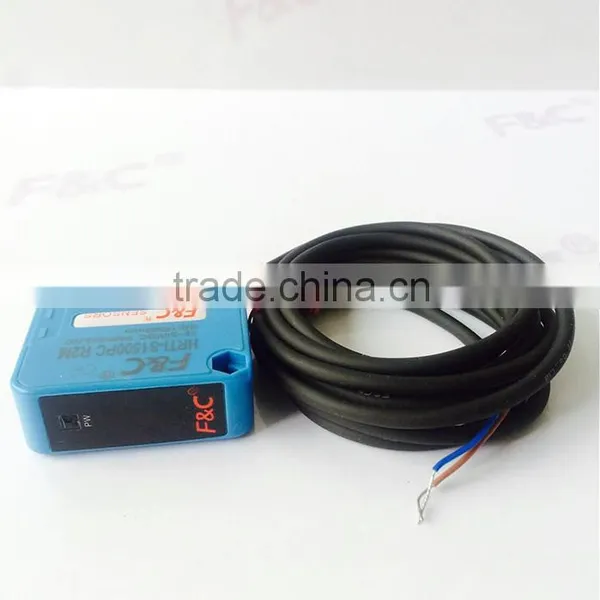

HR series long distance 10m sensing infrared12-24V dc through-beam photoelectric sensor
Feature of HR series photoelectric switch sensor
1.Retro-reflective photoelectric sensor detection distance can reach 6m.
2.Through-beam photolectric sensor detection distance can reach 15m.
3.Mannual setting normal open or normal close funcation.
4.Good anti-interference ability.
Product Specification
| Model | HRTI-S1000NC R2M |
| Output Method | NPN NO+NC |
| Detection Type | Through-beam |
| Standard Detection Object Size | Diameter 5mm opaque object |
| Detection Distance | 10m |
| Light Source | 850nm infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |

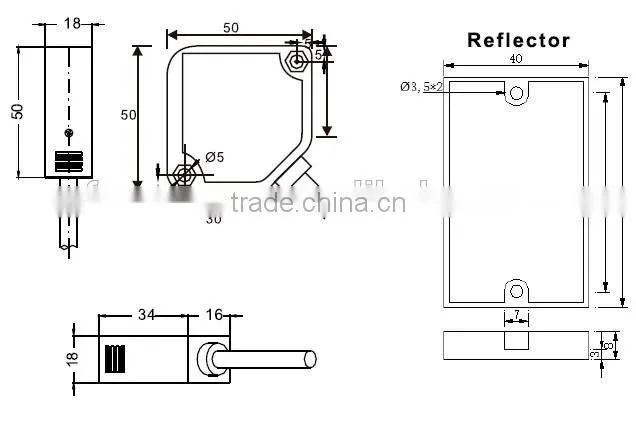

Dimension Drawing

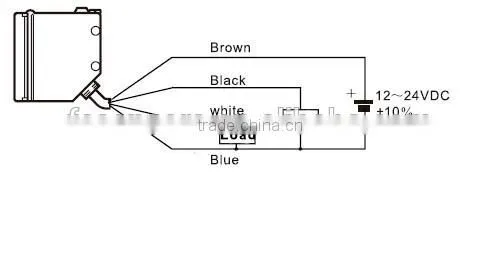

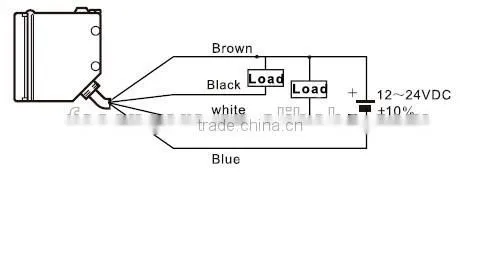

Wire Drawing
NPN NO+NC
PNP NO+NC
