Home > Electrical & Electronics > Sensor > Pressure Sensor > CR-10/40/100 Series Rectangular Photoelectirc Sensors, 10cm/40cm/100cm Diffuse Photoelectric Switches

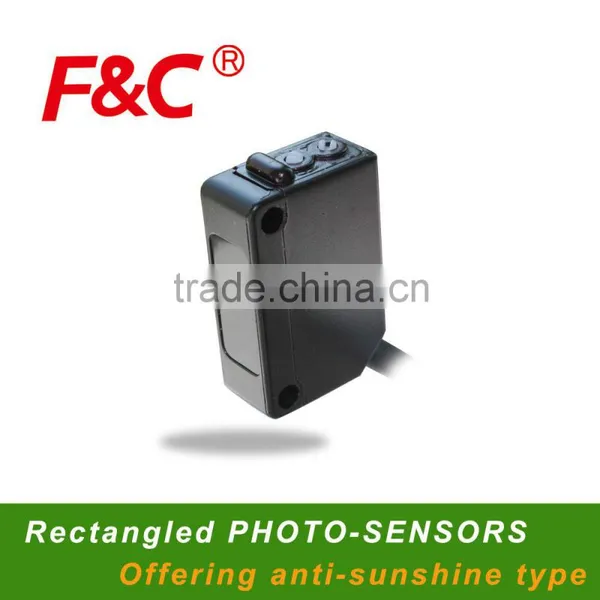

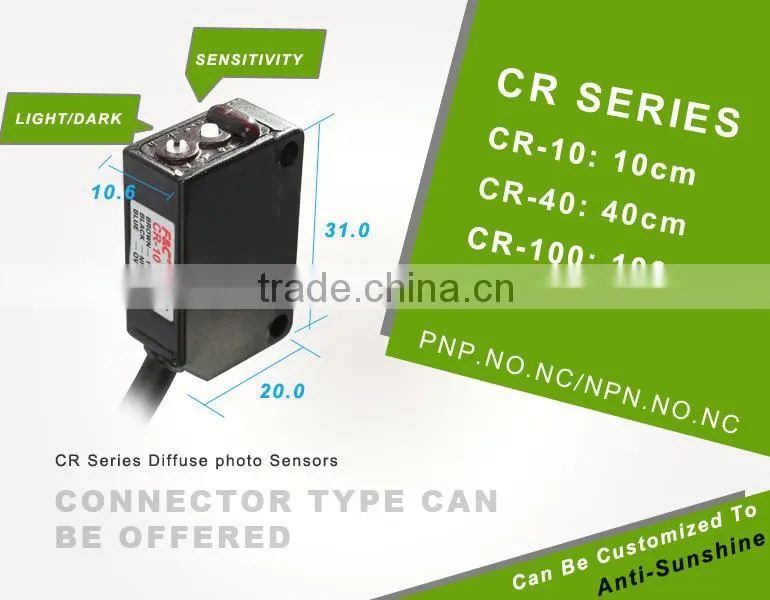

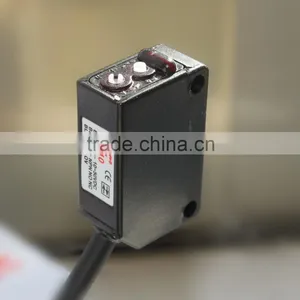

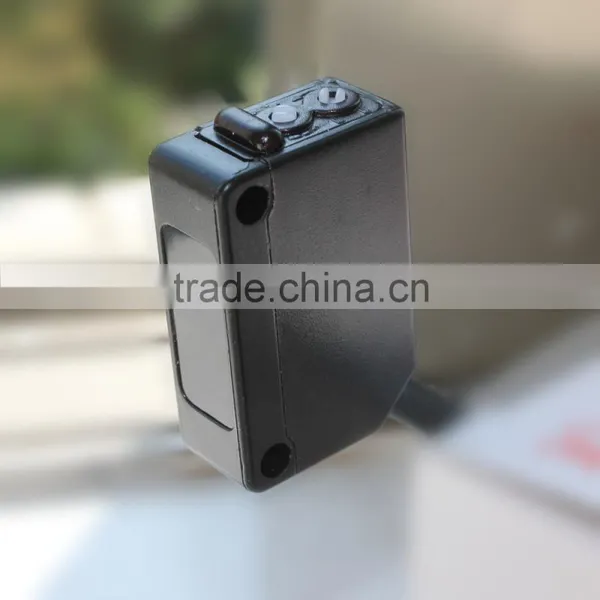

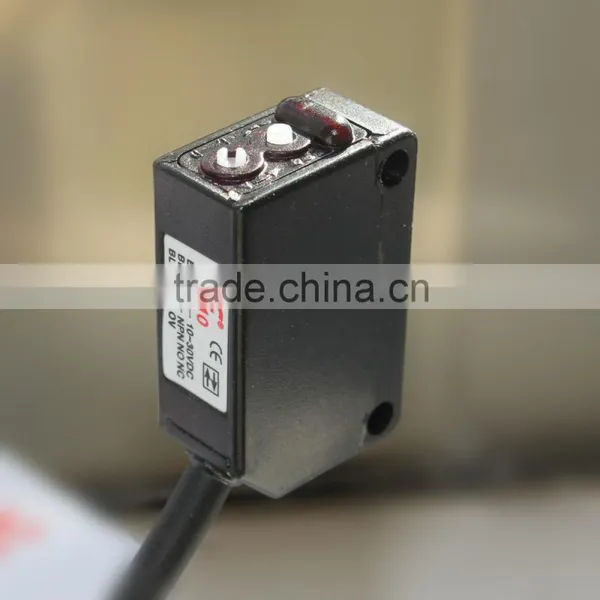

CR-10/40/100 Series Rectangular Photoelectirc Sensors, 10cm/40cm/100cm Diffuse Photoelectric Switches
US$ 12 - 18
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
CR diffuse series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Transparent Film Or Glass Bottle Detection, YS3F-T100N Series Photo Sensor, With a Reflector Type.US$ 25 - 50MOQ: 5 Pieces -
FC-spx315, U Shape Photo Sensors Switches, 15mm Sensing Slot, Fork Sensor, Slot Sensor.US$ 10 - 30MOQ: 10 Pieces
-
5vDC Can Be Offered, 5mm Slot, Circuit Protected, 12~24VDC U Shape Sensor, NO/NC TogetherUS$ 3 - 7MOQ: 5 Pieces
-
F&C With Tube For Protecting 4-wire, 2m Cable, NPN/PNP Together, FC-spx305 Series, Groove Sensor.US$ 3 - 7MOQ: 5 Pieces
-
5mm Slot Photoelectric Sensor, 4-wire, 2m Cable,12~24VDC , FC-spx304 Series, NPN/PNP Output.US$ 3 - 7MOQ: 5 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
CR diffuse series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
| Category |
Model |
Detection mode |
Detection distance |
smallest objects |
Entry cable |
| Diffuse | CR-10 CR-10/15D |
NPN.NO.NC | 10cm | 10mm*10mm white paper | φ4×2M/3-wires)+φ4×2M/2-wires |
| CR-10P CR-10P/15D |
PNP.NO.NC | ||||
| CR-40 CR-40/15D |
NPN.NO.NC | 40cm | 10mm*10mm white paper | φ4×2M/3-wires)+φ4×2M/2-wires | |
| CR-40P CR-40P/15D |
PNP.NO,NC | ||||
| CR-100 CR-100/15D |
NPN.NO.NC | 100m | 10mm*10mm white paper | φ4×2M/3-wires | |
| CR-100P CR-100P/15D |
PNP.NO.NC |
| Emitting light | Red LED:630nm |
| Operating voltage | DC:10~30VDC±10%(Ripple P-P:10%Max) |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Output type | N=NPN.NO.NC P=PNP.NO.NC |
| Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
| Response time | 0.3 ms Max |
| Insulation resistance | 20M Ωmin.(DC500V) |
| Voltage withstandatility | AC1000V 60Hz for 60 Sec |
| Operating temperature | -10°C~+45°C(No freezing allowed ) |
| Ambient hunidity | 35%~85%RH |
| Storage temperarure | -10°C~+55°C(No freezing allowed ) |
| Storage hunidity | 35%~95%RH |
| Material | ABS |
| Wiring method | φ4×2M/3-wires/φ4×2M/2-wires |
| Protection degree | IP64 can customied IP67 |
| Weight | Approx.20g |
Diagram
