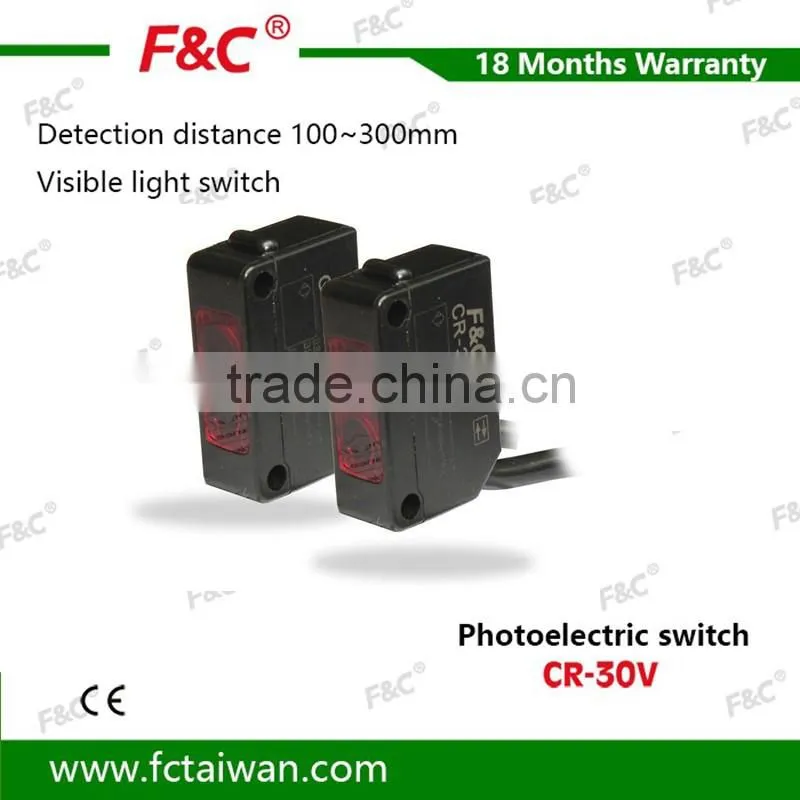

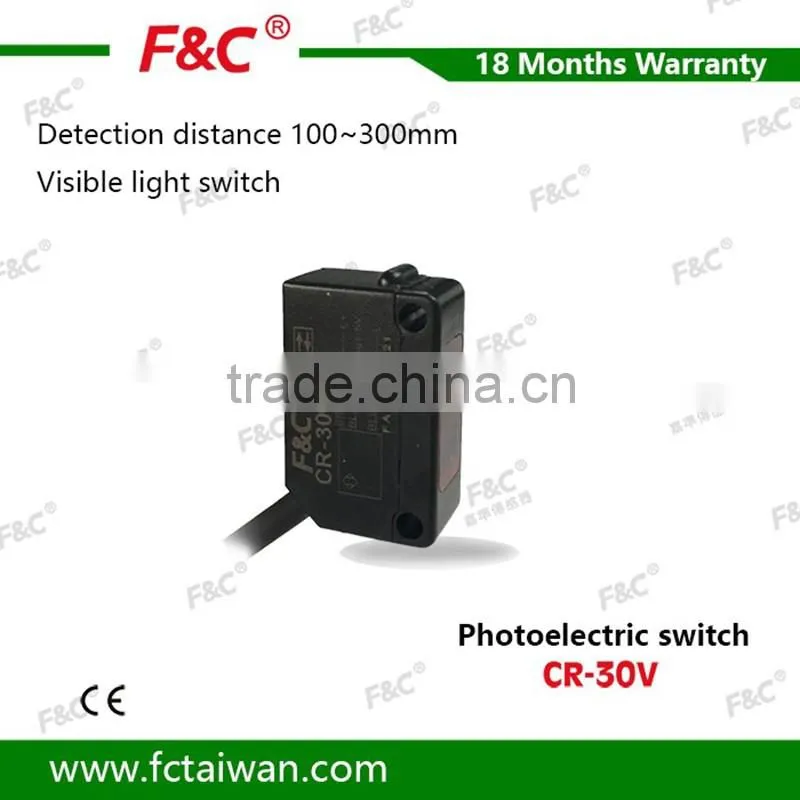

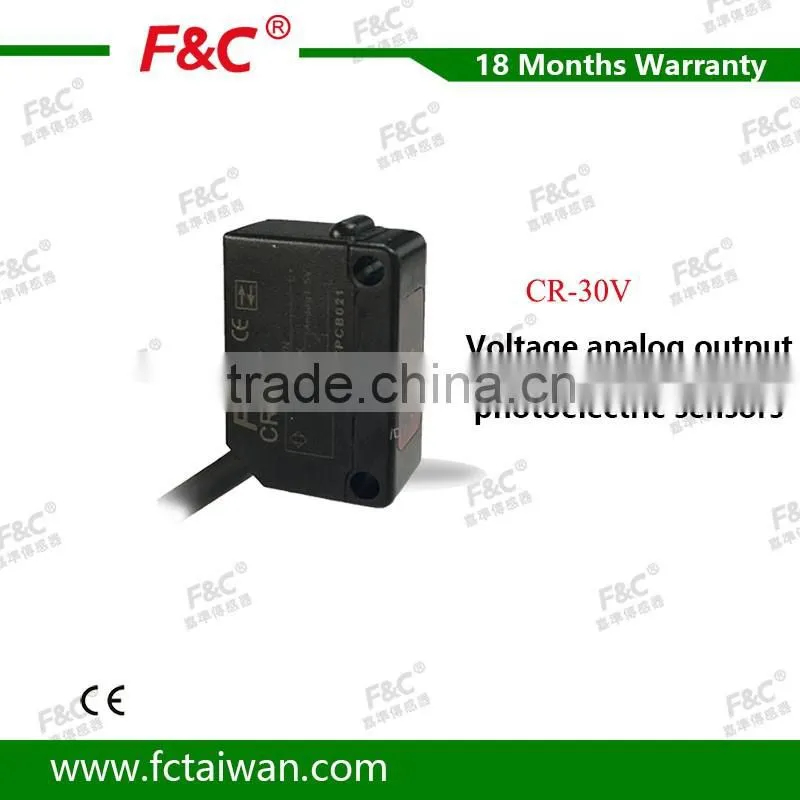

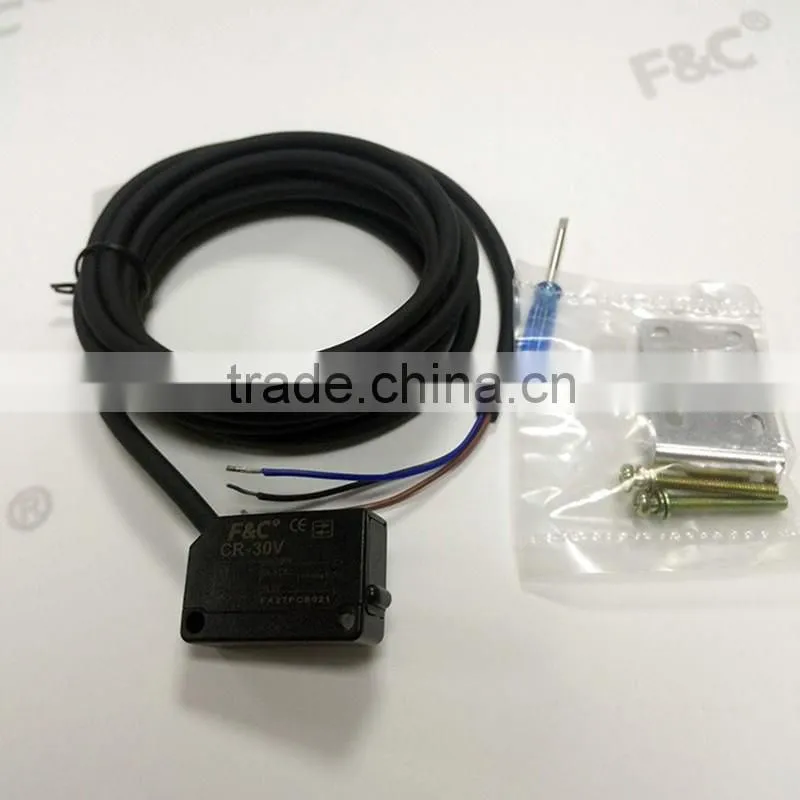

High quality F&C CR series photoelectric sensors CR-30V IP66 sensor switches
Specifications for IP66 sensor switches:
| Model | CR-30V |
| Detection Mode | 1-5V Voltage output analog |
| Detection distance | 100-300mm |
| Standard sensing object | 10mm*10mm paper |
| Response time | 0.5ms Max |
| Response Frenquency | standard 600Hz, different frequencies customized |
| Opearting voltage | 12-24VDC |
| Loard current | 100mA Max at DC 24V |
| Operating temperature | -10 to +50 degree(no ice and condensation) |
| Material | ABS |
| Protection degree | IP66 |
Features advantages for IP66 sensor switches:
1. Ideal for general-purpose logistics photoelectric switch device.
2. Around 100-300mm detecting distances.
3. Water-proof IP66.
4. Global(EN Specifications and NPN,PNP applicable.
5. OEM order accepted, 18 months warranty.
Know more information about the products, welcome to contact me at any time via skype: Jelena_wang2016

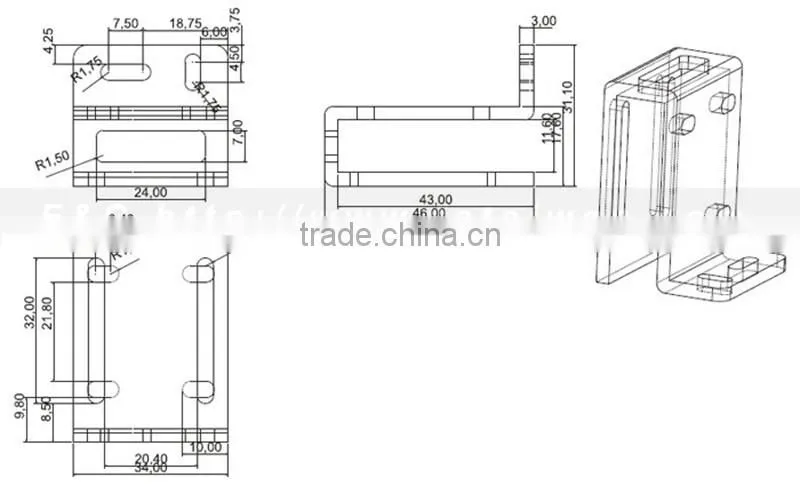

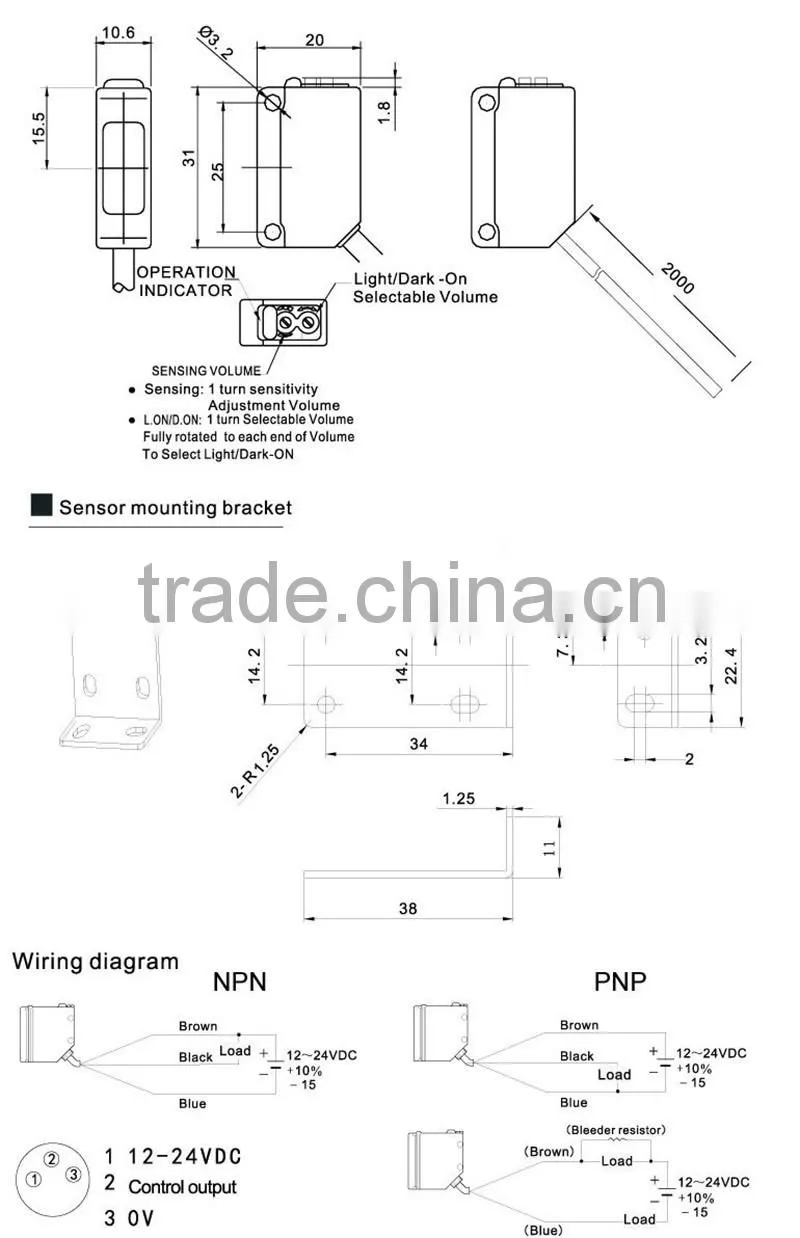

Dimensions for IP66 sensor switches:
1. Prompt reply to our customer, all customers will be replied within 24 hours.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory
in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been
sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity
Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and material
application, Our Target is “What you need can be found in F&C Sensing Technology”
