M18 5m sensing range 12-24v dc Through-beam NPN NO photoelectric sensor
Feature
1. Through-beam, retro-reflective, diffuse photoelectric switches for option
2. Detection distance is adjustable.
3. Integrated structure, waterproof grade can reach IP66
4. 90 degree connecting and direct connecting are available.
5. 360 degree view LED indicator, red protective sleeve and flexible soft cable.
DR18 5m sensing range model
| Connecting Wires | Model | Sensing Distance | Output Method |
| 3-wire | DR18TI-S500N R2M | 5m | NPN NO |
| DR18TI-S500N2 R2M | 5m | NPN NC | |
| DR18TI-S500P R2M | 5m | PNP NO | |
| DR18TI-S500P2 R2M | 5m | PNP NC | |
| 4- wire | DR18TI-S500NC R2M | 5m | NPN NO+NC |
| DR18TI-S500PC R2M | 5m | PNP NO+NC |

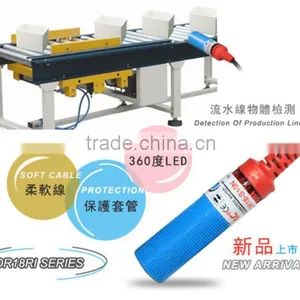

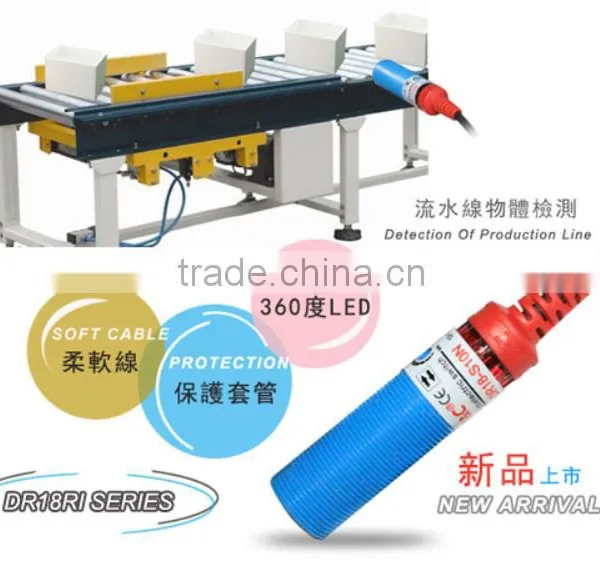

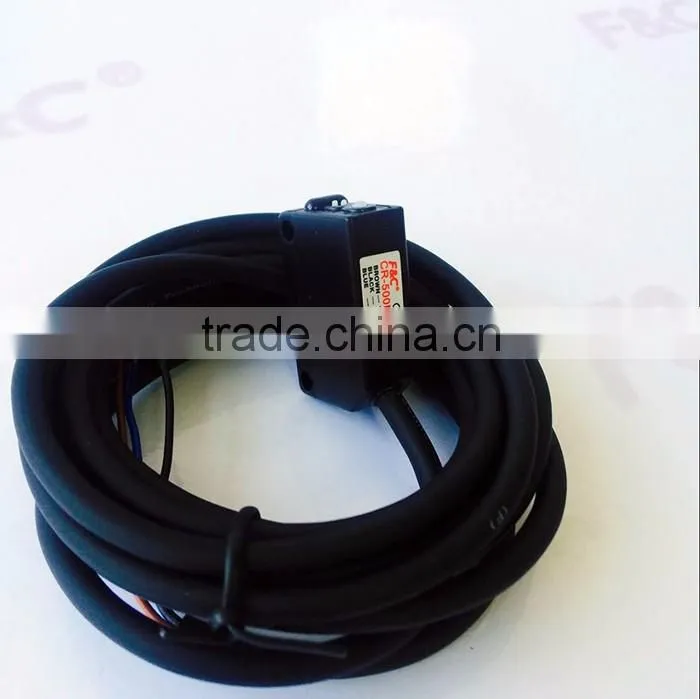

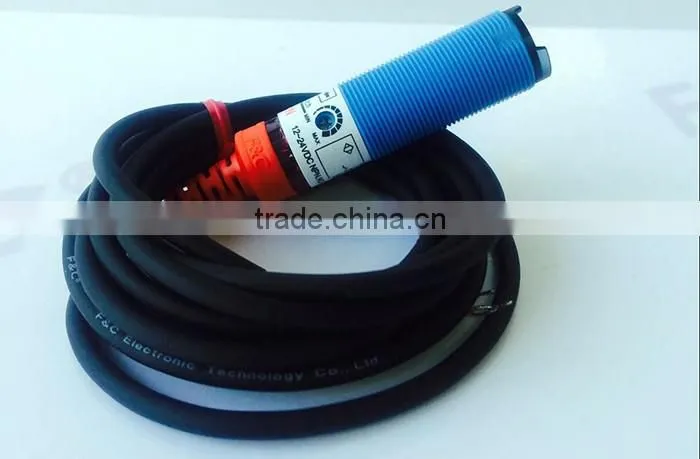

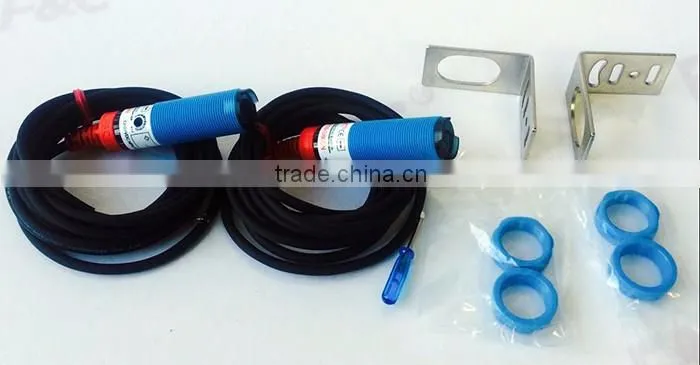

Product display
Product Specification
| Model | DR18TI-S1500N R2M |
| Output Method | NPN NO |
| Detection Type | Through-beam |
| Standard Detection Object Size | diameter 5mm opaque objects |
| Detection Distance | 5m |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
More Product
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification. Our main product include
Fiber Optic Sensor, Fiber Optical amplifier, Fiber Optical Lens, Proximity Sensor,
Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,
Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application. Our Target is “What you need can be found in F&C Sensing Technology”
Welcome to contact with me.
Skype:lynn_liu123
Tel/ Wechat:+86 13809275350
