Home > Electrical & Electronics > Sensor > Pressure Sensor > FD Series AL Metal Housing, Magnetic Sensors, Magnetic Reed Switch / Firm Structure, Long LIfe, Prevent Damage.

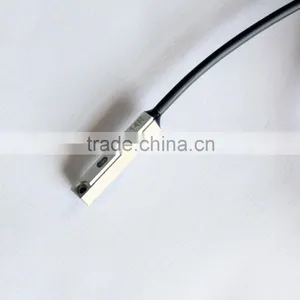

FD Series AL Metal Housing, Magnetic Sensors, Magnetic Reed Switch / Firm Structure, Long LIfe, Prevent Damage.
US$ 3 - 6
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FD series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FKC2210 Series, 10mm Sensing Range Capacitive Sensor, NPN/PNP Offered, Can Be Customized!~US$ 10 - 30MOQ: 20 Pieces -
FKC3430 Series Diameter 34mm Capacitive Proximity Sensor, Sensing Range 30mm, Long Range Capacitive Sensor.US$ 20 - 30MOQ: 20 Pieces
-
FKC3020 Series M30 Capacitive Proximity Sensor, With Red Tube Protected From Damage, 3-wire, NPN/PNP, Max 20mm Sensing Range.US$ 20 - 30MOQ: 20 Pieces
-
F3C-10WSM02 Series M10 Proximity Sensor, Amplifier Outside, Short Length Housing, Flush/NPN/PNP/NO/NC Offered.US$ 15 - 25MOQ: 20 Pieces
-
F3C-5.4WSQ1.2 Series M5 Proximity Sensor, Amplifier Outside, Short Length Housing, Flush/NPN/PNP/NO/NC Offered.US$ 15 - 25MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FD series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer

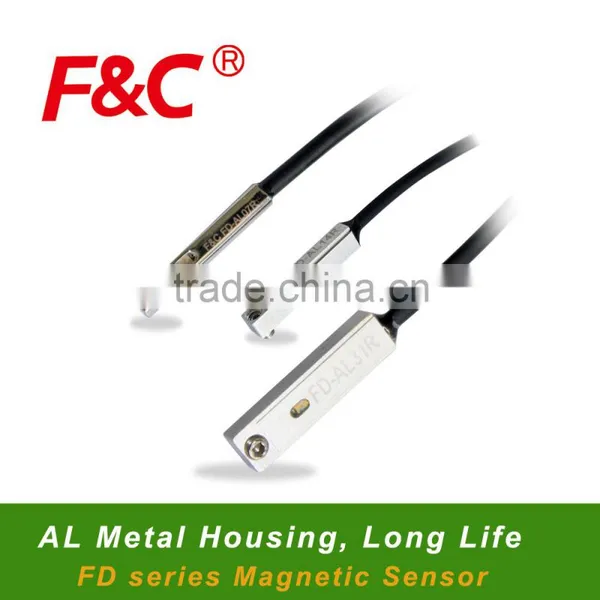

FD series Magnetic Sensor, Reed Switch, Cylnder Sensor
Model Guide
| Part Number | Output Method | Working Voltage | Output Currents |

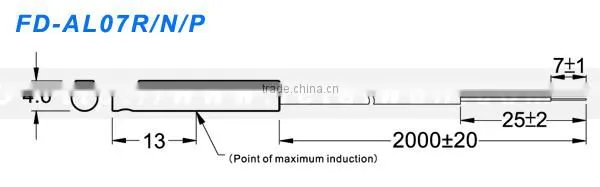

| FD-AL07R | Reed Switch, Normally Open | 5~240 VDC/AC | 10W/100mA Max |
| FD-AL07N | Non-touch, NPN.NO | 5~30VDC | 6W Max 100mA Max |
| FD-AL07P | Non-touch, PNP.NO | ||

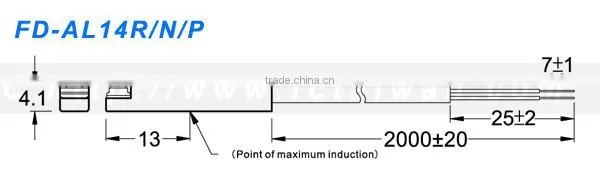

| FD-AL14R | Reed Switch, Normally Open | 5~240 VDC/AC | 10W/100mA Max |
| FD-AL14N | Non-touch, NPN.NO | 5~30VDC | 6W Max 100mA Max |
| FD-AL14P | Non-touch, PNP.NO | ||

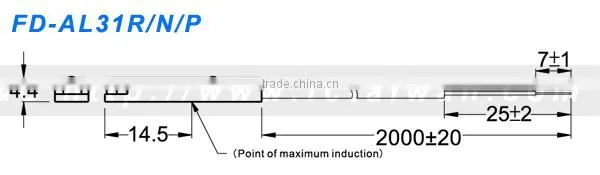

| FD-AL31R | Reed Switch, Normally Open | 5~240 VDC/AC | 10W/100mA Max |
| FD-AL31N | Non-touch, NPN.NO | 5~30VDC | 6W Max 100mA Max |
| FD-AL31P | Non-touch, PNP.NO |
Specification
| Sensing Method1 |
Normally Open | without contacting, Normally Open | without contacting, Normally Open |
| Sensing Method2 |
with contacting | without contacting NPN | without contacting PNP |
| Working Voltage |
5~120DC/AC | 5~30VDC | 5~30VDC |
| Max Current |
100mA Max. | 200mA Max. | 200mA Max. |
| Max Contact Capacity | 3.5W Max. | 6W Max. | 6W Max. |
| Internal Current Consumption | No | 14mA Max.@24V | 11mA Max.@24V |
| Residual Pressure Drop | 2.5V Max.at 10mA DC | 2.5V Max.at 10mA DC | 2.5V Max.at 10mA DC |
| Leakage Current | No | 0.01mA Max. | 0.01mA Max. |
| Indicator | Red LED | Red LED | Green LED |
| Cable | φ2.8,2C/ Gray anti-oil PVC | φ2.8,2C/Gray anti-oil PVC | φ2.8,2C/ Gray anti-oil PVC |
| Max Switching Frequency | 1000Hz | 1000Hz | 1000Hz |
| Working Temperature | -10°C~70°C | -10°C~70°C | -10°C~70°C |
| Impact Resistance | 30G | 50G | 50G |
| Shock Resistance | 9G | 9G | 9G |
| IP level | IP67 | IP67 | IP67 |
| Circuit Protection |
No | Yes | Yes |

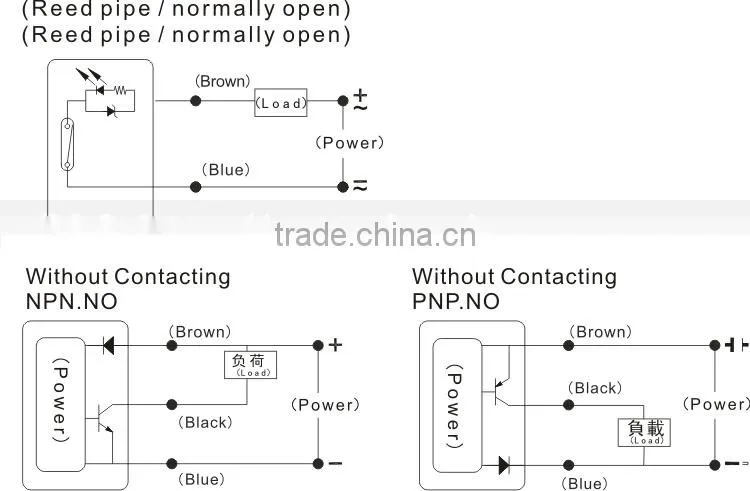

Diagram
