Q6 SN1mm 12-24V DC Small Square Inductive Proximity Sensor With CE
US$ 8.8 - 13.32
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3N-06DN01-NR2M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen;Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FKCT15-N 12-26mm Pipeline Liquid Level Sensor, Capacitive Proximity Sensor for Sales Most PopularUS$ 17.25 - 25.88MOQ: 1 Piece -
High Repeatability NPN NO Front Square Inductive Proximity Sensor SwitchUS$ 10 - 30MOQ: 1 Piece
-
F&C 3 or 4 Wires 4mm High Repeatability Inductive Proximity Switch FSNDM04-N Quality ChoiceUS$ 15 - 30MOQ: 1 Piece
-
D3mm Small Inductive Proximity Switch With In-cable AmplifierUS$ 16.34 - 26.96MOQ: 1 Piece
-
Diameter 14 mm NPN PNP 4mm Sensing 12-24v Proximity Sensor Switch With In-cable AmplifierUS$ 16.34 - 26.96MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3N-06DN01-NR2M
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Q6 SN1mm 12-24V DC small square inductive proximity sensor with CE
Product Description
Specification
| Model | Induction Direction | Output Method | ||
| F3N-06DN01-NR2M | Top Induction | NPN NO | ||
| F3N-06DN01-N2R2M | Top Induction | NPN NC | ||
| F3N-06DN01-PR2M | Top Induction | PNP NO | ||
| F3N-06DN01-P2R2M | Top Induction | PNP NC | ||
| Sensing distance | 1mm | |||
| Standard Detection Object | 6×6×1(iron) | |||
| Response Frequency | 600HZ (Different Frequency can be customized) | |||
| Hysteresis | within 10% of sensing distance | |||
| Operating Voltage | 10-30V DC | |||
| Protection circuit | Reverse circuit protection short circuit protection | |||
| Operating Temperature | -25~70℃ | |||
| Protection Degree | IP67(can customeize IP68) | |||
| Material | PBT and SUS | |||
| Wire Method | 1.dia 3×2M/3 wires 2dia 3×2M/2 wires | |||
Feature
1.Competitive price
2.suitable for narrow space and easy to install.
3.Front Induction and Top Induction for chooice
4.Integrated structure, waterproof, dustproof and oilproof.
5.Accept customized 5VDC proximity switch sensor.
6.Accept OEM order
F&C Square sensor: Q6,Q8,Q10,Q15 Q17, Q18,Q25, Q30 Q40.
Know more details, welcome to set up an call by cellphone +86 13319542018 and wechat/skype:lynn_liu123.

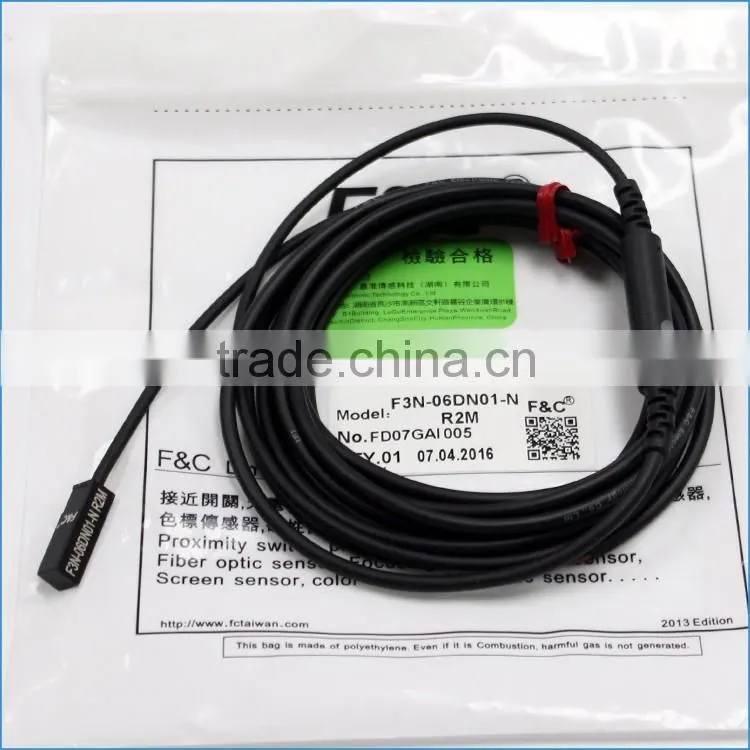

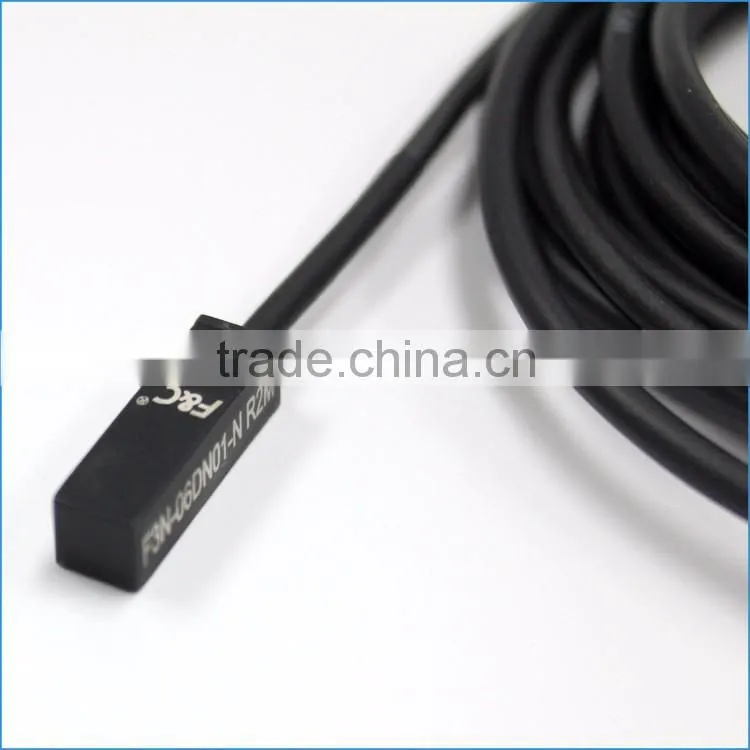

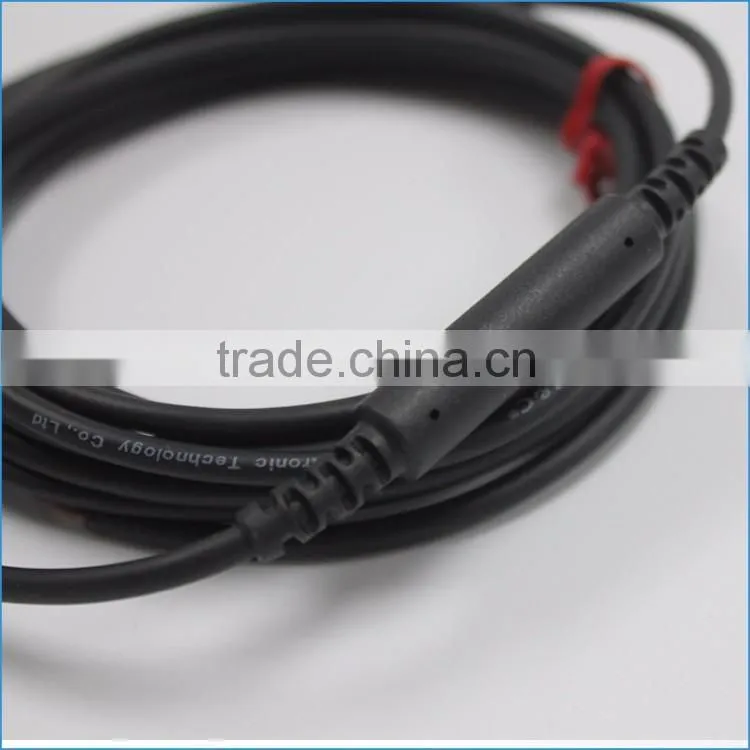

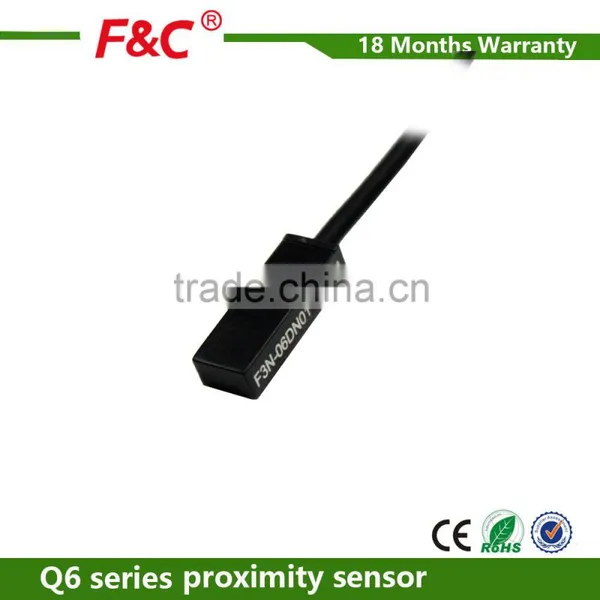

photo for square inductive proximity sensor
Q6 SN1mm 12-24V DC small square inductive proximity sensor with CE
Product Drawing

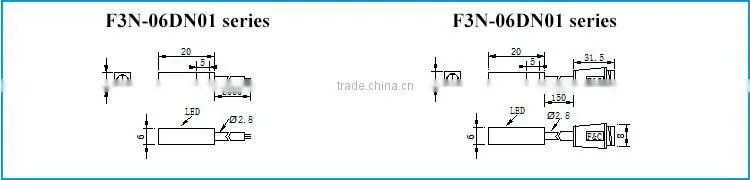

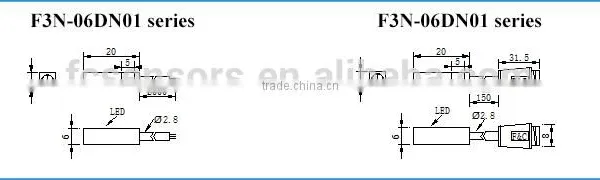

Dimension Drawing

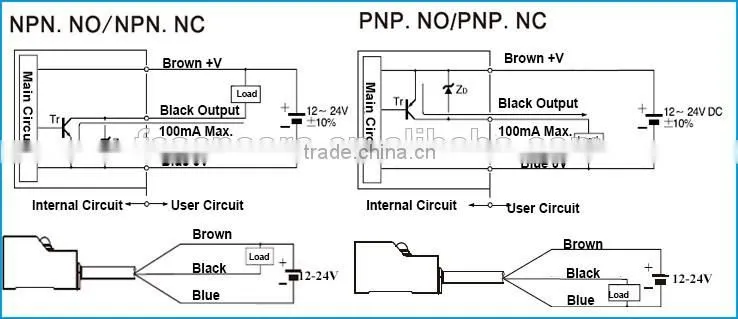

Wiring Drawing
