M18 SN10mm capacitive proximity sensor for liquid level detection
Application
F&C capacitive sensor has different dimension for different application shown as below.
However, all F&C sensor has use world 1st class electronic component, red protective seleeve, good quality control process.
so F&C sensors is more durable and has perfect function.All the sensor will be shipped from factory directly and 18 months warranty.
M18 SN10mm capacitive proximity sensor for liquid level detection
FKC1810-N NPN NO
FKC1810-N2 NPN NC
FKC1810-P PNP NO
FKC1810-P2 PNP NC
Specification
| M18 SN10mm capacitive proximity sensor for liquid level detection | |
| Model | FKC1810-N |
| Detection Distances | 10mm |
| Standard Sensing Object | 30*30*1mmNon-Metal |
| Response Frequency | 600HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | NPN NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | diameter 4mm*2M/-3wires , -4wires,-2wires |

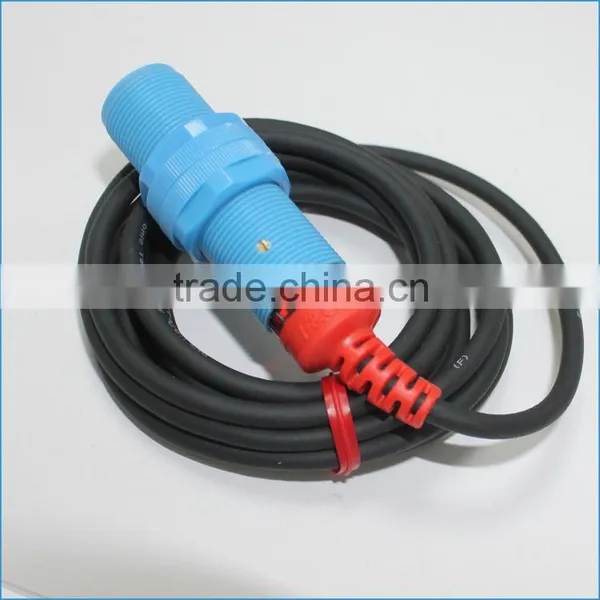

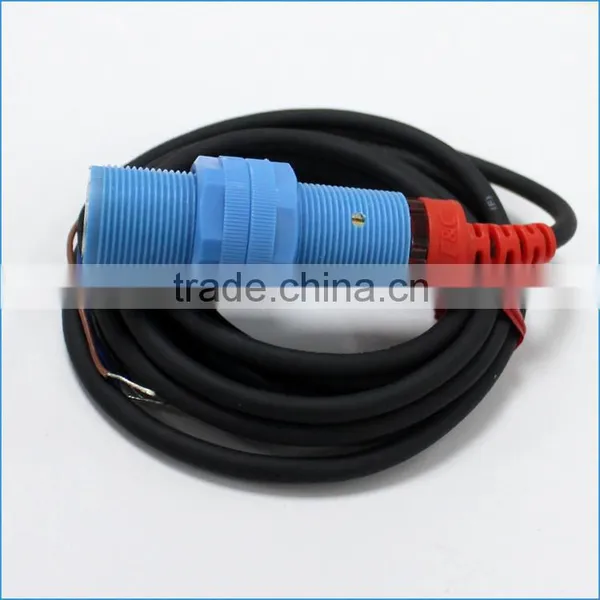

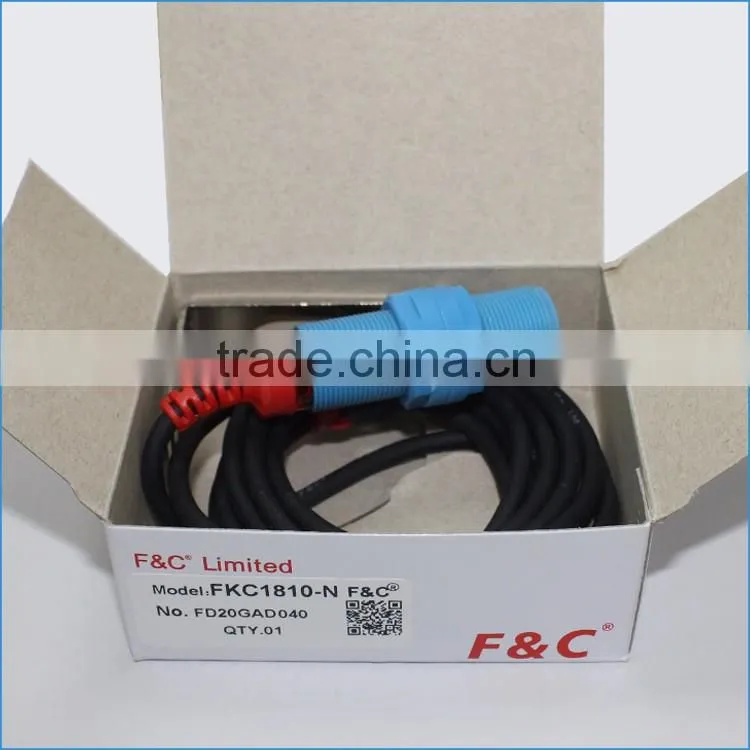

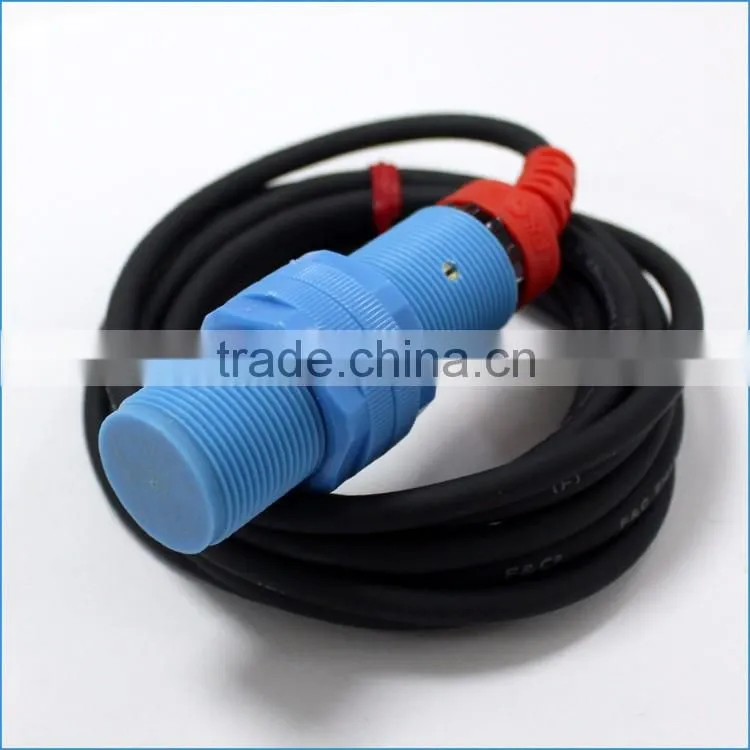

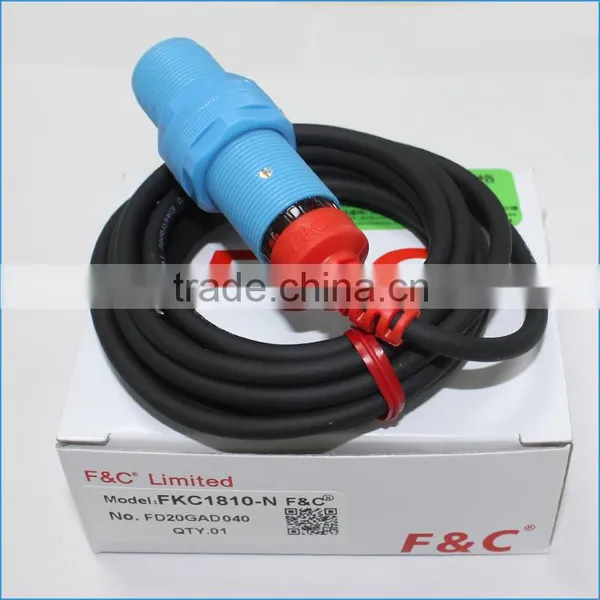

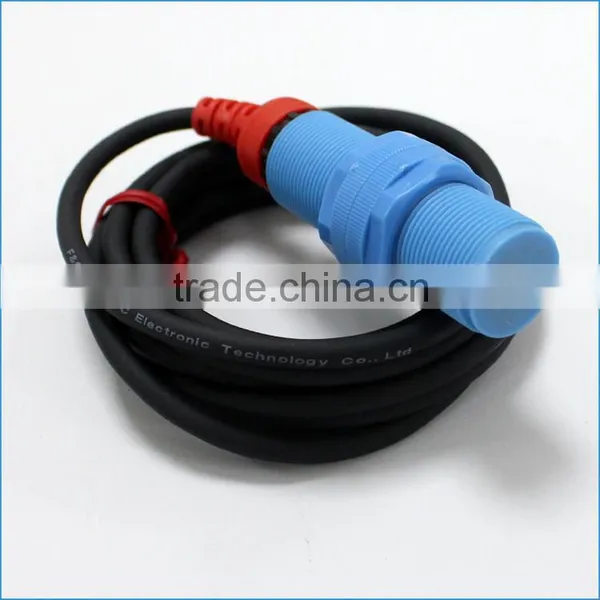

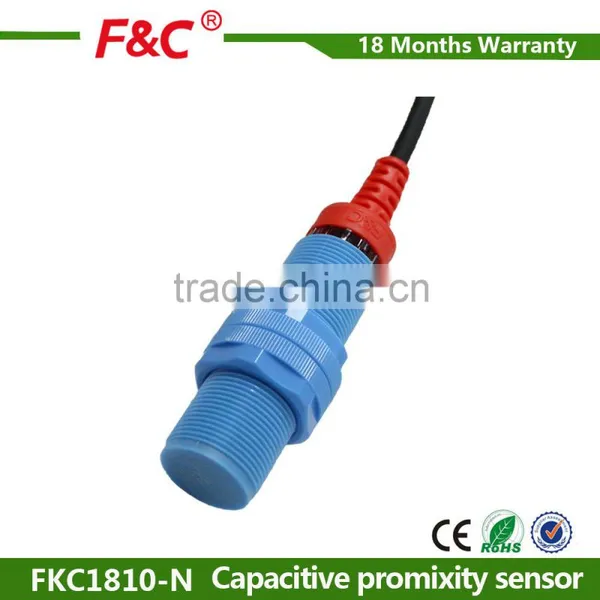

Photo for M18 SN10mm capacitive proximity sensor with CE

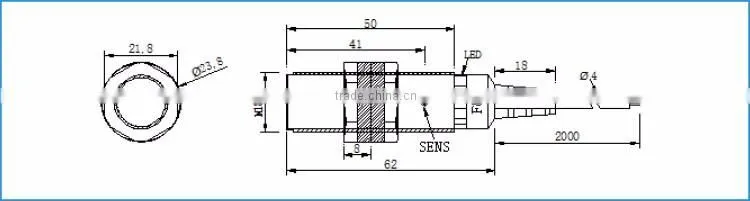

Dimension Drawing
Wiring Drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan
factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has
been sold to allover the world.Its products cover 14 series and 3000 specification.
Our main product includeFiber Optic Sensor, Fiber Optic Amplifier, Fiber Optic Lens,
Proximity Switch, Photoelectric swtch,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor,Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application.
Our Target is “What you need can be found in F&C Sensing Technology”
