5mm detection distance NPN DC 10-30V proximity sensor
Feature
1.Stable performance, reverse polarity protection and short circuit protection
2.10-30VDC build-in amplifier, direct output
3.Clear LED indicator
4.200 mA triode output , high responsing speed can reach 0.1ms
5.5V proximity and different frequency proximity switch sensor can be customized
6.5mm,6mm,8mm and other special detection distance can be customized
I can be reached by Wechat:86-13809275350 and Skype:lynn_liu123.
Specification
| 5mm detection distance NPN DC 10-30V proximity sensor | |
| Induction Direction | Front Induction |
| Model | F3N-17TN05-P R2M |
| Output Method | PNP NO |
| Detection Distance | 5mm |
| Standard Detection Object | 17×17×1(iron) |
| Response Frequency | 600HZ (Different Frequency can be customized) |
| Hysteresis | within 10% of sensing distance |
| Operating Voltage | 10-30V DC |
| Current Consumption | Less than 8mA (No Load) |
| Load Current | 100mA Max@30V DC |
| Leakage Current | 1.1mA (No Load) |
| Residual Voltage | Less than 1.0V DC (No Load) |
| Protection circuit | Reverse circuit protection short circuit protection |
| Operating Temperature | -25~70℃ |
| Protection Degree | IP67 |
| Material | ABS |
| Wire Method | dia 4*2M/3 wires |
5mm detection distance NPN DC 10-30V proximity sensor

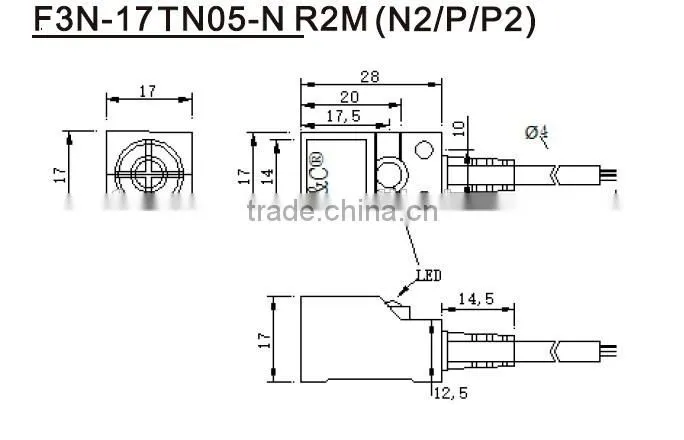

Dimension Drawing

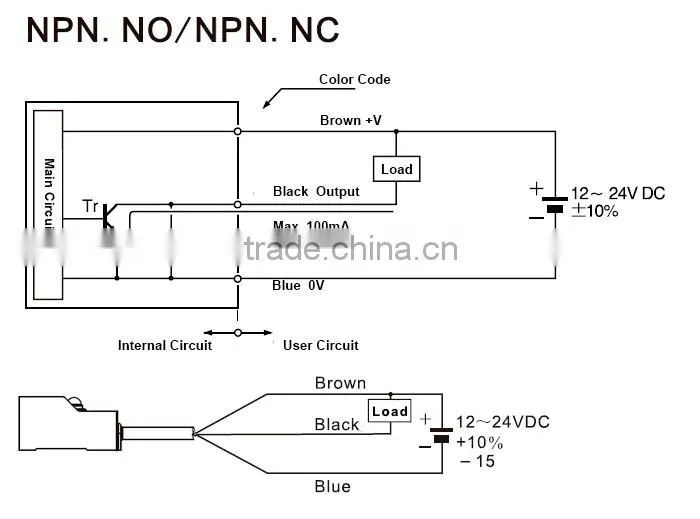

Wiring Drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China.Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber Optic Amplifier, Fiber Optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, M8 M12 female Connector, Laser Sensor, Color Sensor,Rail Power Supply and Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application. Our Target is “What you need can be found in F&C Sensing Technology”.
Note:
Customize for cable length, housing material and shape.
