F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered thumbnail-1
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered thumbnail-2
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered thumbnail-3
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered thumbnail-4
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered thumbnail-5
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered photo-1

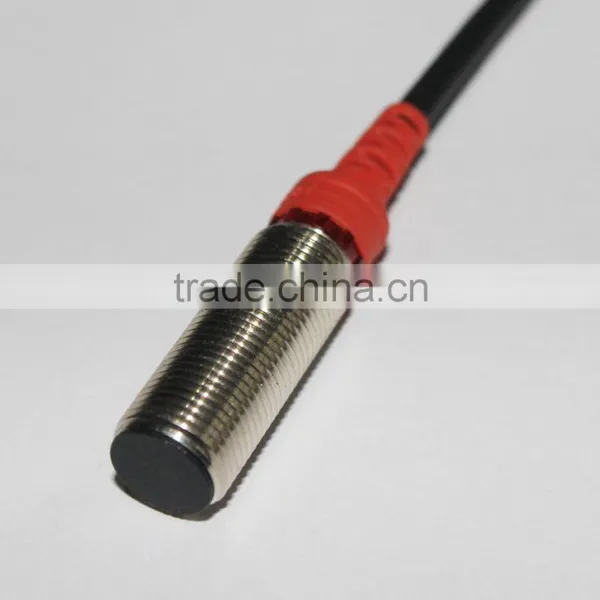

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered photo-2

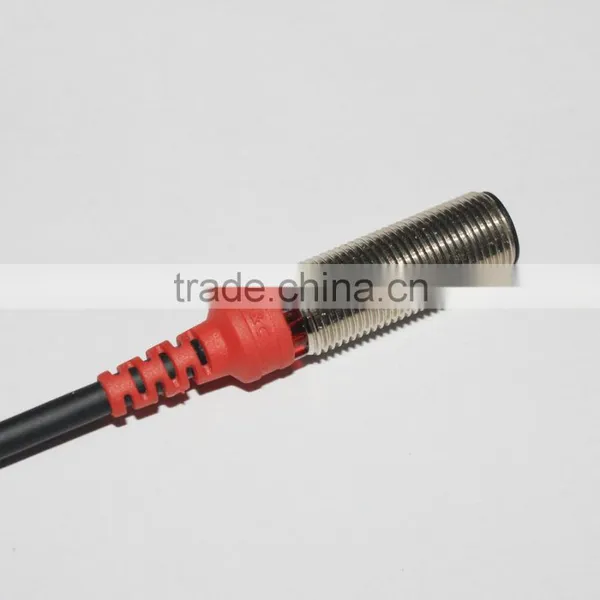

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered photo-3

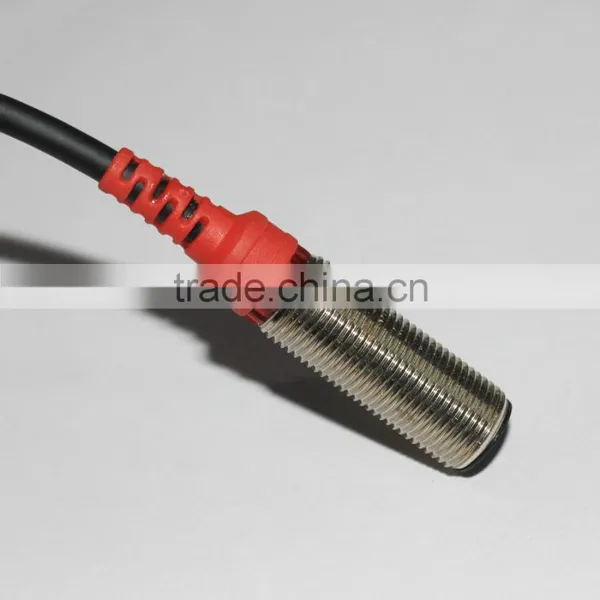

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered photo-4

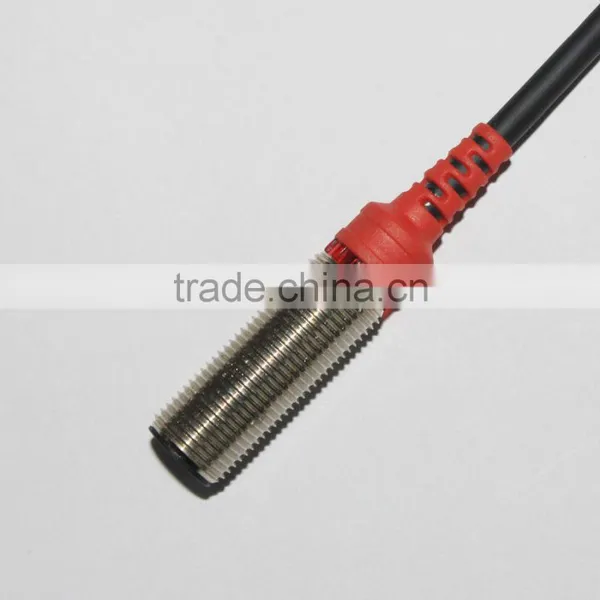

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered photo-5
US$ 5 - 10 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-12ES02-N/P
Contact Supplier Request Quote Chat Now
F&C Sensing Technology (Hunan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number F3C-12ES02-N/P
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

 F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered
F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC OfferedF&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC OfferedF&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC OfferedF&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

Product Description

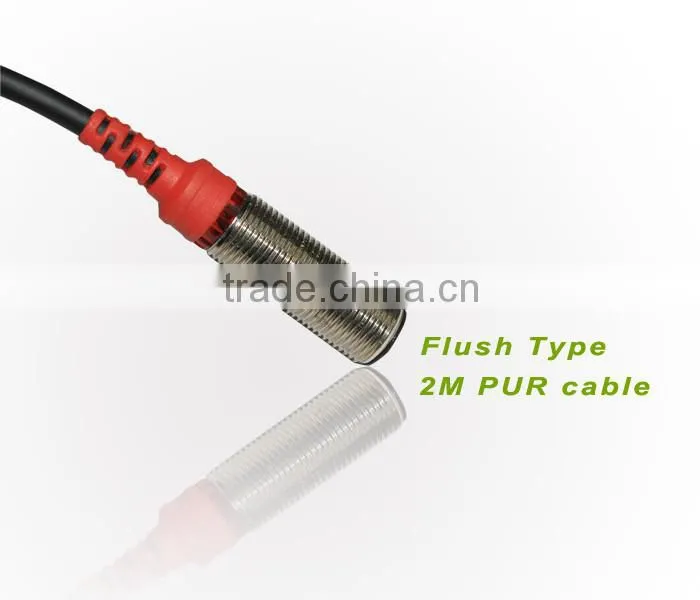

F3C series Proximity sensor
1) 2M soft PUR cable;

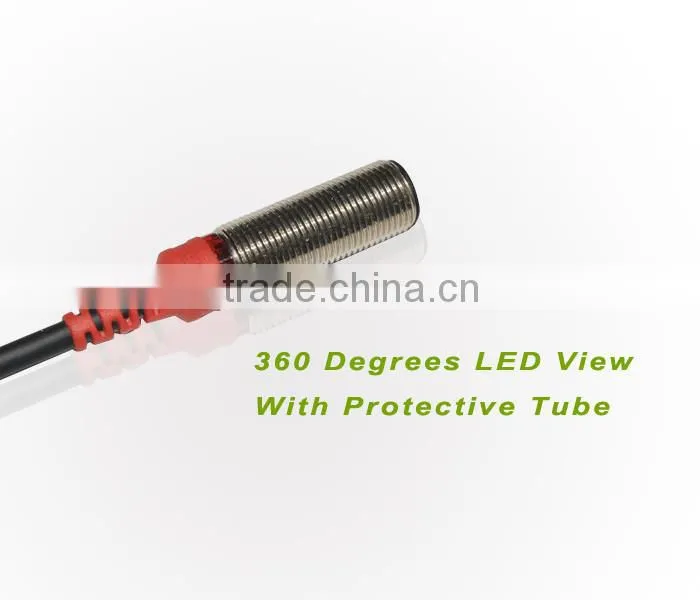

2) 360 degrees LED view;
3) With red protective tube for protecting cable;
4) Support for customizing, 5V DC offered.


Discriptions Part Numbers Output Sensing Range Detected Object Cable

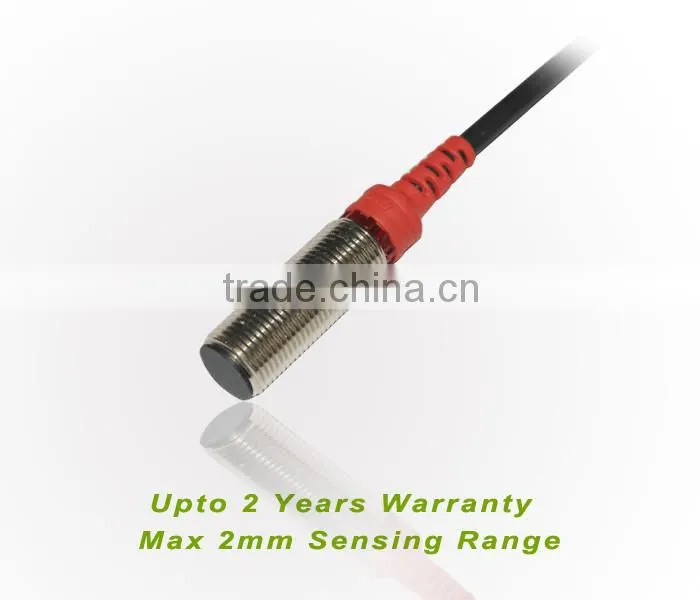

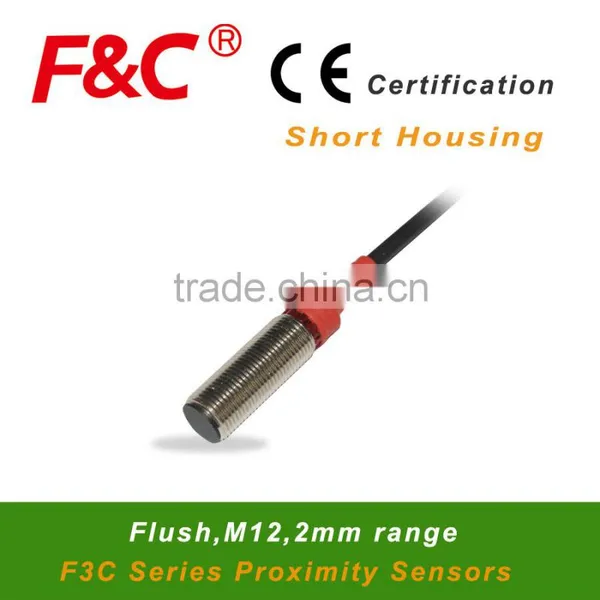

M12/Flush/Short Housing F3C-12ES02-N R2M NPN.NO 2mm 12×12×1(iron) φ4×2M/3-wires
F3C-12ES02-N2 R2M NPN.NC
F3C-12ES02-P R2M PNP.NO
F3C-12ES02-P2 R2M PNP.NC



Response frequency 1000Hz/800Hz
Hysteresis 10%≤sensing distance
Operating voltage DC:12~24VDC±10%/ can customize 5V
Current consumption DC:≤8mA No—Load
Load current DC:24V 150mA Max
Leakage current DC:≤0.01mA no-Load
Residual votage DC:≤1.5VDC No-load
Operating temperature -20°C~+70°C
Material PBTand SUS304
Wiring method 2M/3-wires
Protection degree IP67

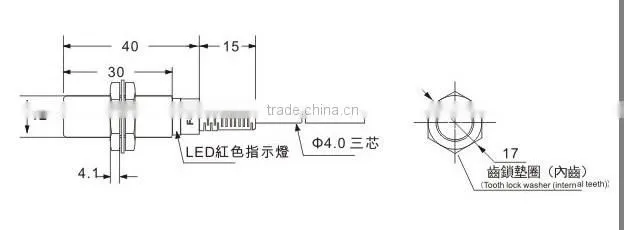

Diagram



F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered

F&C Proximity Switch F3C-12ES02 Series, M12, Short Housing Type, 12~24v DC, 3-wire, NPN.NO/PNP.NO Or NC Offered
