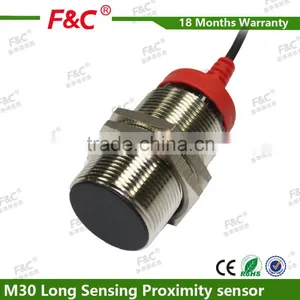

M30 DC10-30V PNP NC Inductive Proximity Sensor Switch
US$ 10 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3L-30KS15-P2 R2M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen;Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M30 5v dc PNP NO Non-Flush Inductive Proximity Sensor SwitchUS$ 10 - 20MOQ: 1 Piece -
M30 30*45mm Short Body DC10-30V NPN NO Non-shield Proximity SensorUS$ 7 - 15MOQ: 1 Piece
-
F&C M8 SN 2mm Non-shield 5v dc Inductive Proximity Sensor With CEUS$ 5 - 10MOQ: 1 Piece
-
Factory Hot M8 Non-Flush 12v dc 3-wires Inductive Proximity Sensor With CEUS$ 4.97 - 7.56MOQ: 1 Piece
-
FSNA Series Ring Shape Proximity Switches, New Ring Proximity SensorsUS$ 50 - 70MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3L-30KS15-P2 R2M
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer

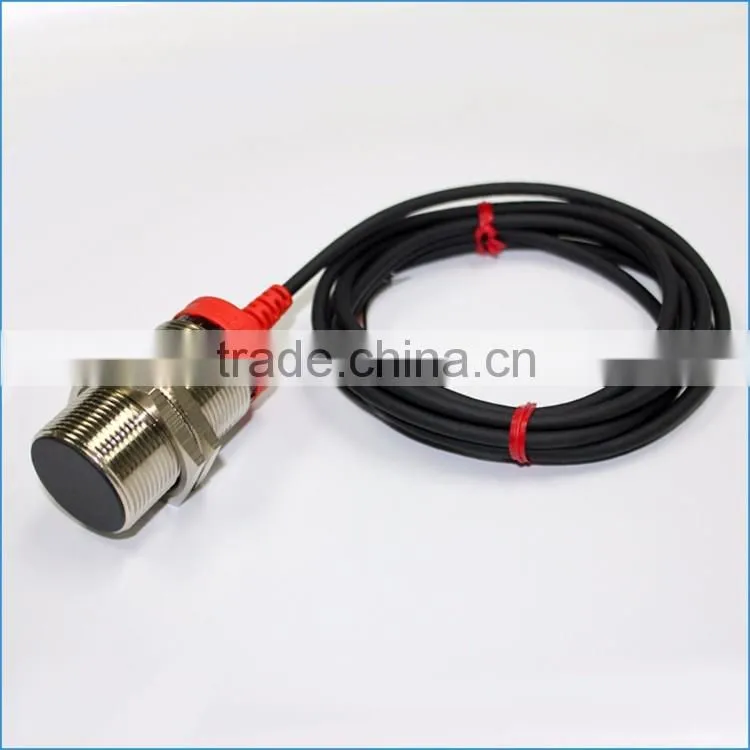

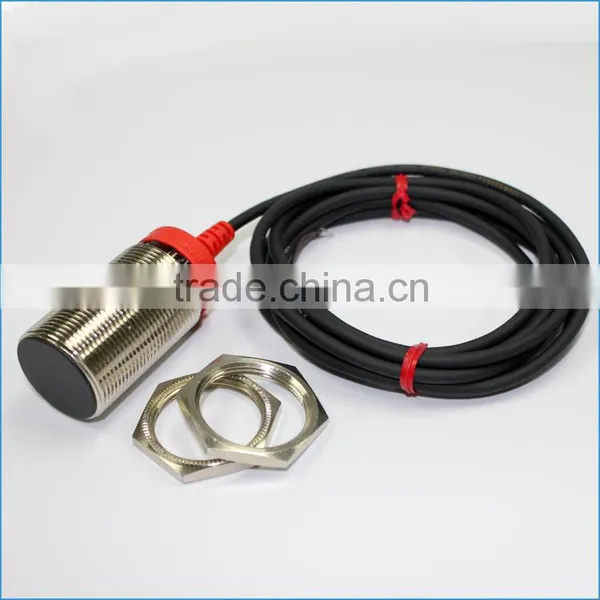

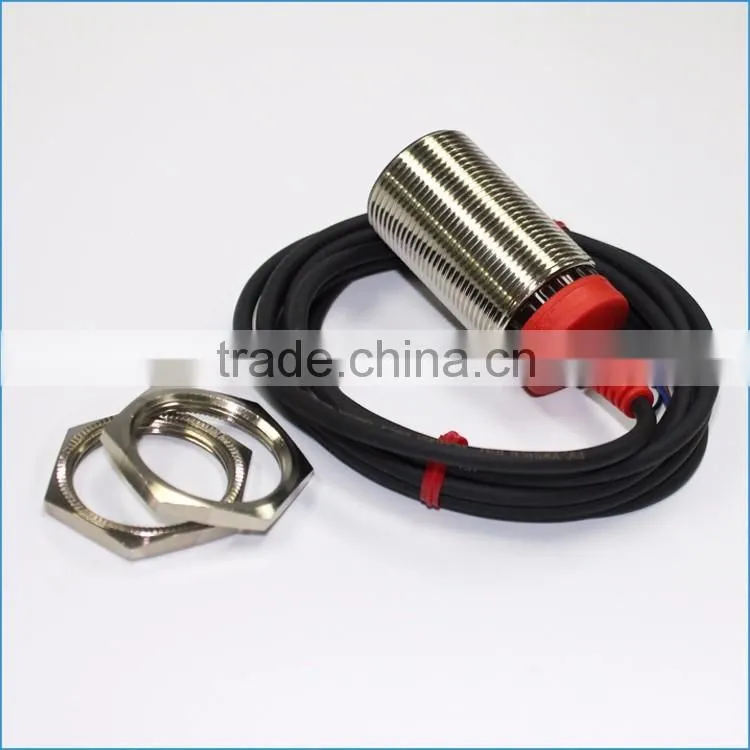

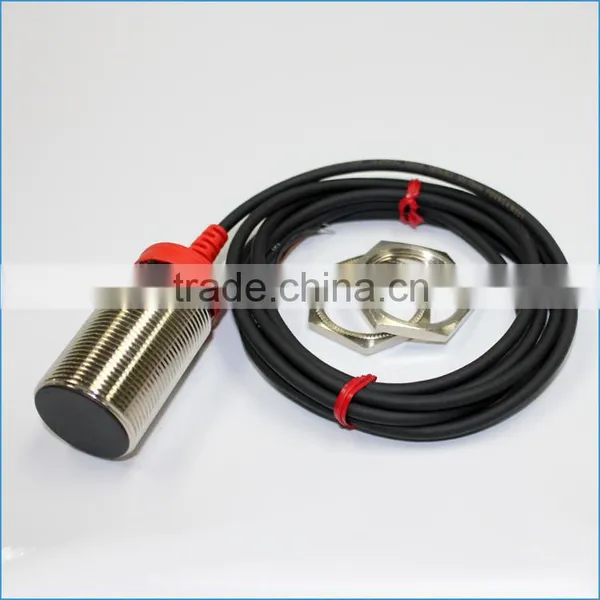

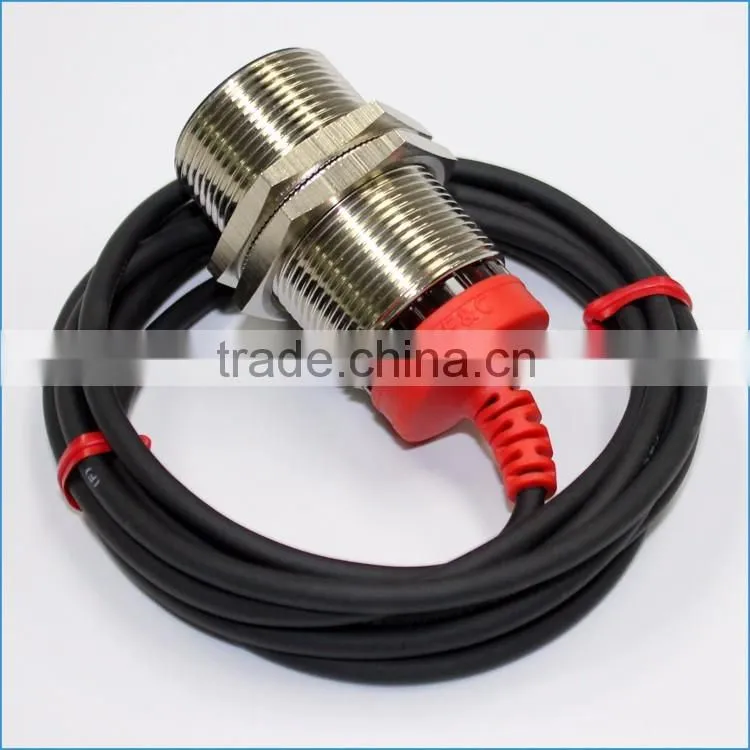

M30 DC10-30V PNP NC inductive proximity sensor switch
Product Description

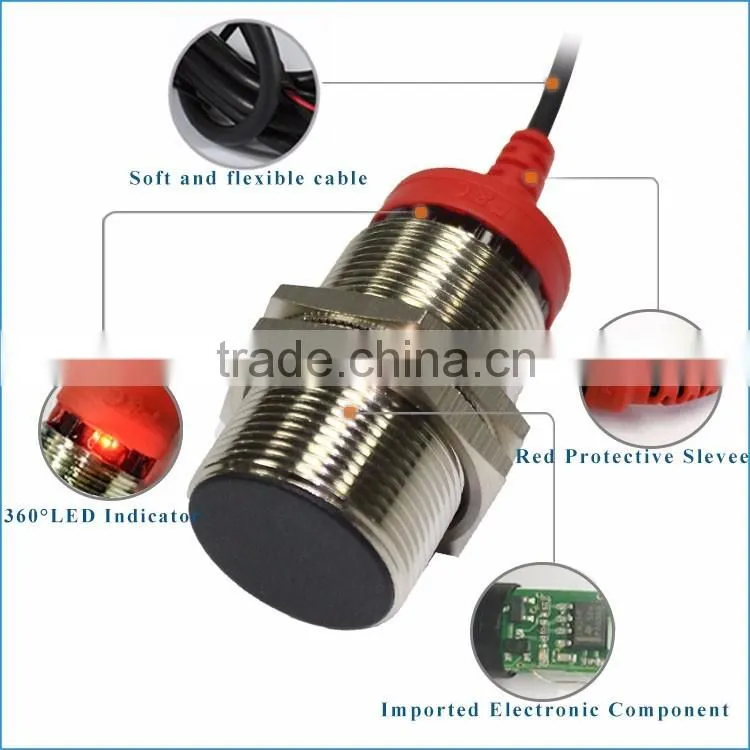

Feature
1.Small Size, Strong Structure, High Performanc.
2.10-30V Power Supply,Build-in Amplifer
3.Clear and easy to see LED Indicator
4.Physical output 100ma, High speed repsonsing up to 0.1ms
5.Durable Stainless Shell, Strong anti-interference ability.
6.Can customize 5V operating Voltage,different frequency, two wires products.
Specification for M30 DC10-30V PNP NC inductive proximity sensor switch
| Model | F3L-30KS15-P2 R2M |
| Output Method | PNP NC |
| Mounting Method | Flush |
| Detection Distance | 15mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 45*45(Iron) |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and Nickelled copper |
| Wire Method | Dia 4mm*2M/-3 wires |
Product Drawing

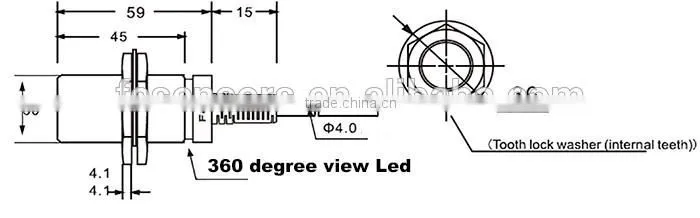

Dimension Drawing
Wiring drawing
