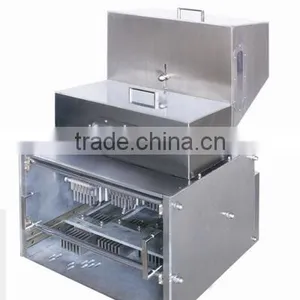

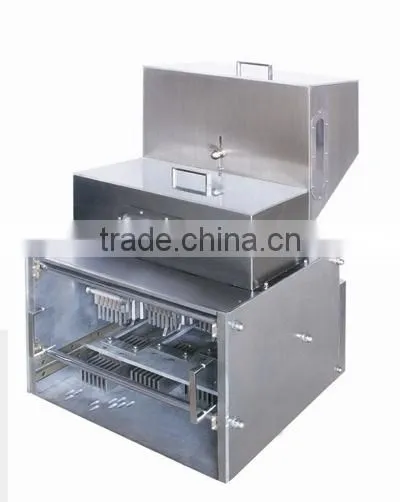

JD Series Capsule Orientation Device
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ANT
Model Number:
JD-250/140
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DPB-140E Flat Plate Packaging MachineryNegotiableMOQ: 1 Unit -
DPB-250B-I Capsule Blister Packing MachineNegotiableMOQ: 1 Unit
-
DPB-250C Servo Flat Plate Automatic Blister Packaging Machine (pharmaceutical Machinery)NegotiableMOQ: 1 Set
-
DPB-140C Servo Photoelectric Color Code Checking Flat Plate Auto Blister Packaging Machine (packing Machine)NegotiableMOQ: 1 Set
-
DZP-250KT/400KT Automatic Drag-out Type Wet Tissues Packaging MachineNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
ANT
Model Number
JD-250/140
Application
Capsule
Specifications
It is adopted with mechanical drive and cylinder controlling structure to make capsules collocating according to the colors.This capsule orientation device is a high-tech product with international advanced level in result of retrial and researching of our technicians. It is adopted with mechanical drive and cylinder controlling structure to make capsules collocating according to the colors, thus it can make products more regular and better-looking to enhance the products rank. It also plays a forgery preventing role. This machine can be equipped with any blister packaging machine.
By special design, the capsule can be packed with double-color turned.
Main Technical Parameters (model JD-140)
| Capacity (10 thousand pcs/h) | 2-11 |
| Suitable Capsules | 0#.1#.2#.3# hard capsule |
| Air Pressure (Mpa) | 0.4-0.6 |
| Overall Dimensions (mm) | 520 x 460 x 600(L x W x H) |
| Weight (kg) | 70 |
Main Technical Parameters (model JD-250)
| Capacity (10 thousand pcs/h) | 3.5-23 |
| Suitable Capsules | 0#.1#.2#.3#. hard capsule |
| Air Pressure (Mpa) | 0.4-0.6 |
| Overall Dimensions (mm) | 720×560×740(L×W×H) |
| Weight (kg) | 130 |
