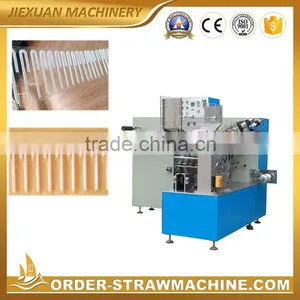

033 u shape bend straw wrapping machine can bend flexible drinking straw to U shape and automatically pack it in a row. This machine is composed of a driving motor, film release and reel devices, driving system, etc.
- Packing u shape single straw one by one in a row and the completion of bending, filling and packing straws at a time.
- Automatic counting and product quantity preset.
- High and adjustable packing speed.
- Automatic stop in the event of fault.
- The machine can ensure all sharp ends are packed in the same direction.
- All rollers are manufactured from aluminum.
Driving motor |
2.2kw controlled by frequency converter |
|
Capacity |
600~700pcs/min |
|
Packing method |
four-sided sealing |
|
|
Specifications of the packing film
|
Material |
BOPPfilm |
Shape |
Roll |
|
Roll diameter |
Max:280mm |
|
Inner diameter of paper tubes |
76mm |
|
Width of film |
Max:180mm |
|
Thickness of film |
20μ-30μ |
|
Packing shape |
22mm(pitch)× 100~140m(width) |
|
|
Straws specifications
|
Inner-diameter |
3.8mm /4.2mm |
Thickness |
0.18~0.25mm |
|
|
Length of U-shape model
|
90mm(small type)105mm(middle type), 128mm(big type) |
|
Other specifications are customized | ||
Machine size(L×W×H) |
2m * 1.8m*1.6m |
|
Machine weight |
1100kg |
|
1. Quick and professional pre-sales and after-sales services;
2. Factory quality controlled services;
3. Products fast delivery guarantee.
1. Q: Are you a factory or trading company?
We are factory and also have our own trading company.
2. Q: What makes you different from others?
(1)We are lifeful company and aims to build long terms business with you.
(2)We promise to reply to you within 8 hours - sometimes even immediately.
(3)As a manufacturer, we can ensure the delivery time and after-sales services.
3. Q: How can I know the status of my order?
We will send you infoand photos at different production stage of your order.
You will get the latest information in time.
4. Q: Where is your factory located at? How can I visit there?
Our factory is located in Nanjing, Jiangsu Province, China,
(1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
(2)You can fly to Shanghai Pudong International Airport then come to Nanjing by
High-speed railway, then we will pick you up in the railway station.
