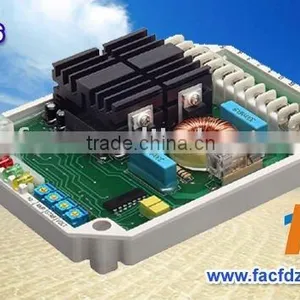

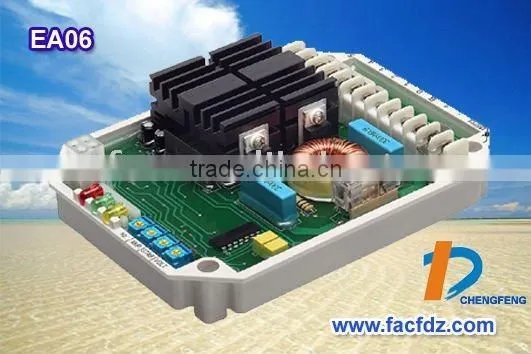

EA06 Voltage Regulator
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Chengfeng
Model Number:
EA06
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou / Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EA230 Automatic Voltage RegulatorUS$ 30 - 60MOQ: 10 Pieces -
EA16A Automatic Voltage Regulator AVRUS$ 70 - 100MOQ: 10 Pieces
-
Avr Automatic Voltage Regulator EA15AUS$ 70 - 100MOQ: 10 Pieces
-
Generator Spare Parts EA15A AvrUS$ 70 - 100MOQ: 10 Pieces
-
EA05AF Generator AVRUS$ 10 - 100MOQ: 10 Pieces
Place of Origin
Fujian, China
Brand Name
Chengfeng
Model Number
EA06
Phase
Single Phase
Current Type
DC
EA06 Voltage Regulator:
| Model NO. | EA06 |
|---|---|
| Sensing Input | Terminal 1,2 3,4 5,6 Can be connected to Y or 220~480 VAC Single Phase 50/60 Hz |
| Power Input | 50~280 VAC (1,2) 50/60 Hz |
| Output | Voltage 63 VDC @ 220 VAC Input Current Continuous 6A Maximum 7A for 10 sec. |
| Over Excitation Protection | 25~55 VDC @ 0.1~20 sec. |
| Under Frequency Protection | Adjustable range 42~60 Hz |
| Voltage Regulation | < ±1% (with 4% engine governing) |
| External Volts Adjustment | 100 KΩ 1/2 watt ±5% |
| Voltage Build-up | Residual Voltage above 5 VAC 25 Hz |
| EMI Suppression | Internal Electromagnetic Interference Filtering |
| Excitation Winding Resistance | DC Resistance 10~100Ω |
| Unit Power Dissipation | Maximum 5 watt |
| Environment | Operating Temperature : -40~65 °C Storage Temperature : -40~80 °C Relative Humidity : Maximum 95% Vibration : 1.5G @ 5~30 Hz , 5.0G @ 30~500 Hz |
| AVR Controls Function | VOLTS : Voltage Adjustment STAB : Stability Adjustment U/F : Under Frequency Protection AMP : Over Excitation Setting |
| Dimensions | 150.0(L) x 114.7(W) x 35.2(H) mm |
| Weight | 520 g ±2% |
The following are our products:
1. CF Brushless AVR: CF-8A, CF-12A, CF-15A,SAVRH-75A, SAVRH-PCB, SAVRL-75A, SAVRL-PCB.
2. Stamford AVR: AS440, MX321, MX321-A, MX341,MX341-A, SX440, SX440-A, SX440-T, SX460, SX460-A.
3. Leroysomer AVR: R230, R438, R448, R449, SSAYEC432.
4. Marathon AVR: SE350.
5. Brush AVR: DX-2E, DX-5E, DX-7E, DX-8E, DX-11E, DX-05A.
6. Engine Governor: 3036453, 34008326, EFC3044196, ESD5111, ESD5500E.
7. Controller: CTR101, CTR168, DSE501K, DSE5110
8. Kutai AVR: EA04C, EA05A, EA06, EA230
For more detail informations, would you please visit our website:
Have a nice day. Thanks.
