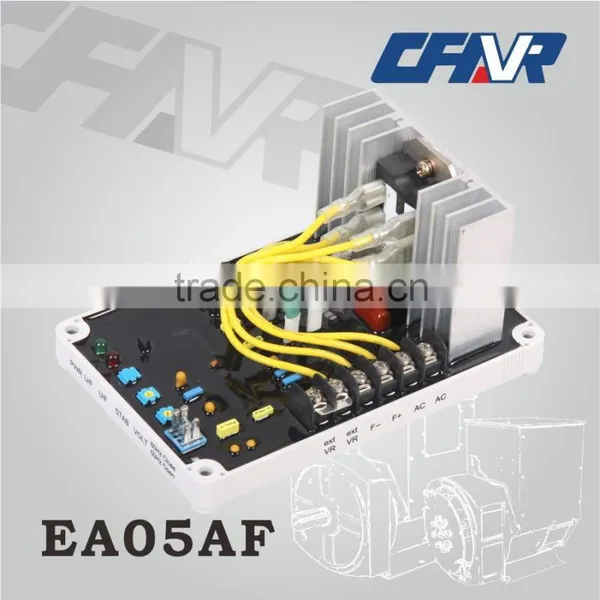

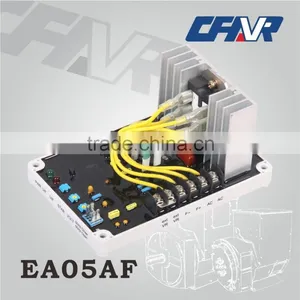

EA05AF AVR Circuit for Generator :
Application:
< ±0.5% Regulation
- Suitable for brushless type generator Sensing Input 170~510 VAC
- Can be used in Parallel Operation
- 16 ADC Current Output
- EA16 Suitable Frequency 50/60 Hz , EA16-400Hz Suitable Frequency 400 Hz
- Soft Start Voltage Ramping Load CT Current Compensation, Analogue Voltage Input
Technical data:
| EA05A | |
| Sensing Input | Voltage 220/380/440 VAC 1 phase 2 wire DIP switch selectable |
| Frequency 50/60 Hz DIP switch selectable | |
| Power Input | Voltage 100~300 VAC 1 phase 2 wire |
| Output | Voltage Max. 63 VDC @ 220 VAC input |
| Max. 90 VDC @ 240 VAC input | |
| Current Continuous 5A, Intermittent 7A for 10 sec | |
| Resistance Min. 15 Ohm Max. 100 Ohm | |
| Volts Regulation | < ±0.5% |
| Voltage Build-up | Residual volts at AVR terminal > 5 VAC |
| External Volts Adjustment | 7% with 1 K Ohm 1 watt trimmer |
| Unit Power Dissipation | Max. 8 watt |
| Soft Start Ramp Time | 3 sec |
| Thermal Drift | 0.03% per °C change in AVR ambient |
| Under Frequency Protection |
60 Hz system presets knee point at 55 Hz |
| 50 Hz system presets knee point at 45 Hz | |
| Environment | Operating Temperature : -40~70 °C |
| Storage Temperature : -40~85 °C | |
| Relative Humidity : Maximum 95% | |
| Vibration: 3G @ 100~2 KHz | |
| Dimensions | 101.0 (L) x 69.0 (W) x 49.5 (H) mm |
| Weight | 183g ±2% |
Photo:
Why to choose us ?
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Our factory
Payment Terms
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
Guatantee:
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
