Shandong Famous Brand-Galvalume Steel Sheet-GL

US$ 600 - 700 MOQ: 25 Tons

Key Specifications

Standard:

ASTM, GB, JIS

Grade:

spcc/sgcc

Thickness:

0.135mm-0.8mm

Shandong Dawang Jintai Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Standard ASTM, GB, JIS

Grade spcc/sgcc

Thickness 0.135mm-0.8mm

Place of Origin Shandong, China

Model Number DX51D

Type Steel Coil

Technique Cold Rolled

Surface Treatment Galvanized

Application Other, house roof /door

Width 900mm-1250mm

Specifications

Shandong Famous Brand-Galvalume Steel Sheet-GL
DX51D SPCC&SGCC
JIS ASTM GB EN
High quality,low price

Shandong Famous Brand-Galvalume Steel Sheet-GL

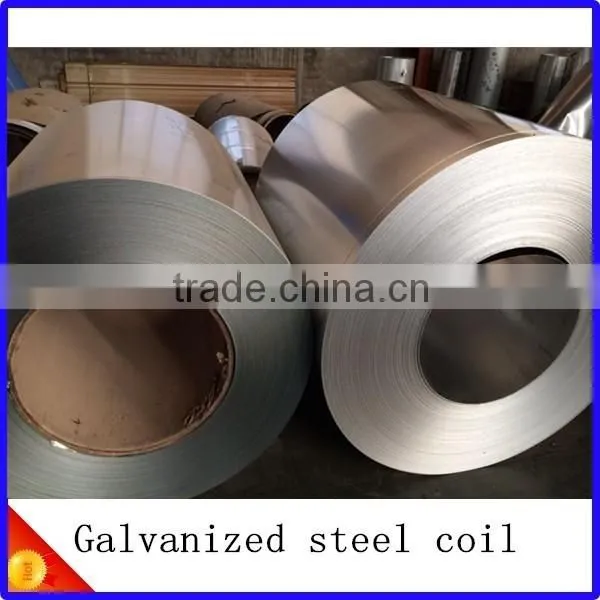

Galvanized Steel Coil / GI:

Zinc coated	40-80g( as customer required)
thickness	0.135-3.0mm
width	900-1250mm(914mm/1000mm/1200mm/1219mm the most common)
grade	DX51D ,SPCC
Spangle	Mini/zero spangle (as required)
Surface	Oiled/skin passed/chromated(as required)
Each coil weight	2-9tons (as required)
Payment	T/T ,L/C at sight,

Pre-painted Galvanized Steel Coil / PPGI:

Zinc coated	40-80g( as customer required)
colour	Ral standard (as required) [sea blue/white grey/bright red the most common]
thickness	0.135-0.8mm
width	900-1250mm(1000mm/1200mm the most common)
Paint type	PET..PU..EPOXY
Each coil weight	2-9tons (as required)
Payment	T/T ,L/C at sight

Galvalume Steel Sheet-GL

Standard	ASTM A792/ A 792M JIS G3321
Base-Metal Thickness	0.26 - 1.0 mm
Width	900 - 1250 mm
Inside diameter	508(20’’), 610 mm(24’’)
T-bend	0T-3T
Yield strength	>300MPa
Coating mass	AZ25 - AZ150
Spraying brine	Min 200 hours
Surface Finish	Minimized Spangle
Surface Treatment	Chromated Treatment, Oiled or Resin Coated (anti Finger Print)

Pre-painted Galvalume Steel Sheet-PPGL

Standard	JIS G3312
Base-Metal Thickness	0.26- 1.0 mm
Width	900 - 1250 mm
Inside diameter	508(20’’), 610 mm(24’’)
T-bend	0T - 3T
Gloss	30-80%
Yield strength	>300MPa
Hardness	≥ 40 HRB
Adherence degree	No peeling
Top coating side	4+8/5+15/5+20 µm
Back coating side	5 -7 µm
Durability of solvent/thinner	MEK ≥ 100 DR
Coating mass	Z25 - Z150
High impact test	1800gx200mm (min) – No peeling
Guard film (optional)	30um/50um
Color	As per RAL Code or as per customer’s requirements
