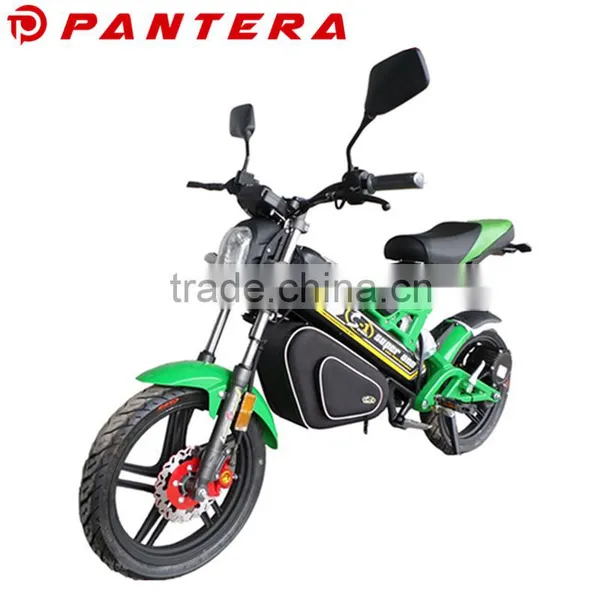

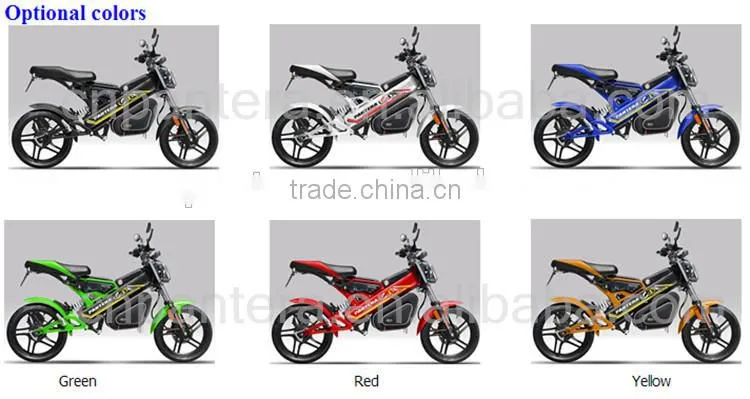

Help Center2016 48V EEC 1500w Cheap Foldable Folding Electric Motorcycle Quality Choice
Related Products
-
Left Hand Digital Biometric Smart Password Fingerprint Door Lock With Zinc Alloy Quality ChoiceUS$ 100 - 200MOQ: 1 Piece -
Door Handle Convenient Access Padlock Remote Control Bluetooth Lock for HomeUS$ 100 - 210MOQ: 1 Piece
-
the Advanced Digital Fingerprint Door Lock With LocklessUS$ 100 - 200MOQ: 1 Piece
-
the High-technology Digital Door Door Lock With High QualityUS$ 100 - 200MOQ: 1 Piece
-
the Popular HIgh-tech Precise Fingerprint Home Lock CylinderUS$ 100 - 200MOQ: 1 Piece
| ENGINE | |
| Motor type: | Intelligent drive brushless DC motor shifting |
| Stalls: | Two tranches, automatic transmission |
| Rated Power: | 1500W |
| Maximum speed: | 45 |
| Transmission System: | Direct drive |
| Instrument type: | Full-function LCD instrument |
| Lighting, signaling system: | LED |
| CHASSIS | |
| Rear Suspension Type: | fork, central damping |
| Front brake mode: | manual hydraulic disc brakes |
| After brake mode: | Manual drum brakes |
| Front/Rear tire specifications: | 80/80-14 vacuum tire |
| BATTERY SYSTEM | |
| Battery Type: | ternary lithium battery 48V/20Ah |
| Distance per charge: | 80Km |
| Hundred kilometers power consumption: | 2KWh |
| Charger specification: | AC90-220V 3A |
| Charging time: | 8h |
| Controller under voltage | 40V |
| Controller current-limiting | 28A |
| DIMENSIONS | |
| Overall dimensions (mm): | 1650×1100×650 |
| Folding size(mm): | 1045×1025×500 |
| Packing size( mm): | 1120×1045×310 |
| Dry. Weigth ( kg): | 48(With battery ) |
| Gross weight(Kg): | 56 |
| Seat Height(mm): | 760 |
| Min. Ground Clearance(mm): | 220 |
| Max. Permissionable Weight(Kg): | 150 |
| Climbing ability : | 45%Slope |
| Body type : | All-aluminum composite |

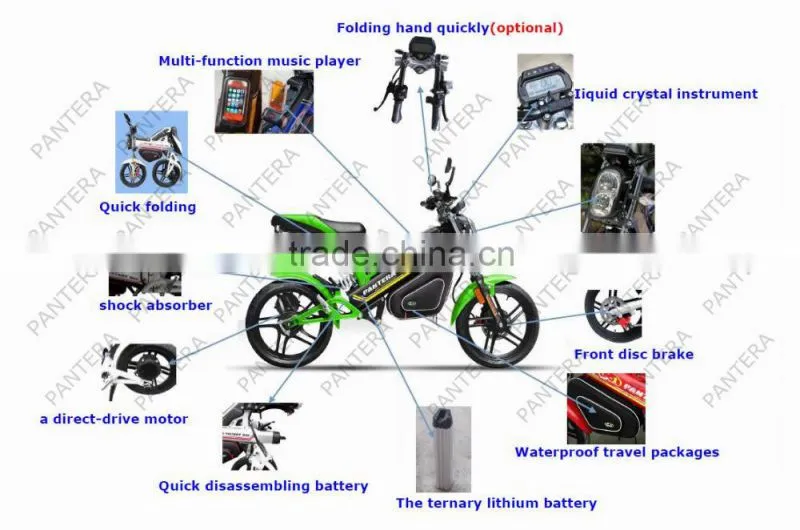

Product Features
| 1. Become a direct-drive motor | 2. Quick disassembling battery |
| 3. The ternary lithium battery | 4. Waterproof travel packages |
| 5. Front disc brake | 6. LED lamps and lanterns |
| 7. Digital meter | 8. Folding hand quickly(optional) |
| 9. Multi-function music player | 10. Quick folding |
| 10. light weight aluminum body | 12. shock absorber |

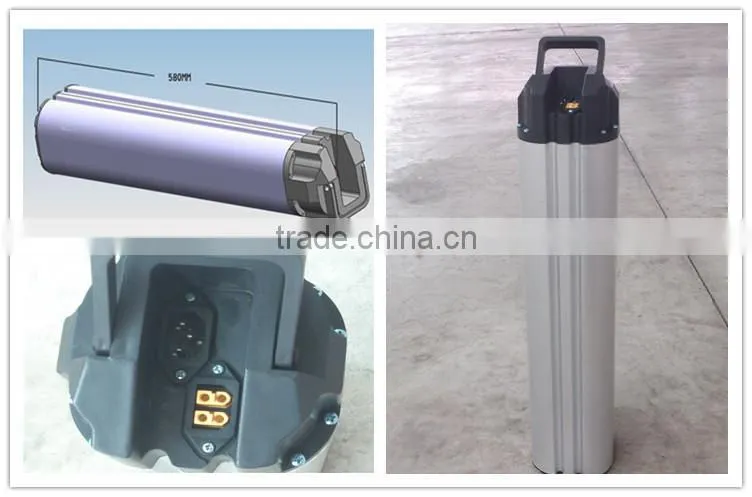

Lithium battery
- High performance lithium battery set. The weight is 7kgs, it is just one quarter weight of lead-acid batteries.Lithium ion battery has obvious advantages in application of electric bicycle, and meets requirements of electric bicycle.
Note: This bike using high-performance lithium battery, voltage of 48V safe voltage, can be used inambient temperature range -20 ℃ to 50 ℃, 10-30 ℃ ambient temperature use the best, low or highambient temperatures, have will affect battery performance and life, do not use at temperaturesexceeding the allowable range. Not below 0 ℃ to charge the battery.
Product Description
- Intelligent drive, dicaryontwo shifts electric power motor. Small bulk, big torque, great efficiency with great climbing capacity and runs reliably. It is rationally distributed and compact structure with two stage gear drive. High performance iron core and permanent magnet material. Solid and smooth shape that makes easily for the motor heat radiation. Unique sense patent technology makes the motor shift automatically. It ensures the motor to run the optimal value at any gears and creats completely on the energy-efficient brushless motor. It protects the battery to avoid the big current shock while shifting. The high efficiency motor makes further save power as well as more ability charge.
-
Climbing Ability:45% slope
- Climbing maximum speed 22km/h, maximum torque≥50N.m
- Drive maximum speed 38-50km/h, maximum torque≥30N.m

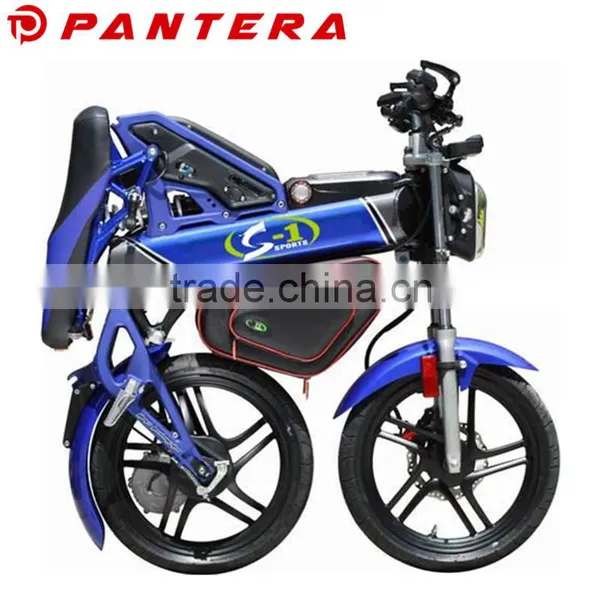

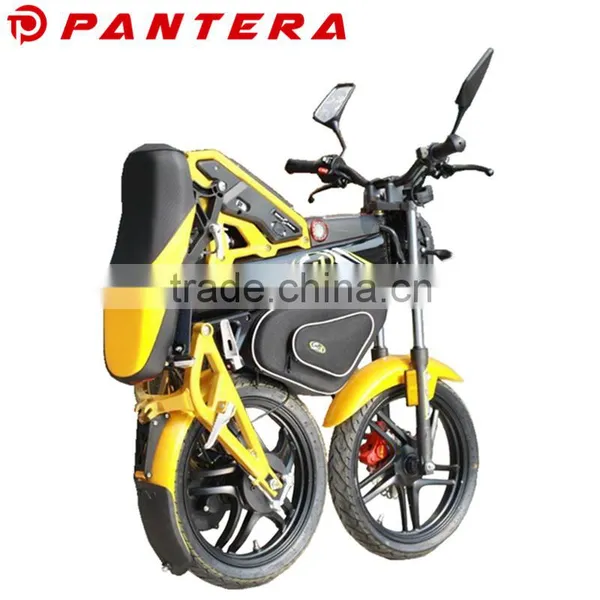

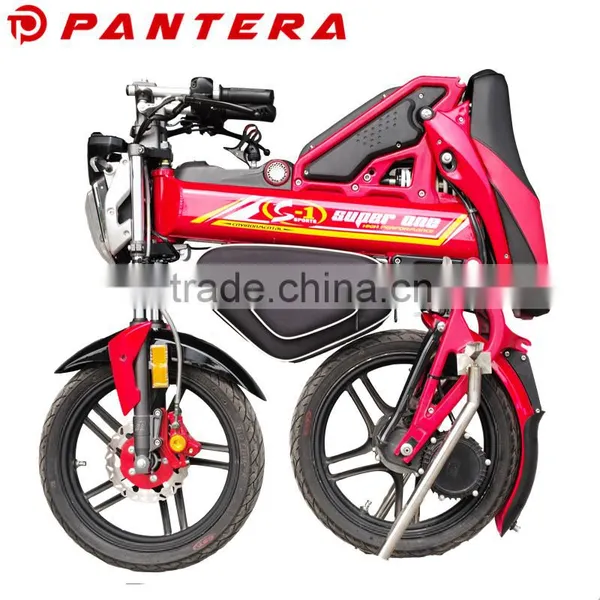

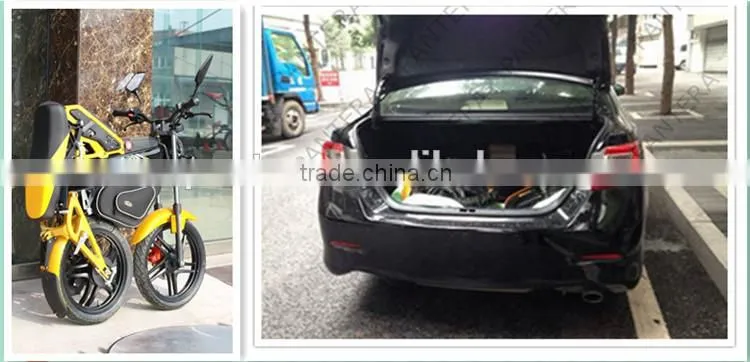

Foldable function
Packing
Shipping
We are electric motorcycle manufacturer located in Chongqing, China. Have 20 yeares of experiences in business with electric motorcycle, electric bikes, electric bicycles, e bikes,electric scooter. We can OEM your brand,help you to develope your market. This electric motorcycle is new model in 2016. the main market is europe countries. Such as Germany, Hungary, Czech Republic, Netherland.
1. Q:What is the Minimum Order Quantity(MOQ)?
A: No quantity limited, sample order or small order is acceptable.
2. Q: Do you have the products in stock?
A: Yes,for this electric motorcycle. we have sample in stock.
3. Q: What’s the delivery time?
A: It usually takes about 25~35 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.

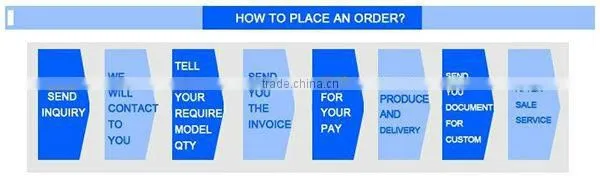

5. Q:How to place an order?
A:
