Place of Origin Jiangsu, China
Brand Name HONGXIN
Type Other, Air Motor
Average Air Consumption 128 cfm
Maximum Torque 13 Nm
No-Load Speed 3000 rpm

HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor



Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.

Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.

Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.

Four and eight vane models are also available.



Main characteristics of air motor:



Variable speed

Nonelectrical sparking

Instantly reversible

Cool running

Compact and portable

Minimum maintenance

Will not burn out

Low price

Operate in all positions

Low shock starts

Self sealing vanes

Mounting flexibility

Four vane or eight vane

Long life accessories



Main technical parameters:





VANE AIR MOTOR

Model

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

hp

kW

Nm

lb.in

rpm

m³/h

cfm

rpm

Nm

lb.in

HX1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.60

HX1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.00

HX2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.10

HX4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56.00

HX6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115.00

HX8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185.00

HX16AM

 9.50 7.00 34 290 2000 475 275 300 43 372

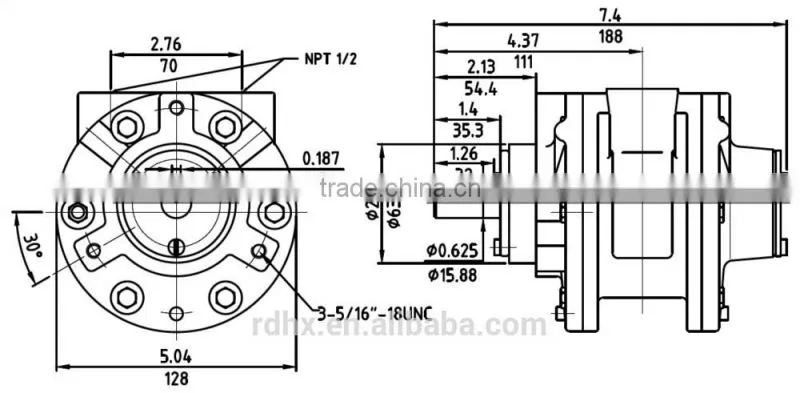

Air Motor (Model: HX6AM-V)Outline Drawing:

HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor





Different Models Air Motor Photoes:



HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor                                        HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor

HX6AM-H (Gast Model:6AM-FRV-5A) Foot Mounting              HX6AM-V (Gast Model:6AM-NRV-7A) Face Mounting



HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor                                        HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor

HX6AM-HV Foot & Face Mounting                                            HX6AM-HVD Foot & Face Mounting,Two Shafts



HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor                    HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor                    HX6AM-V Face Mounting Vane Air Motor,Compressed Air Motor

HX6AM-F114.3 Flange Mounting                  HX6AM-H-F114.3 Foot & Flange Mounting             HX6AM-F130 Flange Mounting

(Gast Model:6AM-NRV-11A)                                                                                                               (Gast Model:6AM-ARV-54)
