HX16AM 9.5hp Foot,Face,Nema Mounting,Gast Equivalent,Rotary Vane Air Motor
Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.
Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.
Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.
Main characteristics of air motor:
Variable speed
Nonelectrical sparking
Instantly reversible
Cool running
Compact and portable
Minimum maintenance
Will not burn out
Low price
Operate in all positions
Low shock starts
Self sealing vanes
Mounting flexibility
Four vane or eight vane
Long life accessories
Main technical parameters:
VANE AIR MOTOR | ||||||||||
Model |
Operation Data |
Maximum Torque |
||||||||
Power |
Torque |
Rotate Speed |
Air Consumption |
Rotate Speed |
Torque |
|||||
hp |
kW |
Nm |
lb.in |
rpm |
m³/h |
cfm |
rpm |
Nm |
lb.in |
|
HX1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
HX1UP |
0.45 |
0.33 |
0.58 |
5.25 |
6000 |
47 |
27 |
500 |
0.68 |
6.00 |
HX2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.10 |
HX4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56.00 |
HX6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115.00 |
HX8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
21 |
185.00 |
HX16AM |
9.50 | 7.00 | 34 | 290 | 2000 | 475 | 275 | 300 | 43 | 372 |
Photoes & Drawings:

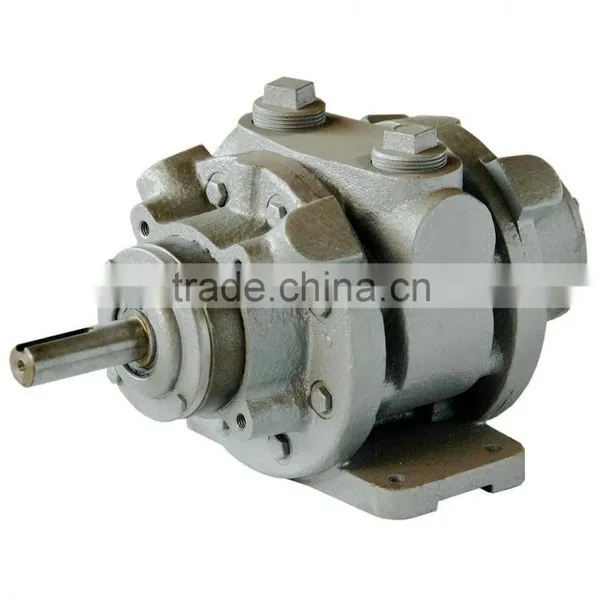

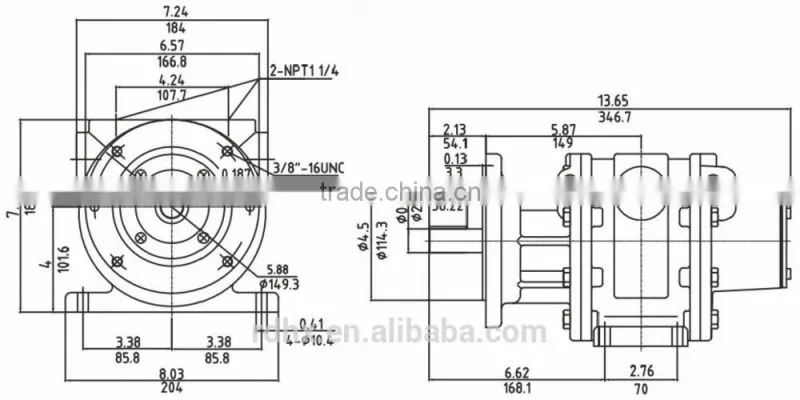

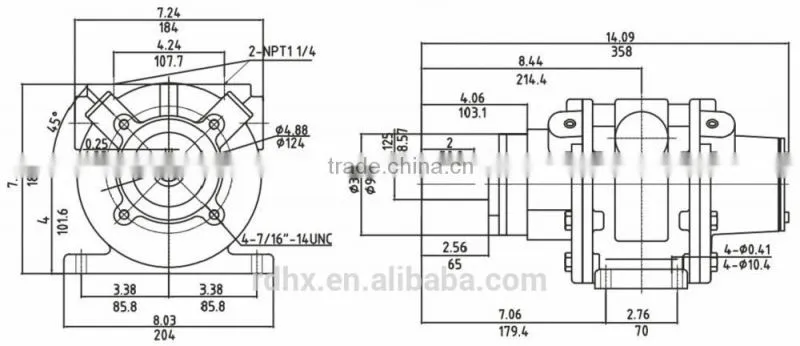

HX16AM-FRV-2 (GAST AIR MOTOR MODEL: 16AM-FRV-2) FOOT & FACE MOUNTING
HX16AM-FRV-13 (GAST AIR MOTOR MODEL: 16AM-FRV-13) NEMA 143 & 145TC MOUNTING
MUFFLERS
