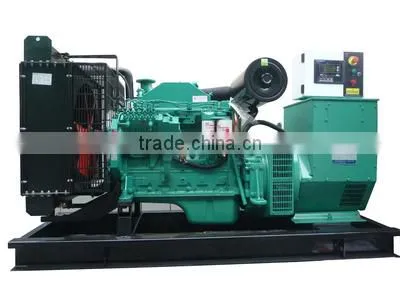

12KW Cummins Diesel generator set
Cumming diesel generator sets used Chongqing cummins engine (CCEC)and Dongfeng Cummins (DCEC)engine .and the chongqing cummins series of engines is the Jiont ventures of USA cummins engine corporations which was a wold famous brand founded in 1919. The N k M series of cummins engines are equipped with speed electronic governors ,which has the protection of sound alarming system and automatically stopping system when it is high cooling water temperature is too high ,low fuel oil pressure and over speed working . The fuel oil system ( PT FUEL OILE SYSTEM ) has the characteristic of best fuel consuming and dynamic load . It is reliable and economic and widely used in army ,engineering ,min industry etc.
1,Diesel generator set | |||
Genset model |
HF-12GF |
||
Rated power |
12kw/15kva |
||
Rated voltage |
230v/400v (adjustable) |
||
Rated frequency |
50 HZ/60 HZ |
||
Power factor |
0.8 (lagging) |
||
The regulating rate of steady voltage |
±0.5 |
||
Open sets dimension (l w h) mm |
1950*800*960 |
||
Weight kg |
800 |
||
Diesel engine |
Brand |
Cummins |
|
Model |
4B3.9-G2 |
||
Cylinder No. |
4 |
||
Bore *stroke (mm) |
102*120 |
||
Displacement (L) |
3.9 |
||
Fuel consumption g/kw.h |
209 |
||
Rotating speed rpm |
1500/1800 |
||
Cycle |
4 stroke |
||
Speed governor |
Electrical |
||
Cooling system |
Closed circle water-cooled |
||
Starting method |
DC 24V Electrical starting |
||
Alternator |
Brand |
Qianghui ,Lingyu Godlike ,Stanford |
|
Number of phase |
3 |
||
Connecting type |
Three phase and four lines |
||
Number of bearing |
1 |
||
Grading protection |
IP22 |
||
Exciter type |
Brushless AVR automatic voltage regulating |
||
Insulation Class |
H degree |
||
Speed governor |
Electrical |
||
Altitude |
1000 m |
||
The main components of the diesel genset | |||
1,cummins diesel engine |
1, alternator ( selectable ) |
3,Control panel (selectable) |
|
The generator parts
Package
Usually it will take only 10 days after receiving the deposit ,but it is also depends on the quantity and type you orderd .
About the open type will pack it by wooden cases ,about the silent type it is usually by PE film,but wooden cases is also available .
If you have other requirement about the packing ,we are also glad to do like you said.
We Can provide a lot of generator type from 8KW to 2000KW ,Before shipping ,we adjust the generator set freely to make sure it works well .
The warranty time : 1 year from the date of shippment almost 1000 using hours
during the warranty time if you find that there is some problem with the generator set,we would like to provide service by three ways
1,repair the product by telephone or video instruction with no charge
2,sent our engineer if you by the tickets
3,replace the product by a comparable one which may be new or refurbished
The certificate
