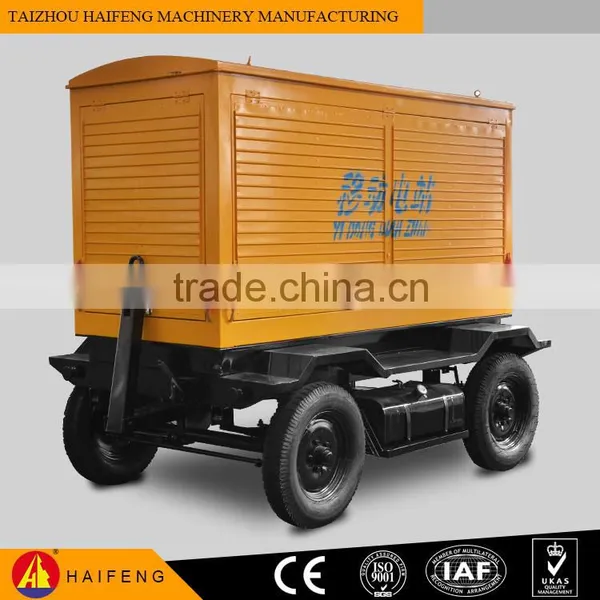

water fan cooled 150kva moveable diesel generator set powered by cummins engine
water fan cooled 150kva moveable diesel generator set powered by cummins engine
We are proffessional diesel generator manufacture in China . We supervise the manufacturing process in strict accordance with ISO9001 : 2008 . the silent type is good at reduce the noise and it can be used outdoor without worrying about the weather. In order to make sure all the products workes well we adjust the products several times before shipping. we can provide power from 20kw to 2000kw . usually it is powered by cummins engine , but also can be other engine such as volvo ,MTU perkins etc . Any of your contact will be appreciated .
Why we recommend the generators powered by Cummins engine ?
1, It has the vast power range from 20kw to 2000kw
2,Good after sale network system ,can provide global guaranty and has complete and fast
spare parts supply
3, Good stability performance ,shows in the frequency ,voltage and power .
4,Low emissions .
5, Heavy repair time can be as long as 15000 hours if you use and maintain it in the proper way.
Overall description of water fan cooled 150kva moveable diesel generator set powered by cummins engine
1,Diesel generator set | |||
Genset model |
HF-120kw |
||
Rated power |
120kw/150kva |
||
Rated voltage |
230v/400v (adjustable) |
||
Rated frequency |
50 HZ/60 HZ |
||
Power factor |
0.8 (lagging) |
||
The regulating rate of steady voltage |
±0.5 |
||
Open sets dimension (l w h) mm |
2400*860*1350 |
||
Weight kg |
1490 |
||
Disel engine |
Brand |
powered by cummins engine |
|
Model |
6BTAA5.9-G2 |
||
Cylinder No. |
6 |
||
Bore *stroke (mm) |
114*135 |
||
Displacement (L) |
5.88 |
||
Fuel consumption g/kw.h |
213 |
||
Rotating speed rpm |
1500/1800 |
||
Cycle |
4 stroke |
||
Speed governor |
Electrical |
||
Cooling system |
Closed circle water-cooled |
||
Starting method |
DC 24V Electrical starting |
||
Alternator |
Brand |
Qianghui ,Lingyu Godlike ,Stanford |
|
Number of phase |
3 |
||
Connecting type |
Three phase and four lines |
||
Number of bearing |
1 |
||
Grading protection |
IP22 |
||
Exciter type |
Brushless AVR automatic voltage regulating |
||
Insulation Class |
H degree |
||
Speed governor |
Electrical |
||
Altitude |
1000 m |
||
The main components of the diesel genset | |||
1,Powered by Cummins diesel engine |
1, alternator ( selectable ) |
3,Control panel (selectable) |
|
Package
1, With packaging Film
2, With wooden box
3,We also respect our customers ' recommendance .
Beside powered by cumminstype ,there are many other types with different or same power .
And all thegenerator have open type ,silent type and mobile type .
Before shipping ,we adjust the machine to make sure it works well .
During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .
The warranty time is one year almost 1000 using hours .
If the products have some problems we will send the parts free and instruct you how to repair it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
1 ,Q : What kind of generator set do you supply ?
A : The generator set we supply used diesel and we only supply diesel generator set. diesel engine ,generator alternator .
2, Q : What kind of the engine brands and alternator brands can your provide ?
A : Many engine brands : such as the generator engine powered by Perkins ,by Cummins Volvo,,Deutz,Doosan,Yuchai,Shangchai,Weichai etc . Many alternator brands : wuxi Standford,shanghai standford ,Goldlike,Leroysomer etc.
3,Q : What Kind of alternator do you usually match the generator? what if i have special requirement about the alternator match with the generator ?
A : We usually match the generator with Standford or Goldlike . If you have special request we would like to take your advice .
4,Q : Can you accept OEM ?
A : Yes, we can accept OEM.
5, Q : what's your delivery time ?
A : It depends,usually ten days after receiving the deposit
6, Q : Beside open diesel generator ,can you provide silent type and trailer type ?
A : Yes, open ,silent ,trailer type we all can provide . and our silent type is with high quality ,it can be very quiet . 77DB with in one meter.
7,Q : what kind of payment can you accept ?
A : Usually we accept T/T 30% in advance,the balance 70% before shippment . but if you want T/T 100% we won't refuse . You can also choose L/C ,west Union.
8,Q : I want to buy a diesel generator set ,but i am still confused about the power and type ,can i contact you ?
A : Yes ,of course,you can contact me on line or by email at any time . i would be appreciate to help .
