Small Water Filling Machine, Water Bottle Filling Machine Price, Semi Automatic Liquid Filling Machine
US$ 600 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F3-5000 Semi Automatic Beer Keg Filling MachineUS$ 600 - 3,500MOQ: 1 Set -
DF3-5000 Semi Automatic Wine Bottle Filling MachineUS$ 2,100 - 2,700MOQ: 1 Set
-
A03 10ml Small Volume Manual Filling MachineUS$ 220 - 400MOQ: 1 Set
-
FF4-1000 Viscous Liquid Filling MachineUS$ 600 - 1,100MOQ: 1 Set
-
FF5-1000 Electric Driven Volumetric Filler Filling MachineUS$ 900 - 1,800MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type
Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch
Packaging Material
Plastic, Glass
Automatic Grade
Semi-Automatic
Driven Type
Pneumatic
Voltage
220v/50Hz or 110v/60Hz(Optional)
Power
0kw
Place of Origin
Zhejiang, China
Brand Name
T&D
Model Number
F3-300
Dimension(L*W*H)
115*46*110cm
Weight
50kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
liquid filling machine-use for filling liquid material
-pneumatic drive without electrical
-Airtac pneumaitc component,304ss
small water filling machine, water bottle filling machine price, semi automatic liquid filling machine
Product Description
Liquid filling machine
F6 / F3
| Model | F6-150 | F6-300 | F6-600 | F6-1200 | F6-2600 | F6-5000 |
| Filling range | 10-150ml | 20-300ml | 50-600ml | 200-1200ml | 500-2600ml | 1000-5000ml |
| Air pressure range | 0.4~0.6mpa | |||||
| Filling speed | 25-60pcs/min | |||||
| Filling precision | 1% | |||||
| Dimension | 101*33*35cm/122*40*39cm | |||||
| Weight | 50kg-80kg | |||||
Double nozzle liquid filling machine
DF6 / DF3
| Model | DF6-150 | DF6-300 | DF6-600 | DF6-1200 | DF6-2600 | DF6-5000 |
| Filling range | 10-150ml | 20-300ml | 50-600ml | 200-1200ml | 500-2600ml | 1000-5000ml |
| Air pressure range | 0.4~0.6mpa | |||||
| Filling speed | 25-60pcs/min | |||||
| Filling precision | 1% | |||||
| Dimension | 122*40*39cm/115*66*110cm | |||||
| Weight | 60kg-80kg | |||||
Application:
- They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
- Typical application: Use for filling liquidity is good material, such as mineral water, cooking oils, juice, detergent, sauce, liquidity cream, good liquidity honey, shampoos etc.
- Suitable for various packing such as bottle ,jar, can, cup, bag, barrels,etc.
Details
Liquid and paste filling machine
FF6 / FF3
| Model | FF6-150 | FF6-300 | FF6-600 | FF6-1200 | FF6-2600 | FF6-5000 |
| Filling range | 10-150ml | 20-300ml | 50-600ml | 200-1200ml | 500-2600ml | 1000-5000ml |
| Hopper volume | 30L | 30L | 30L | 30L | 80L | 80L |
| Air pressure range | 0.4~0.6mpa | |||||
| Filling speed | 25-60pcs/min | |||||
| Filling precision | 1% | |||||
| Dimension | 101*33*35+41*41*50cm(30L hopper)/121*40*40+54*54*54cm(80L hopper) | |||||
| Weight | 45-80kg | |||||
Double nozzle liquid and paste filling machine
DFF6 / DFF3
| Model | DFF3-150 | DFF3-300 | DFF3-600 | DFF3-1200 | DFF3-2600 | DFF3-5000 |
| Filling range | 10-150ml | 20-300ml | 50-600ml | 200-1200ml | 500-2600ml | 1000-5000ml |
| Air pressure range | 0.4~0.6mpa | |||||
| Hopper volume | 30L//80L | |||||
| Filling speed | 25-60pcs/min | |||||
| Filling precision | 1% | |||||
| Dimension | 115*66*110cm | |||||
| Weight | 60kg-80kg | |||||
Application:
- They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
- Typical application: Use for filling liquid and paste material, such as mineral water, cooking oils, juice, detergent, sauce, salad, butter & margarine, ketchup, jams, cream, honey, shampoos etc.
- Suitable for various packing such as bottle, jar, can, cup, bag, barrels, etc.
Details
Machine Features
- Adopt Taiwan Airtac pneumatic components, full pneumatic drive does not need electrical power, safety, simple operation, high filling precision;
- Use 304 stainless steel construction of material contact parts, optional 304 or 316 stainless steel;
- Stainless steel valve system design;
- Can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;
- Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations;
- Extremely easy to chean and maintain;
- Quick release nozzle and feed pipe;
- Small footprint for simple bench mounting;
- Optional type 10-150ml 20-300ml 50-600ml 200-1200ml 500-2600ml 1000-5000ml;
- Filling capita single head, two head;
- Conform to GMP;
Note:
1, we can customize the special size according to customer's demands.
2, The machine disposition may make the choice.

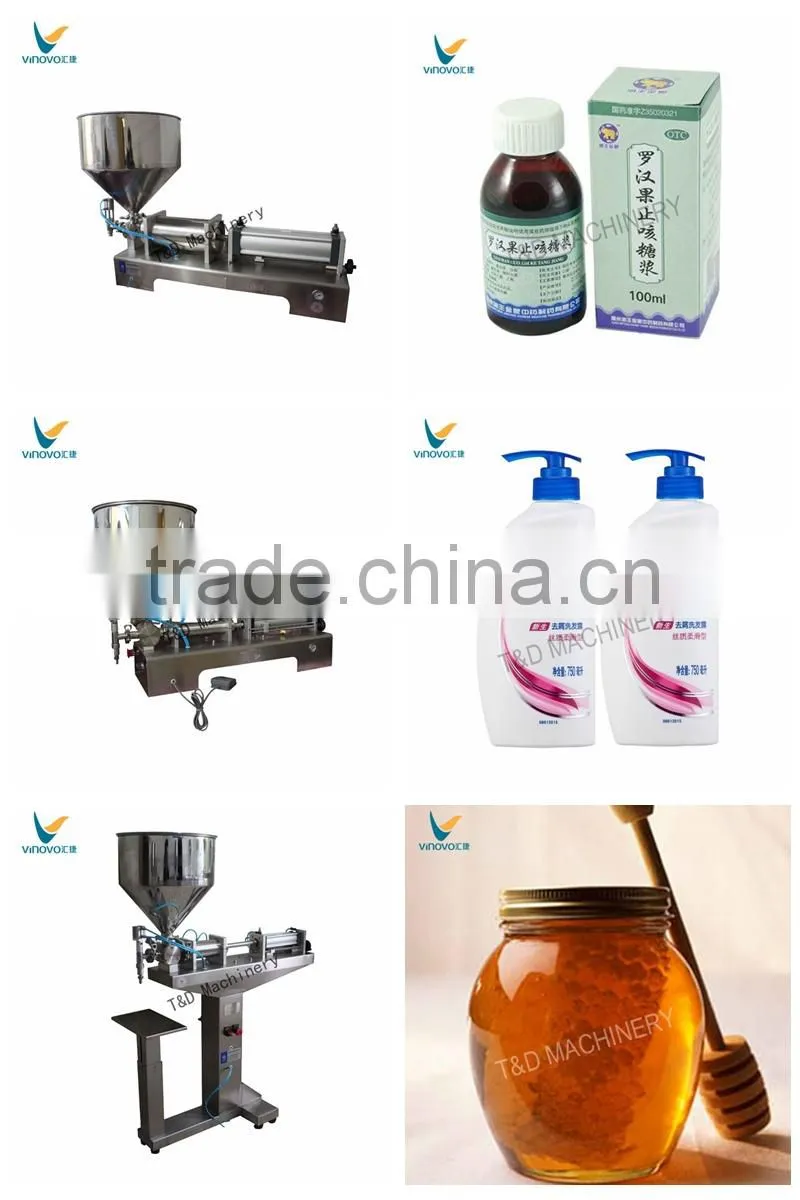

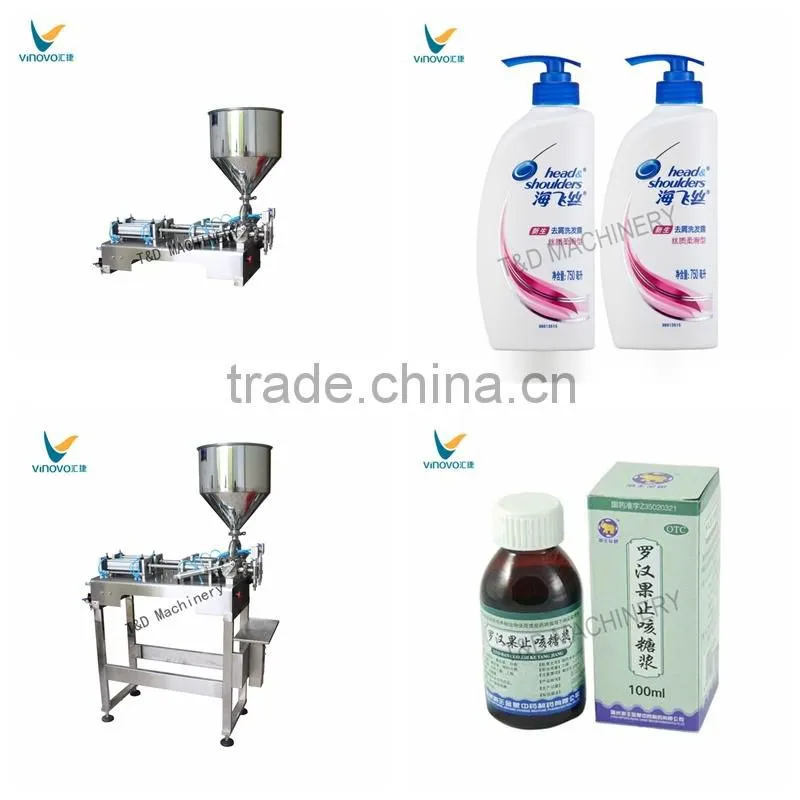

Samples
Packaging
Company show
Our Services
We are professional manufactory, produce in hot stamping machine, heat transfer machine, filling machine, packaging machine, etc. And we produces many types of this machine. We can provide OME/ODM service, we base our business on offering products and services that people want and need, as well as continuing to develop an innovative approach to marketing.
Packaging & Shipping
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
FAQ
1. Each machine is manufactured by our professional staff production and manufacturing;
2. Production process through strict supervision and review, use a lot of the high parts at home and abroad, to ensure good quality;
3. Use a lot of 304 stainless steel to ensure food safety, can choose the material contact parts use 304 stainless steel or whole machine use;
4. The warranty time is one year. Under warranty, if is according to the introduction of the description of the use of case, any damage to the product, we will provide free maintenance service or free replacement, but need customer pay for the freight from China to local place. If you need our engineers to help, will be paid by customer of travel back and forth.
5. Outside the warranty period, we continue to provide lifetime maintenance services.
