Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine

Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-1
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-2
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-3
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-4
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-5
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine thumbnail-6
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-1

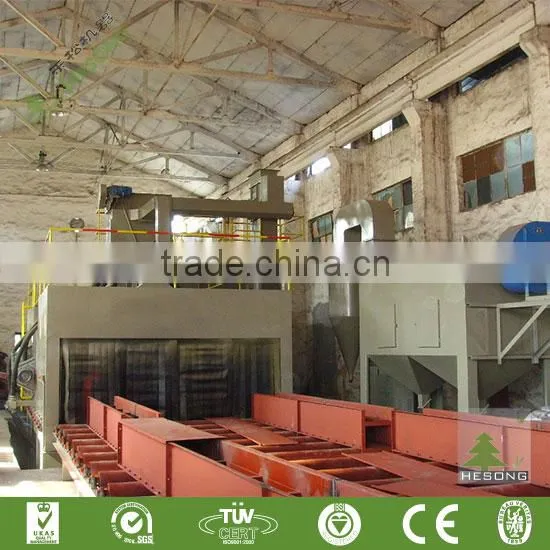

Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-2
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-3

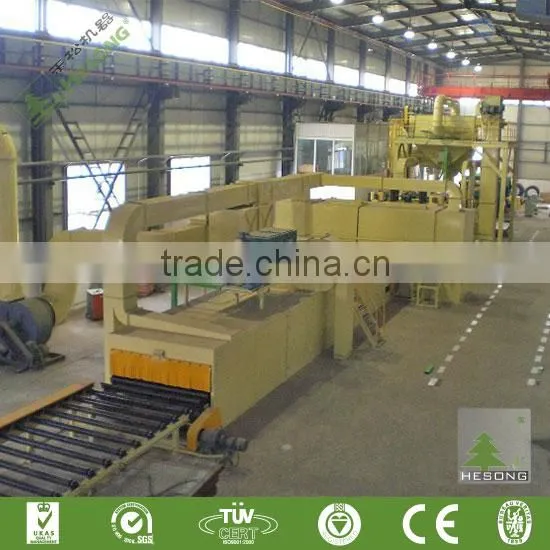

Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-4

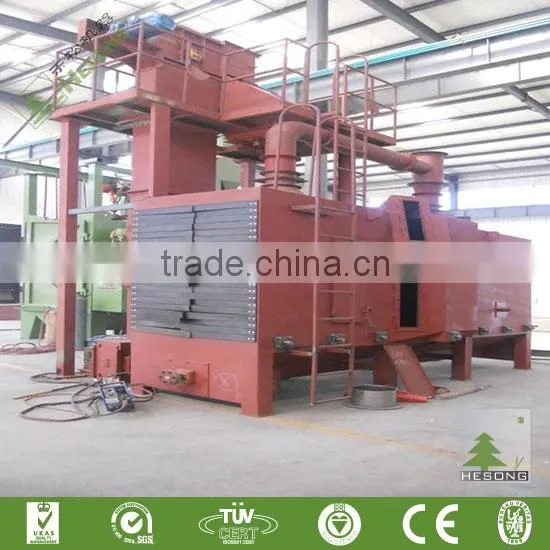

Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-5
Environmental Protection Equipment Q69 Series Continuous Pass-through Shot Blasting Machine photo-6
US$ 1 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
HESONG
Contact Supplier Request Quote Chat Now
Qingdao Qingzhu Foundry Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name HESONG
Model Number Q69
Feature Critical Cleaning / Residue Free, Non-Toxic
Fuel Electric
Certification CE, Other, CE, SGS UKAS TUV BSI ISO9001-2008
Use Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping
Cleaning Process Other, abrasive
Cleaning Type Clean-In-Place (CIP)
Industry Used Other, Foundry, automotive, rail, construction
Material Other, concrete/steel/asphalt
Power(W) Cusomized
Dimension(L*W*H) Customer's Requirement
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

This series of continuous pass-through shot blasting machine is one of the new self-designed equipment,which is suitbale for cleaning sand and oxide-scale on the surface of the small and medium size casting and forgings.Due to continuous swing ,the workpiece can be fully rolled in the barrel.additionally,
the blast wheel can schedul to open one by one ,which can extend the area of the projectile.The structure of the projectile system is reasonable,it is effective to pill sand separetion because of the special structure ,the other hand,it can extend the life of the tool.This machine makes the blasting process simple and can realize full automatic production.
parameter
Q698
Q6912
Q6915
Q6920
Q6925
Q6930
Q6940
The effective cleaning width(mm)
800
1200
1500
2000
2500
3000
4000
The room feed-in size
1000*400
1400*40
1700*40
2200*40
2700*80
3200*80
4200*40
The first enclosed quantity (kg)
4000
4000
4000
4500
4500
8000
11000
The speed of wheel conveyer(m/min)
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
The thickness of cleaning steel sheet (mm)
3-60
3-60
1.5-60
3-60
3-60
3-110
4.5-100
Roll brush adjusting height (mm)
200
200
350
450
600
850
900
The quantity of shot blasting (kg/min)
4*180
4*250
4*250
6*250
6*250
6*360
8*360
Total power (kw)
90
78.3
113.5
156.6
204.8
224.55
293.6
Air capacity(m3/h)
22000
17560
19000
19550
27758
28050
38000

Main Features

1) The design is simple, in line with the requirements of the production line.

2) The continuous improvement of production processes.

3) The transmission distance is short (no intermediate products stored procedures).

4)Since the blasting process is integrated into the whole automated production line, operating costs are significantly reduced.

Certifications
Detailed Images

Machine Parts

Name: shot blasting

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

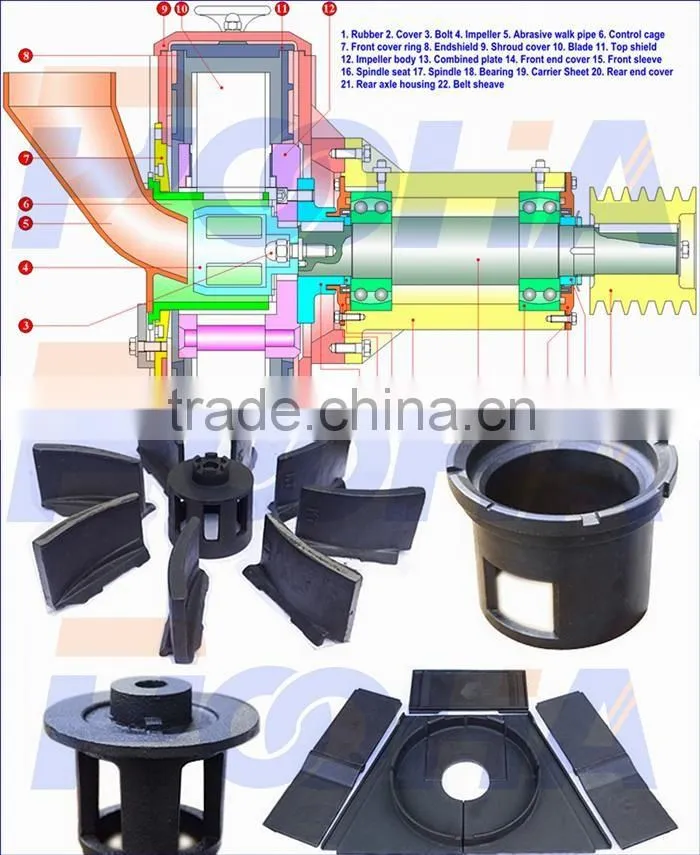

 The blast wheels as dual disc structure, the inflow of good performance projectile, propellant large unit power, the shot blasting impeller connected to the motor, compact structure and reasonable layout is reasonable, easy maintenance.

Machine Parts

Original: China

These parts are a major component of the blasting, and the shot blasting  is the core of the shot blasting machines .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
customer customization
Weight
3.5-4T



Packaging Details
If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
variable size
Weight
indefinite



Packaging Details
according to the characteristics of the component,there is the best package.
Related Products
GN/SNB rubber type shot blasting machine

Q37 series shot blasting machine

roller shot  blasting machine
FAQ
the questions:

Q1:What are the advantages of your company let us choose your product?



Q2：Will you deliver the right goods as ordered? How can I trust you?






Q3：Do you sell only standard machines?


Q4: Do you have after sales support?

the answers:
A1：We have a good reputation, good quality products, excellent after-sales service system, the latest technology support.
A2: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
A3：No,most of our products are customized according to customer requirements.
A4:Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

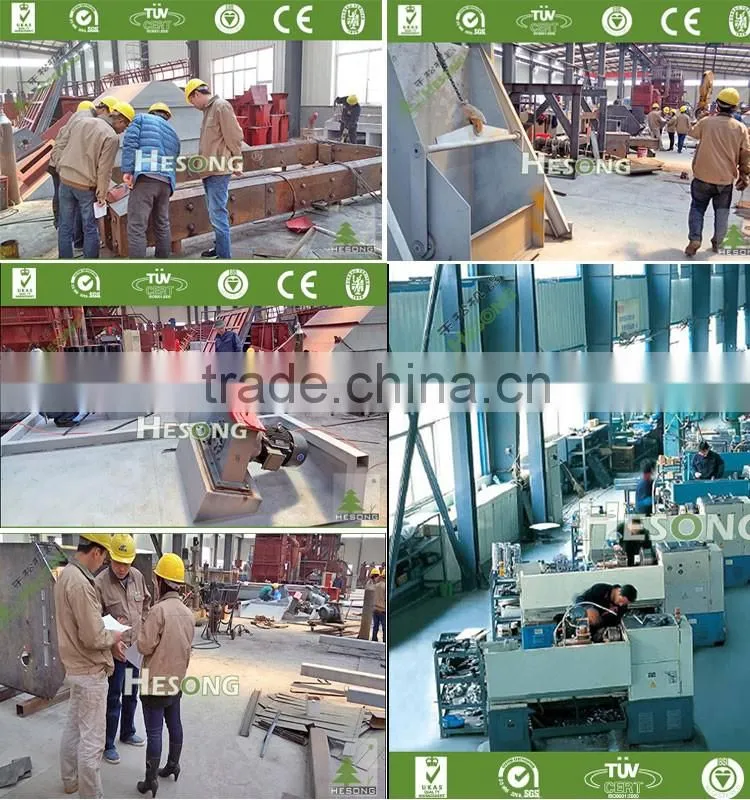

Our Company
Markrt
Our company has a global marketing systemand and products are exported to 49 countries of the world .
Employee
Our company has 20 professional engineers and many staffs in our Qingdao Foundry Machine Co.,Ltd.

Company

Our company has 50 years of experience in the manufacture of shot blasting machines aspects.
