Surface Blast Machine Chain Ring Chain Shot Blasting Machine

Surface Blast Machine Chain Ring Chain Shot Blasting Machine thumbnail-1
Surface Blast Machine Chain Ring Chain Shot Blasting Machine thumbnail-2
Surface Blast Machine Chain Ring Chain Shot Blasting Machine thumbnail-3
Surface Blast Machine Chain Ring Chain Shot Blasting Machine photo-1
Surface Blast Machine Chain Ring Chain Shot Blasting Machine photo-2
Surface Blast Machine Chain Ring Chain Shot Blasting Machine photo-3
US$ 1 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
KNNJOO
Contact Supplier Request Quote Chat Now
Qingdao Qingzhu Foundry Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name KNNJOO
Model Number Shot Blasting Machine
Feature Critical Cleaning / Residue Free, Non-Ionic, Rust / Corrosion Inhibitor
Fuel Electric
Certification CE, Other, CE, BV TUV SGS ISO9001
Use Burnishing, Container / Bottle Cleaning, Deflashing, Descaling / Stripping
Cleaning Process Other, Abrasive
Cleaning Type Clean-In-Place (CIP)
Industry Used Electronic Industry
Material Metal / Coil
Power(W) Customizd
Dimension(L*W*H) Depend
After-sales Service Provided Engineers available to service machinery overseas
Product Description

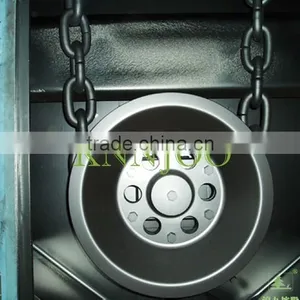

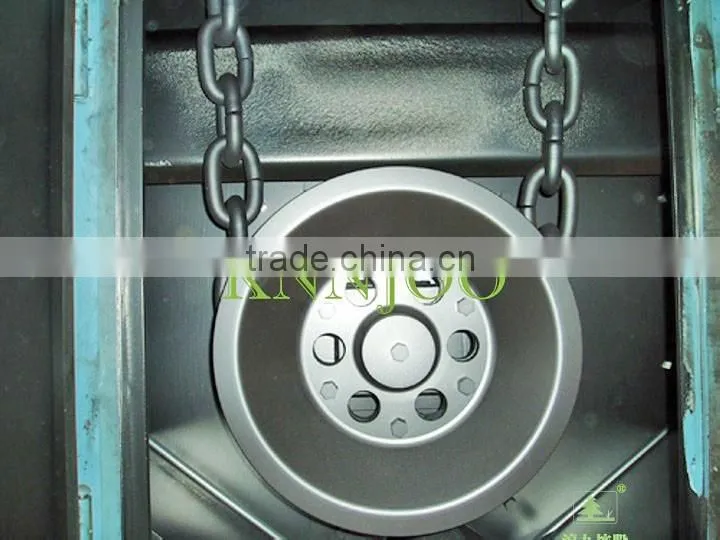

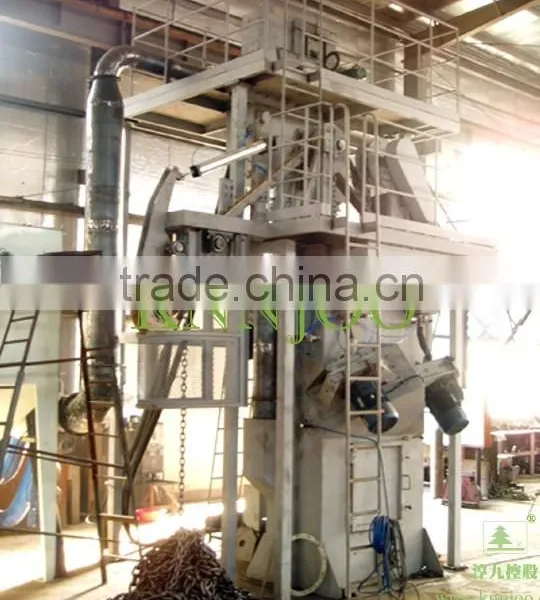

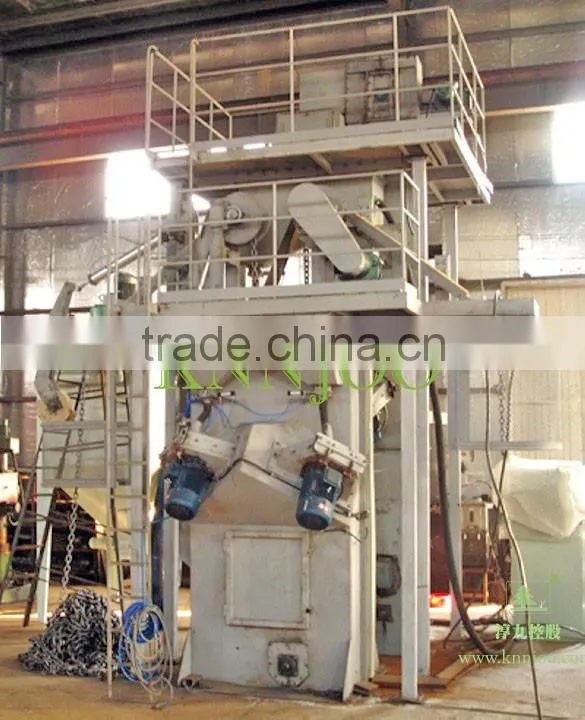

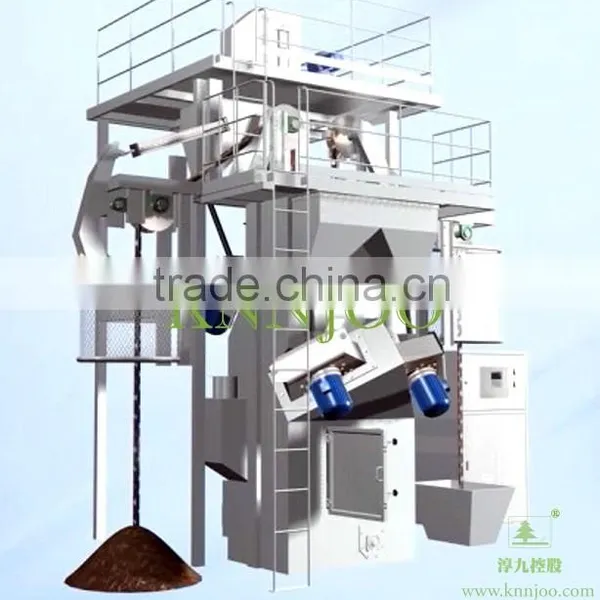

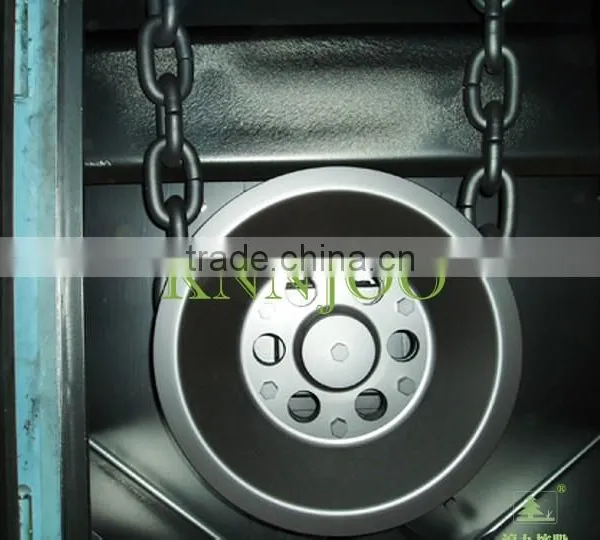

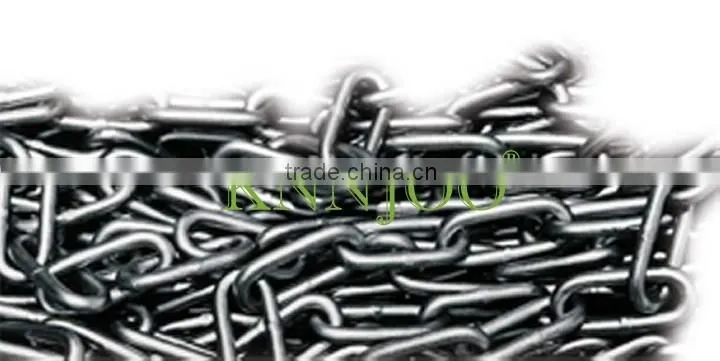

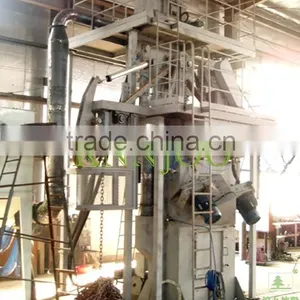

Ring chain type shot blasting machine suitable for chain, chain ring and other products for surface cleaning and blasting strengthened to remove welding slag, scale the workpiece surface; metal surface to achieve the primary, and eliminate stress and improve the effect of surface coating adhesion; and of using shot blasting process on the surface of said work to increase stress and improve fatigue strength, shot blasting to achieve the purpose of strengthening. In order to ensure strict product design, rational layout, all with three-dimensional solid simulation design.

This machine has the follows characteristics：

◆Germany WHEELBRATER hurricane turbine technology to produce high-speed projectile direct coupling blast wheel. Abrasion resistance increased by 60%, 50% reduction in maintenance costs. Special sub-pill projectile structure to maximize the utilization of 98%, only 80% of the ordinary shot blasting, in the mainland, the most technologically advanced.
◆Greatly improving the throwing of the workpiece playing effect. Safety and long life.
◆Shot blasting device body and room layout have been determined after the computer three D dynamic simulation projectile.
◆Separation means using the most advanced B-type full curtain pill residue separator, could significantly increase the separation effect.
◆The machine has automatic fault detection device.
◆Multi-level sealing, to completely eliminate the phenomenon of steel shot outside shot, good sealing effect, and long life.
◆Reduce labor intensity.
◆Dust removal system for the two standard configurations: + settling chamber needle felt rapping dust, the second stage may be a pulsed or pulse bag cleaning cartridge filter dust, dust emission concentration is less than 100 mg / m3. Such as wet plus three dust, dust emission concentration is less than 10 mg / m3.

Technique Parameter
Item
Data
Dimension of workpiece
Φ40-Φ155mm
Speed direct coupling blast wheel power
18.5kw×3
Shot amount
300kg×3
Elevator lighting height
60t/h
Elevator power
5.5kw
separator separate/power
6ot/h/3.0kw
Screw conveyor power
4.0kw
Rust quality level cleanliness
Sa2.5 (Swedish Standards) is determined by the roughness of the pellets Specifications
Suitable abrasive
0.8-1.5(melt)
Total power
80kw (Specific power to meet the requirements shall prevail)
Outline dimension/Covers
See program general view

More information,please contact us.

Our company
Our company is a set research, development, production, operating as one of the industry entity. Engage shot blasting machine industry more than forty years, has a strong research and development, advanced production technology, perfect detection means, scientific management system. As a professional manufacturer of shot blasting machines, industry, technology, quality, and level of automation in the domestic industry with the advanced level. The company's main products are bar shot blasting machines, road shot blasting machine, hook type shot blasting machine, crawler shot blasting machine, through shot blasting machine and so on.
Inorder to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing
