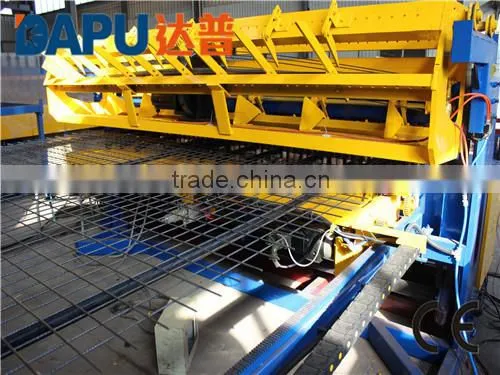

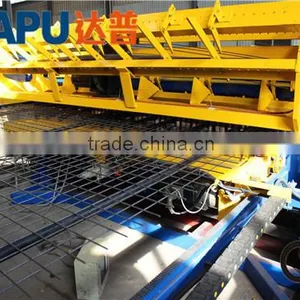

Welded wire mesh panel machine 3-6mm
Welded wire mesh panel machine 3-6mm
1. Fence mesh welding machine is integrative welding machine, do without cutting edge (save material), adjustable of distance of Warp thread, input the distance of weft thread to computer, any character can be reach.
2. Our company developed weft putting in device, it make the putting in better than before, and we have apply the patent for this device.
3. Main usage: welding of fence mesh for railway, highway, bridge and building etc.
Welded wire mesh panel machine 3-6mm
Model |
DP-FP-2500A |
Wire diameter |
2.5-6mm |
Longitude wire space |
50-300mm |
Cross wire space |
25-300mm |
Mesh width |
Max.2.5m |
Mesh length |
Max.6m |
Welding electrodes |
48pcs |
Longitude wire feeding |
Pre-straightened&pre-cut |
Rated electrical power |
85kva*6 pcs |
Cross wire feeding |
Pre-straightened&pre-cut |
Overall Size |
8.4*3.2*1.7m |
Weight |
4200kg |
Welded wire mesh panel machine 3-6mm
For more information, please contact:
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Wechat: dapumachine
Mobile: 0086-15930181601 (whatsapp)
Inquiry now, I will reply at first time.
