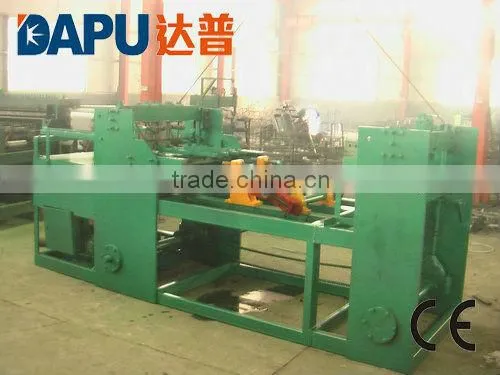

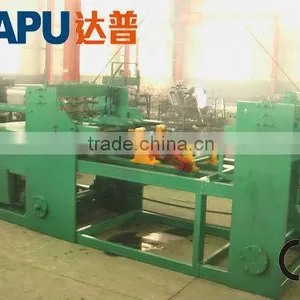

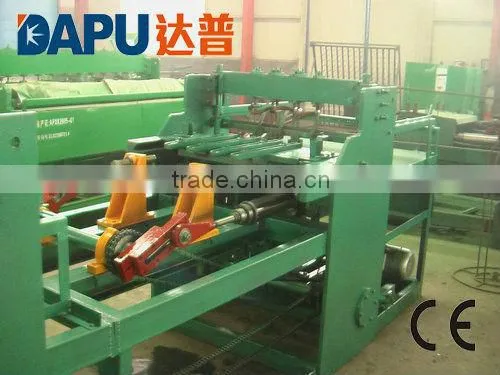

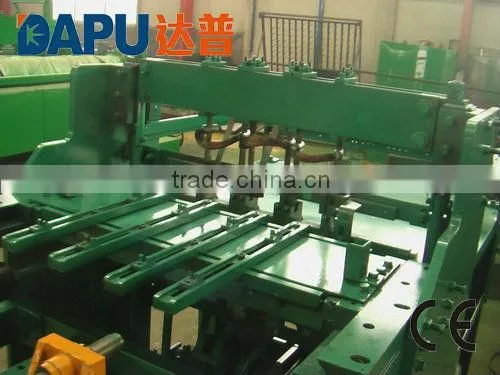

Brick force mesh welding plant
Machine Description:
The machine can make the brick force for construction. The finished brick force is in rolls and the machine can output three brick force rolls at the same time. It is easy to operate and maintain. The brick force is used in the brickwork reinforcement. It can be black brick force or galvanized brick force.
Brick force mesh welding plant
Model |
DP-5A/100 |
Line wire diameter |
1.6-3mm |
Cross wire diameter |
1.6-3mm |
Line wire space |
75mm;115mm;230mm |
Line wire No. |
6 |
sh width |
1000mm |
Cross wire space |
300mm |
Mesh roll length |
25m |
Line wire feeding |
Wire coils |
Cross wire feeding |
Pre-straightened&pre-cut |
Max.welding speed |
20 rows of cross wires/min |
Mesh output form |
3 mesh rolls at the same time |
Wire material |
Mild steel wire, galvanized wire |
Brick force mesh welding plant
