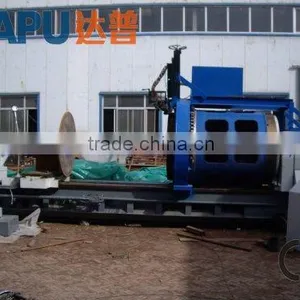

Help CenterWedged Wire Screen/Johnson Pipe/Filter Tube/Mineral Sieve/Griddle Mesh Welding Machine
Related Products
-
Filter Screen Mesh Welding MachineUS$ 30,000 - 90,000MOQ: 1 Set -
Wedged Wire Screen Basket Welding MachineUS$ 10,000 - 70,000MOQ: 1 Set
-
Automatic Griddle Filter Mesh Welding Machine FactoryUS$ 10,000 - 78,000MOQ: 1 Set
-
Wedged Wire Water Well Screen Welding MachineUS$ 18,000 - 78,000MOQ: 1 Set
-
Water Well Screen Mesh Welding MachineUS$ 50,000 - 90,000MOQ: 1 Set
Specifications
Wedged wire screen/Johnson pipe/Filter tube/Mineral sieve/Griddle mesh welding machineV-wire dia:2-5mm
Tube dia:30-1200mm

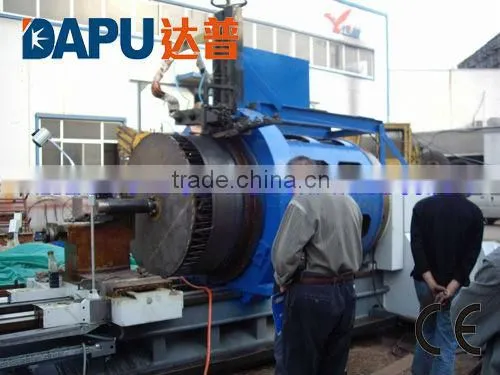

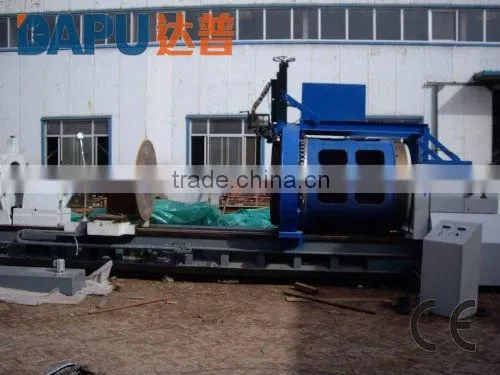

Wedged wire screen/Johnson pipe/Filter tube/Mineral sieve/Griddle mesh welding machine
Features: This machine are combined by CD61100 lather, welding control cabinet, transformer roller and wire press unit, it has strongpoint of welding hole distance.

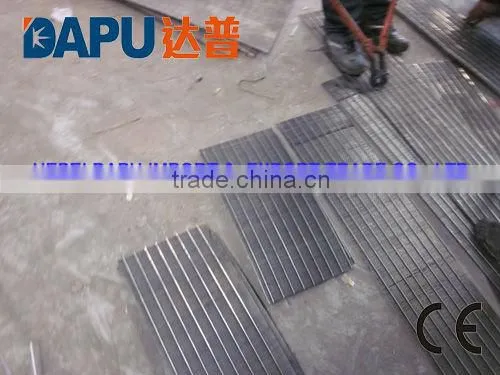

Usage: the welding joint of mineral filtrating mesh, coal washing mesh and centrifugal basket
Main Parameter:
Wire diameter:2~5mm(Through V-shaped wire machine to flat,round,triangle and ladder. |
Slot distance: ≥0.25mm---the diameter of canister 30~400mm |
≥0.7mm---the diameter of sieve 400~600mm |
≥1.0mm---the diameter of sieve600~1200mm |
The diameter of the canister: 30~1200mm |
The length of the canister: ≤6m |
Rated voltage:380V; 50Hz; 3Phase(according to the customers’ requirement) |
Size:9.6m*1.2m*2.3m(L*W*H) |
Weight: 9T |
|
Accessorial parts: electric control cabinet; V-shaped wire machine; wire line rolling machine Wire wheels; wire straightening and cutting machine; flatten mesh machine Plasma flame cutting machine |
Notice:1, It has two servo-motor, one is rotation; the another is drawing.
2,The material is low-carbon galvanized wire.
3,It adopts CNC control systerm.
Accessorial Parts:
V-shaped wire machine; wire rolling machine; straightening&cutting machine; electric control cabinet; flatter mesh machine; cutting mesh machine
Note: Two motors, one for drawing mesh 2kw, one for rolling the mould 3kw
After-sale service:
1.We can offer installation and train the workers for the customers.
2.Guarantee time:one year since the machine was installed at buyer's factory but within 18 months against B/L date.
3. We can help design the layout of the machine placed in the factory.
