Help CenterMetal Tube Filter Welding Machine
Related Products
-
Cylinder Screen Welding MachineUS$ 30,000 - 90,000MOQ: 1 Set -
High Strength Wedged Wire Screen Mesh Welding MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Curve Screen Mesh Welding MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Stripe-seam Screen Packs Mesh Welding MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
High Strength Wedge Wire Screen Welding MachineUS$ 60,000 - 90,000MOQ: 1 Set
Specifications
Metal tube filter welding machine1.Wire diameter:2-5mm
2.Tube diameter:60-1200mm
3.Tube length:6000mm
4.ISO9001

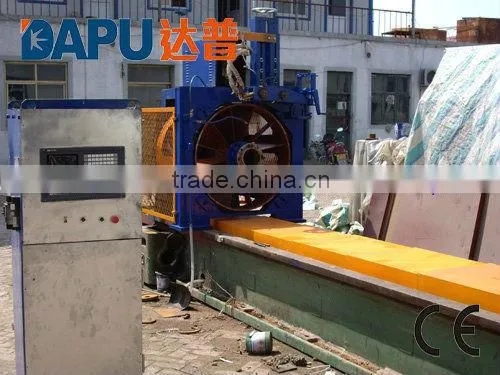

Metal tube filter welding machine

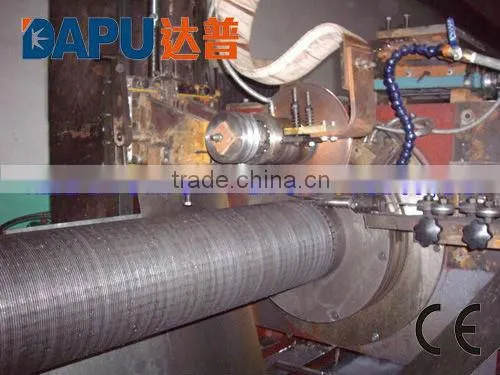

Metal tube filter welding machine
Characteristic
1.split-hair accuracy of welding, control for both axis, servo-feed
ntrol system: Panasonic form Japan
3.Servo-feeds and servo-drivers: Panasonic from Japan
4.ball- screw unit: ABBA from Taiwan
5.linear slider bearing: South Korea
Technical parameters
1.wedge wire screen diameter: 100—400mm
2.wedge wire screen length: max 6000mm
3.suitable wire: stainless steel or carbon steel, diameter: 2.5—5.0mm
4.slot (aperture/ space between welding lines): 0.2—16mm
5.welding precision: if wire diameter tolerance is within 0.01mm, welding precision will be within 0.04mm
6.welding speed:6—30 rpm adjustable based on tube diameter
7.welding transformer power: AC100KW
8.driving motor power: servo motor (3kw,2kw,1.5kw)
9.welding material: stainless steel wire and low carbon steel wire
10.voltage: 3phase, 380v, 50 Hz or according to the customers’ requirement
11.dimension: 13000*1500*3300mm
12.weight: 10t
Metal tube filter welding machine
After-sales service: We offer installation and train the workers for the customers.
Our guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date
