Home > Transportation > Trailer > Truck Trailer > Side Wall Trailer for Logistics Side Wall Trailer

Side Wall Trailer for Logistics Side Wall Trailer

Name: Side Wall Trailer for Logistics Side Wall Trailer
Brand: SHENGRUN
SKU: 124907565

US$ 8,000 - 13,000 MOQ: 5 Units

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ccc iso9001

Shandong Shengrun Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN or QINGDAO port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ccc iso9001

Size 13000 X 2500 X 3600 mm

OEM No. 370832228003534

Max Payload 40T

Place of Origin Shandong, China

Brand Name SHENGRUN

Model Number SKW9408ccya

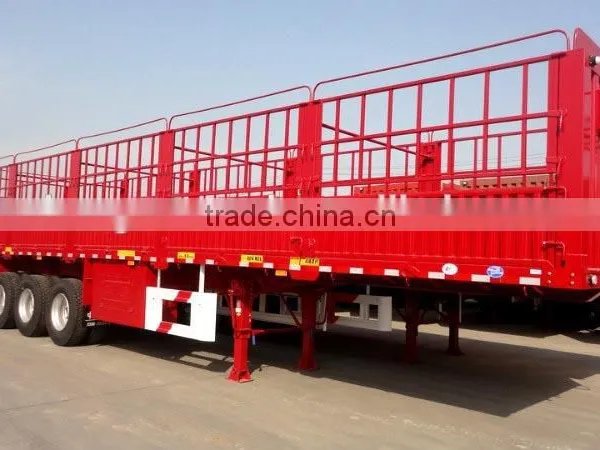

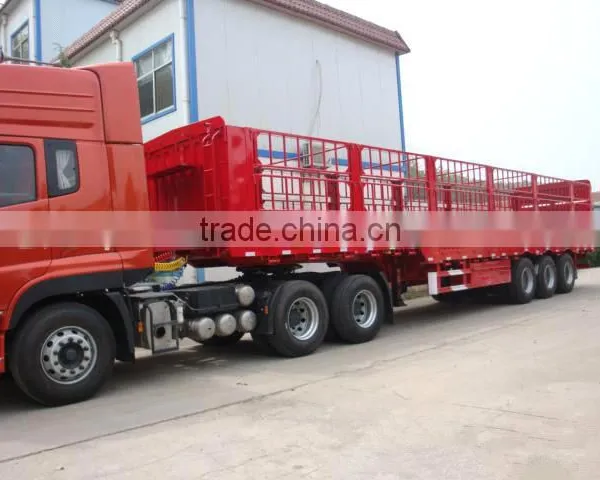

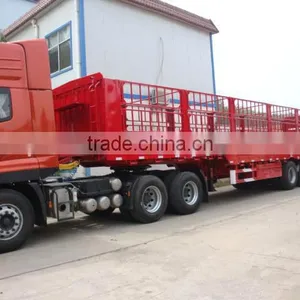

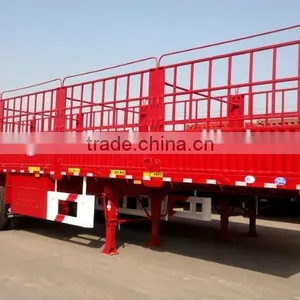

Tri-axle fence side wall semi trailer

Product Description:

Product Information
Product	3 axle fence trailer stake truck
Brand Name	Shengrun
Chassis Model	fence trailer stake truck
Place of Origin	Shandong, China
Color	Any color will be available
Product Specifications
Thickness(mm)	Bottom: 3mm, Side: 2mm
Function	transport merchandise like animal, vegetable.
Overall dimension	13000 X 2500 X 3600 mm
Tare Weight(KG)	6500
Loading Weight( KG)	40000
Axle Brand	FUWA 13TON Axle
Axle Number	Three
Suspension system	Standard Mechanical suspension
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Platform plate	3 mm Diamond plate
Tire Type and quantity	11R22.5 12units
Traction Pin	90mm
Spare Wheel Bracket	2 pieces
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard Landing Gear	According to customer’s requirement
	Chinese standard brand 28ton external
