Specifications

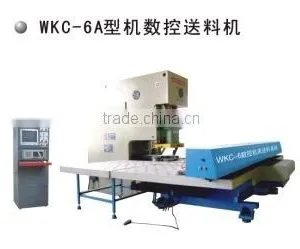

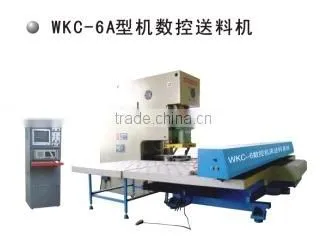

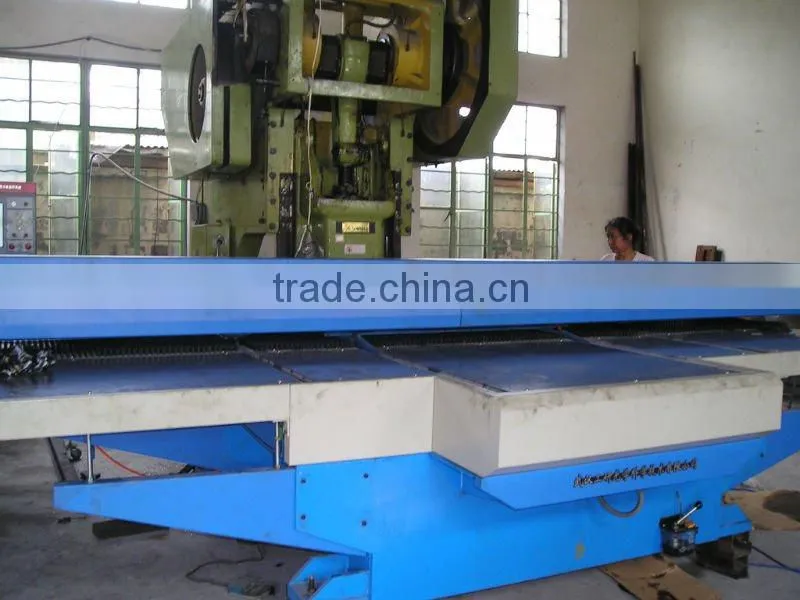

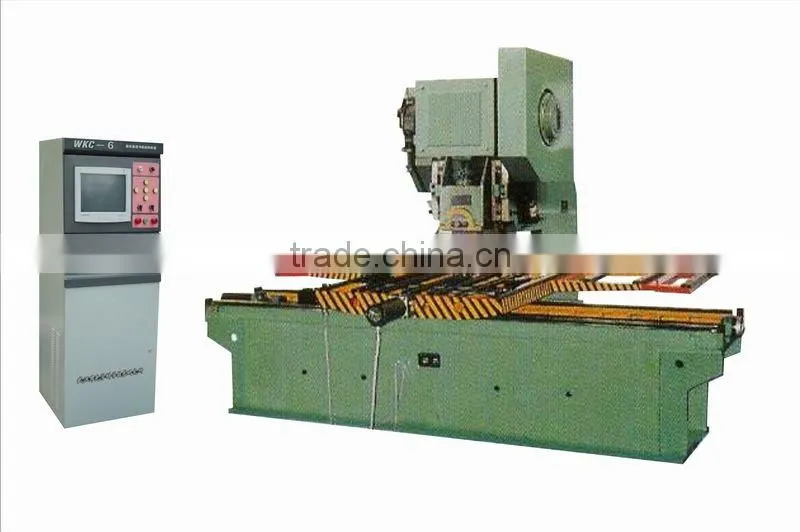

CNC feeding table for PunchingThe machine has CNC programing system and AC servo system in windows. Automatic processing
CNC PUnching Table, CNC feeding table for Punching
Scope, Specification and Standard feature:
1) Effective stroke:2500×1250mm(X×Y), This is Max. sheet size for punching in first locating too. It's capable to punching 2500 wide sheet by means of turning around the sheet in second locating and the system assures position accuracy automatically.
2) Accuracy: ±0.1mm for distance between holes,Center linearity of holes: ±0.1mm.
3) Feed Speed: 20 m/min,
4) overall Dimension: 4200×2400×820 mm.
5) Casting Frame, Tempered.
6) linear guide way and precision ball screw.
7) Table surface with balls or nylon brushes.
8) Pneumatic/manual Clamps(optional).
9) YASKAWA actuating motor.
10) One (1)Set Electrical Control and Control cabinet
11) Control System DOOHE3.0. The system is original created, which will be upgraded periodically, and allow automatic conversion and punching from AutoCAD.
12) Automatic reposition function, better for large volume production.
13) Control Cabinet (Main Operation Desk), with industrial PC and display
14) Power Supply: 7 KVA 380V/3 ph, 50Hz.(In accordance with power supply on site, Please confirm when ordering )
