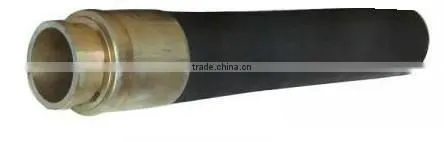

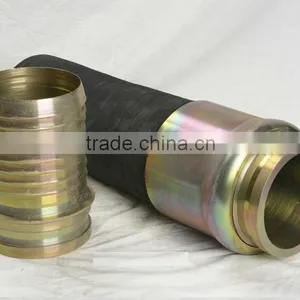

Help CenterHot Sale Concrete Pump Hose Manufacturer
Related Products
-
2"- 5" Inch Rubber Hose Use in ConcreteUS$ 1 - 10MOQ: 10 Pieces -
Cheap Rubber Hose Pipe for Concrete/shorcreteUS$ 1 - 10MOQ: 10 Pieces
-
High Pressure Hydraulic Rubber Hose for Concrete PumpUS$ 1 - 10MOQ: 10 Pieces
-
High Wear Resistance 85 Bar Concrete Pump Rubber Hose With 4 Wire LayerUS$ 40 - 50MOQ: 10 Rolls
-
Concrete Spare Parts Rubber End HoseUS$ 40 - 50MOQ: 10 Rolls
high quality rubber hose , steel hoses and fabric hoses, available in size 2" to 5", used on concrete pumps or shotcrete pump

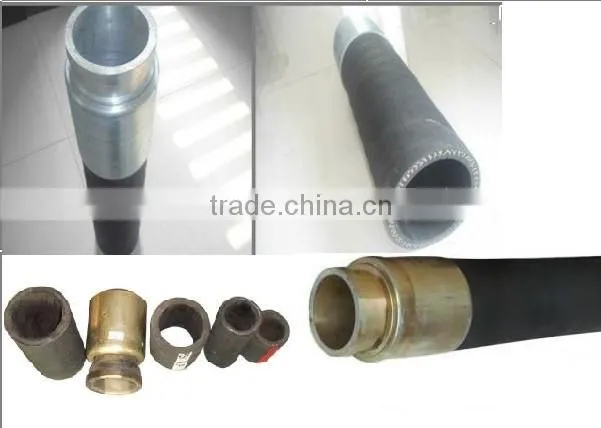

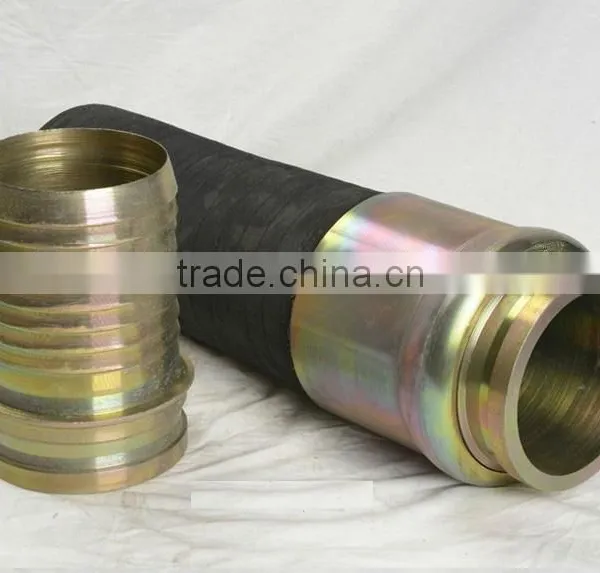

There are two kinds of rubber hoses, steel hoses and fabric hoses, available in size 2" to 5", installed in concrete pumps and shotcrete pumps respectively.
Fabric hose
Spec. |
Inner diameter (mm) |
Wall thickness tolerance (mm) |
Outer diameter (mm) |
Working pressure (bar) |
Bursting pressure(bar) |
Bend radius (mm) |
Weight(kg/m) |
2" |
51±0.7 |
11.5±0.7 |
74±1 |
55 |
220 |
200 |
2.8±0.2 |
2.5" |
63.5±0.8 |
12±0.7 |
88±1 |
55 |
220 |
250 |
3.7±0.3 |
3" |
76±1 |
14±1 |
104±1.2 |
55 |
220 |
270 |
4.9±0.4 |
3.5" |
89±1 |
15±1 |
119±1.2 |
55 |
220 |
290 |
5.8±0.4 |
4" |
102±1 |
16 |
135±1.2 |
55 |
220 |
300 |
7.4±0.4 |
4.5" |
114 |
16±1 |
148±1.5 |
55 |
220 |
320 |
8.5±0.5 |
5" |
127±1 |
16±1 |
159±1.5 |
55 |
220 |
360 |
9±0.5 |
Steel hose
Spec. |
Inner diameter (mm) |
Wall thickness tolerance (mm) |
Outer diameter (mm) |
Working pressure (bar) |
Bursting pressure(bar) |
Bend radius (mm) |
Weight(kg/m) |
2" |
50 | 9±0.75 | 68±1.5 | 85 | 240 | 200 | 2.6 |
2.5" |
64 | 10±0.75 | 85±1.5 | 85 | 240 | 250 | 4.3 |
3" |
76.2 | 12.9±1 | 102±1.5 | 85 | 240 | 270 | 6.1 |
3.5" |
89 | 13.5±1 | 116±1.5 | 85 | 240 | 290 | 8 |
4" |
101.6 | 14.2±1 | 130±1.75 | 85 | 240 | 300 | 9 |
4.5" |
115 | 14±1 | 143±2 | 85 | 240 | 320 | 10.2 |
5" |
127 | 16±1 | 158±2 | 85 | 240 | 360 | 12.5 |
